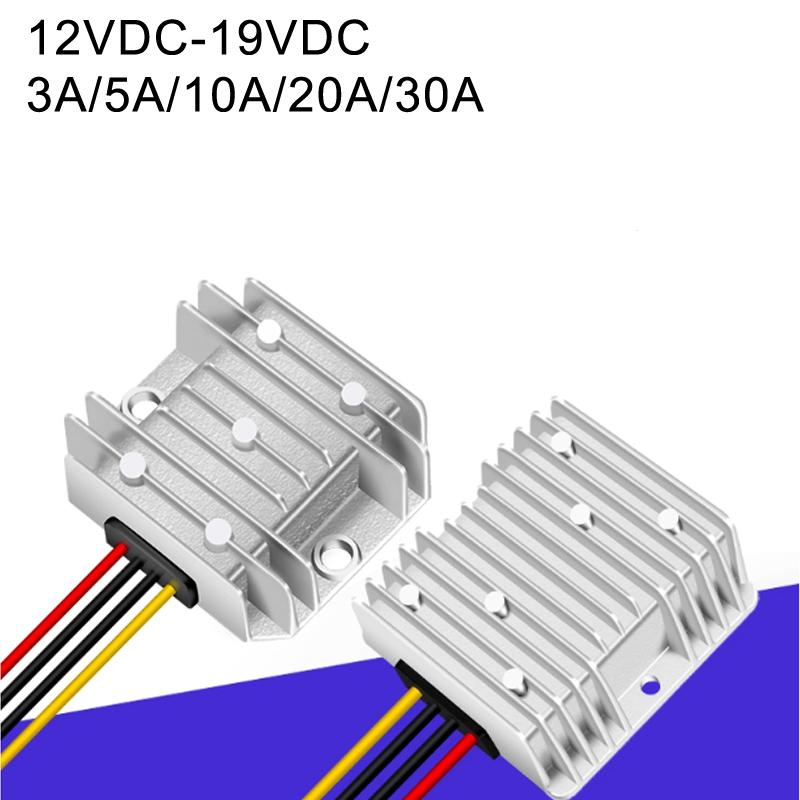

12V to 19VDC 3A to 30A Non-Isolated IP68 High Efficiency Waterproof DC-DC Converter
Features Design meeting ROHS / CE High efficiency: 95% (@12V input) Non-isolated between input and output lnternal capacitor:NCC & NICHICON (high reliability) 100% full load burn-in test Waterproof level IP68 Over voltage, Over load, and Over temperature protections Applications: Electromotor Telecommunications, Logging Vehicles Forklifts and on.
This highly efficient switch mode step-up DC-DC converter converts an input voltage of 12 VDC nominal (range 9 VDC to 16 VDC) to a highly regulated output voltage of 19 VDC nominal. These DC-DC converters is non-isolated (no galvanic isolation between input and output) and meant for use in negative ground systems. Features include waterproof, overcurrent and overvoltage protection.
Over voltage, Over load, and Over temperature protections
Applications: Electromotor Telecommunications, Logging Vehicles Forklifts and on.

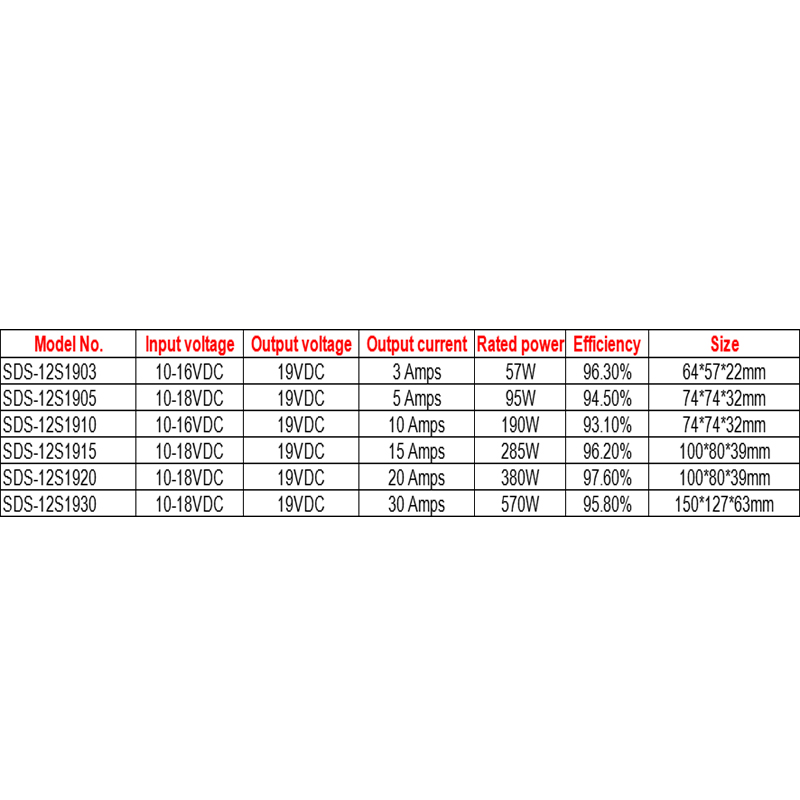

12V to 19V Series
This highly efficient switch mode step-up DC-DC converter converts an input voltage of 12 VDC nominal (range 9 VDC to 16 VDC) to a highly regulated output voltage of 19 VDC nominal. These DC-DC converters is non-isolated (no galvanic isolation between input and output) and meant for use in negative ground systems. Features include waterproof, overcurrent and overvoltage protection.
