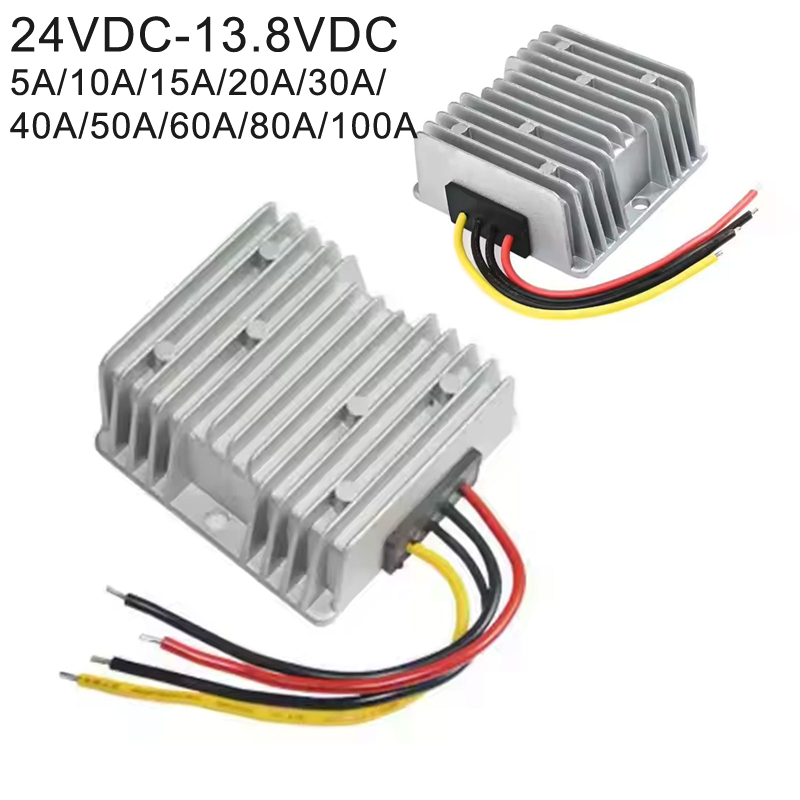

24V to 13.8V 5A to 100A DC DC Step Down Buck Converter DC Power Converter
Features Design meeting ROHS / CE High efficiency up to 97% ( @24V input ) Non-isolated between input and output lnternal capacitor:NCC & NICHICON ( high reliability ) 100% full load burn-in test Waterproof level IP68, 1-3 years warranty Short circuit,Over load, and Over temperature protections Applications: Electromotor Telecommunications, Logging Vehicles Forklifts and on.
This highly efficient switch mode step-dwon DC-DC converter converts an input voltage of 24 VDC nominal (range 18 VDC to 36 VDC) to a highly regulated output voltage of 13.8 VDC nominal. These DC-DC converters is non-isolated (no galvanic isolation between input and output) and meant for use in negative ground systems. Features include waterproof, overcurrent,short-circuit and overvoltage protection.

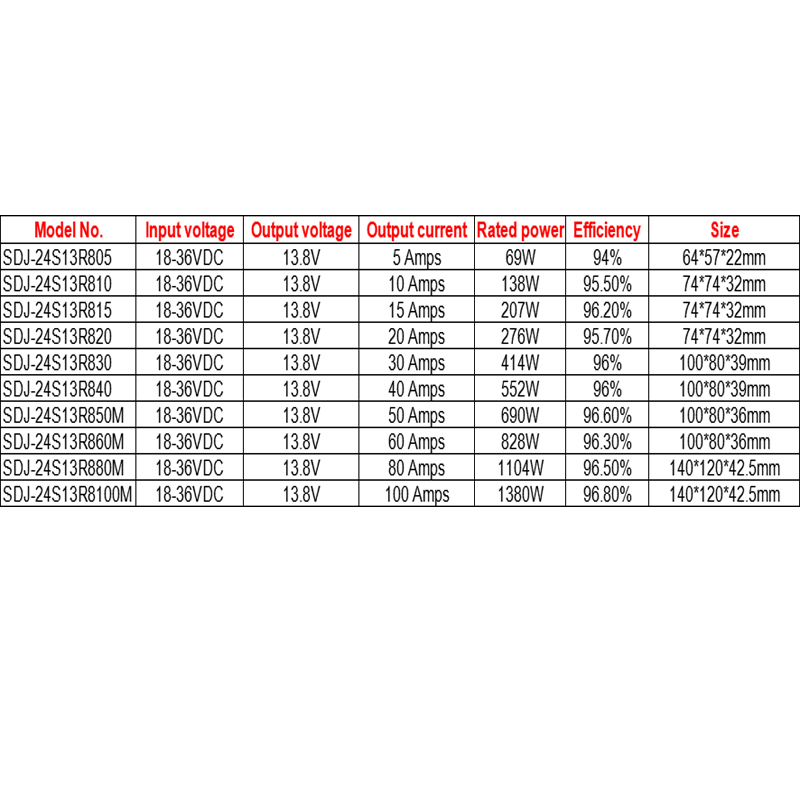

Model No.
Input voltage
Output voltage
Output current
Rated power
Efficiency
Size

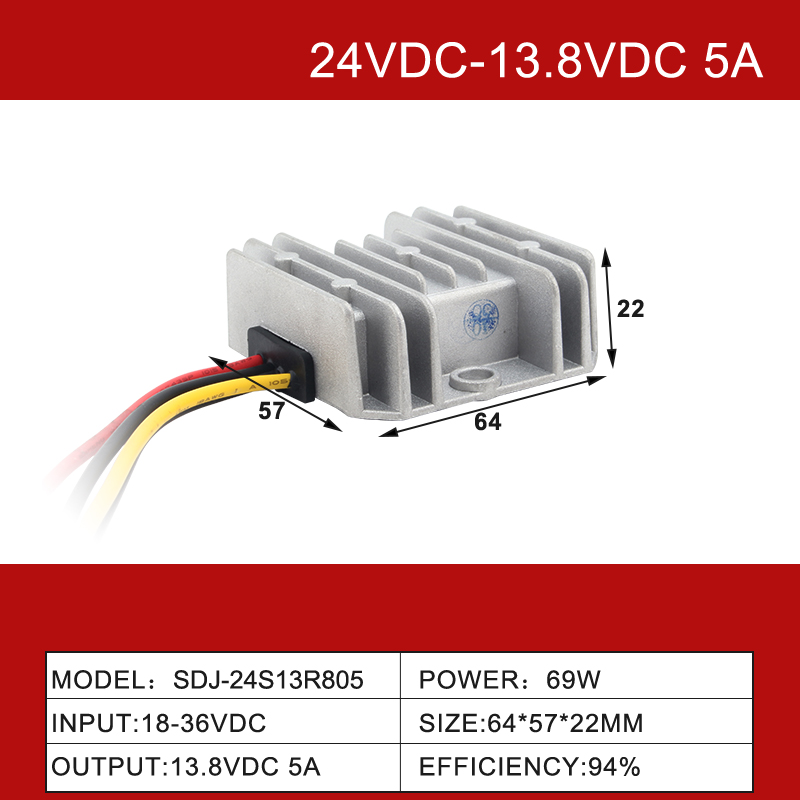

SDJ-24S13R805
18-36VDC
13.8V
5 Amps
69W
94%
64*57*22mm
SDJ-24S13R810
18-36VDC
13.8V
10 Amps
138W
95.50%
74*74*32mm
SDJ-24S13R815
18-36VDC
13.8V
15 Amps
207W
96.20%
74*74*32mm

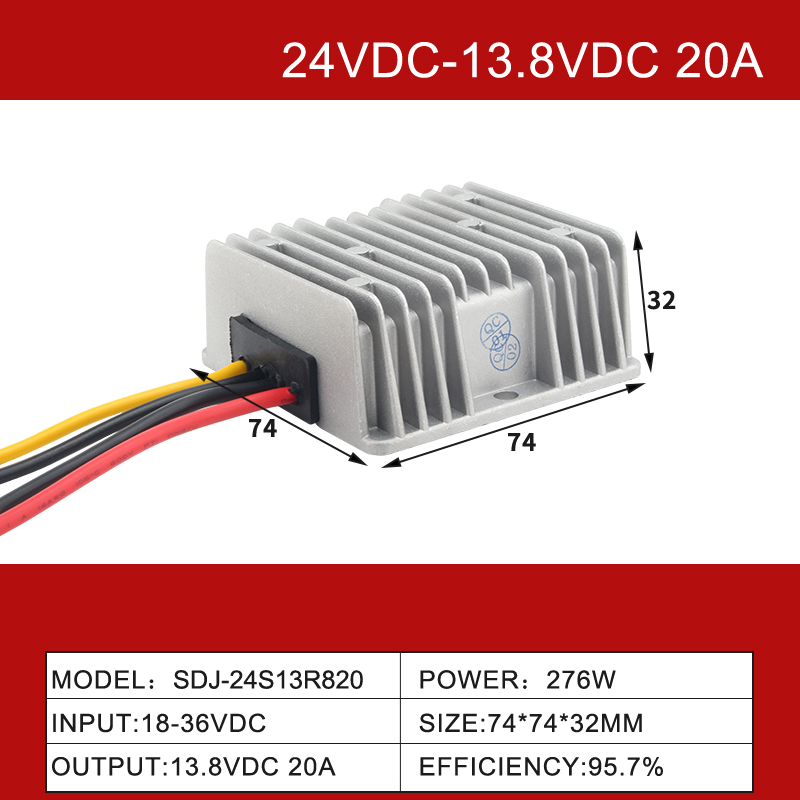

SDJ-24S13R820
18-36VDC
13.8V
20 Amps
276W
95.70%
74*74*32mm
SDJ-24S13R830
18-36VDC
13.8V
30 Amps
414W
96%
100*80*39mm
SDJ-24S13R840
18-36VDC
13.8V
40 Amps
552W
96%
100*80*39mm
SDJ-24S13R850M
18-36VDC
13.8V
50 Amps
690W
96.60%
100*80*36mm
SDJ-24S13R860M
18-36VDC
13.8V
60 Amps
828W
96.30%
100*80*36mm
SDJ-24S13R880M
18-36VDC
13.8V
80 Amps
1104W
96.50%
140*120*42.5mm

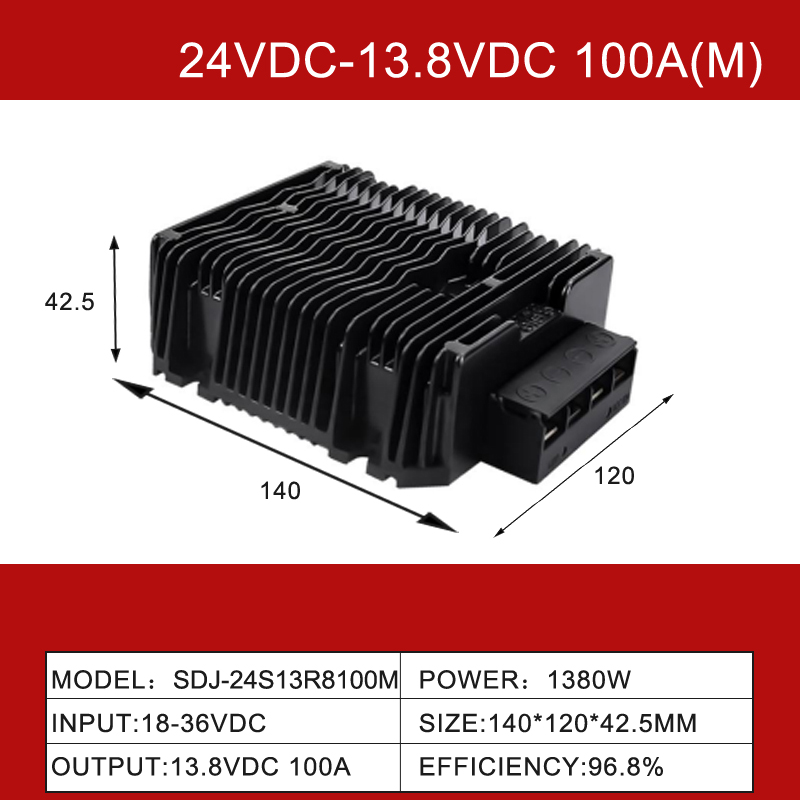

SDJ-24S13R8100M
18-36VDC
13.8V
100 Amps
1380W
96.80%
140*120*42.5mm
More details,please see datasheets.
Features
Design meeting ROHS / CE
High efficiency: 96% ( @24V input )
Non-isolated between input and output
lnternal capacitor:NCC & NICHICON ( high reliability )
100% full load burn-in test
Waterproof level IP68, 1-3 years warranty
Short circuit,Over load, and Over temperature protections
Applications: Electromotor Telecommunications, Logging Vehicles Forklifts and on.
24V to 13.8V Series
This highly efficient switch mode step-dwon DC-DC converter converts an input voltage of 24 VDC nominal (range 18 VDC to 36 VDC) to a highly regulated output voltage of 13.8 VDC nominal. These DC-DC converters is non-isolated (no galvanic isolation between input and output) and meant for use in negative ground systems. Features include waterproof, overcurrent,short-circuit and overvoltage protection.
Model No.
Input voltage
Output voltage
Output current
Rated power
Efficiency
Size
SDJ-24S13R805
18-36VDC
13.8V
5 Amps
69W
94%
64*57*22mm
SDJ-24S13R810
18-36VDC
13.8V
10 Amps
138W
95.50%
74*74*32mm
SDJ-24S13R815
18-36VDC
13.8V
15 Amps
207W
96.20%
74*74*32mm
SDJ-24S13R820
18-36VDC
13.8V
20 Amps
276W
95.70%
74*74*32mm
SDJ-24S13R830
18-36VDC
13.8V
30 Amps
414W
96%
100*80*39mm
SDJ-24S13R840
18-36VDC
13.8V
40 Amps
552W
96%
100*80*39mm
SDJ-24S13R850M
18-36VDC
13.8V
50 Amps
690W
96.60%
100*80*36mm
SDJ-24S13R860M
18-36VDC
13.8V
60 Amps
828W
96.30%
100*80*36mm
SDJ-24S13R880M
18-36VDC
13.8V
80 Amps
1104W
96.50%
140*120*42.5mm
SDJ-24S13R8100M
18-36VDC
13.8V
100 Amps
1380W
96.80%
140*120*42.5mm
More details,please see datasheets.
Features
Design meeting ROHS / CE
High efficiency: 96% ( @24V input )
Non-isolated between input and output
lnternal capacitor:NCC & NICHICON ( high reliability )
100% full load burn-in test
Waterproof level IP68, 1-3 years warranty
Short circuit,Over load, and Over temperature protections
Applications: Electromotor Telecommunications, Logging Vehicles Forklifts and on.
