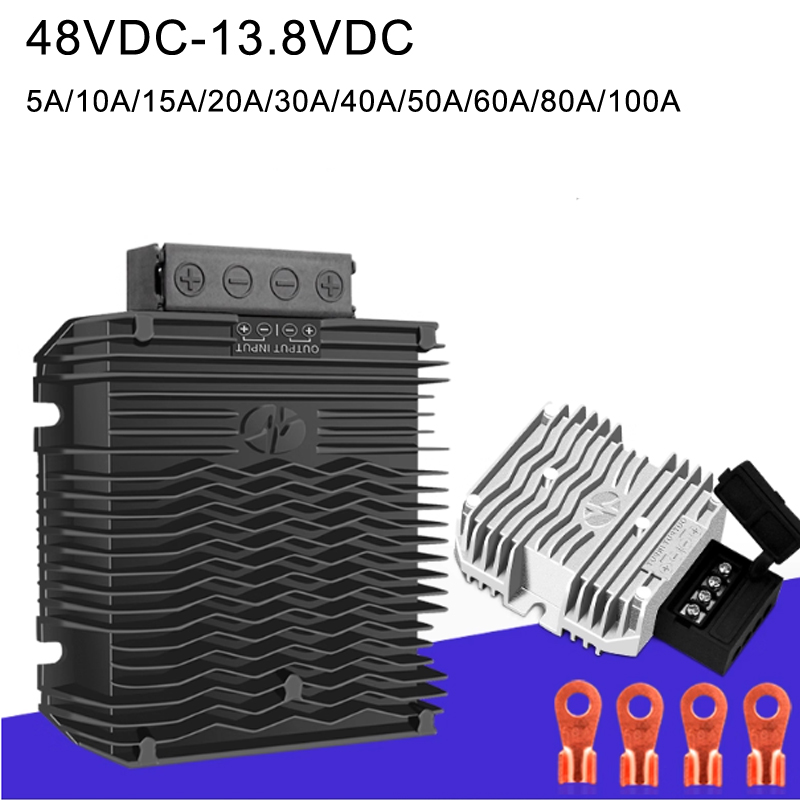

48V to 13.8V Series
This highly efficient switch mode step-dwon DC-DC converter converts an input voltage of 48 VDC nominal (range 35 VDC to 60 VDC) to a highly regulated output voltage of 13.8 VDC nominal. These DC-DC converters is non-isolated (no galvanic isolation between input and output) and meant for use in negative ground systems. Features include waterproof, overcurrent,short-circuit and overvoltage protection.

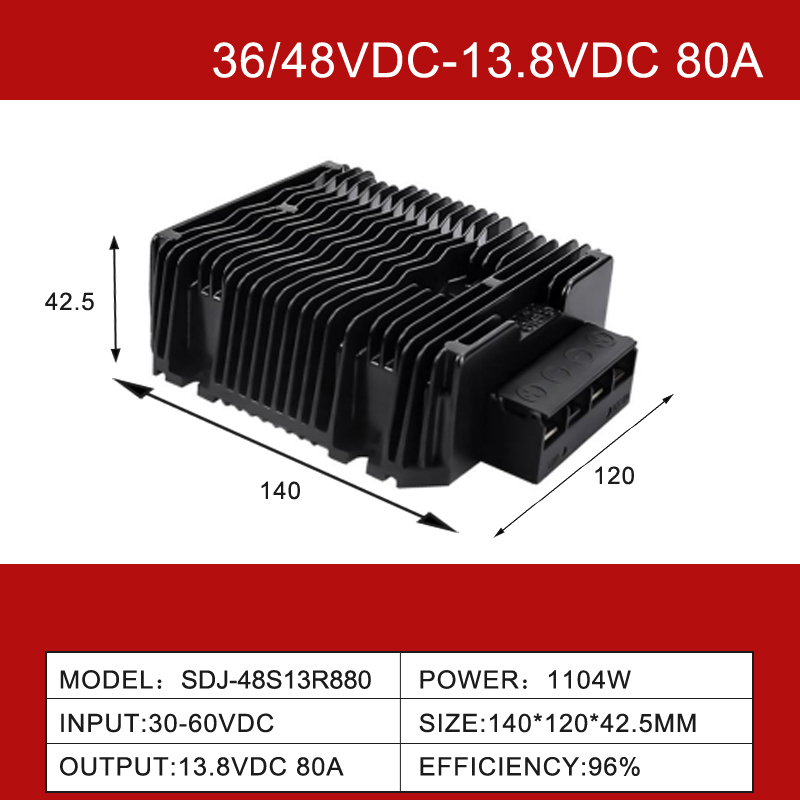

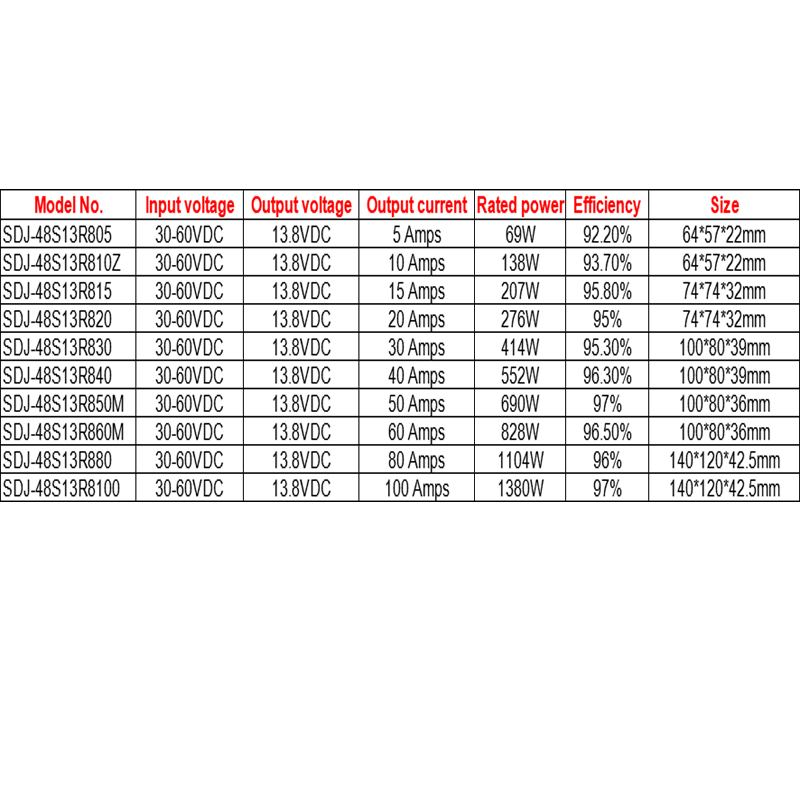

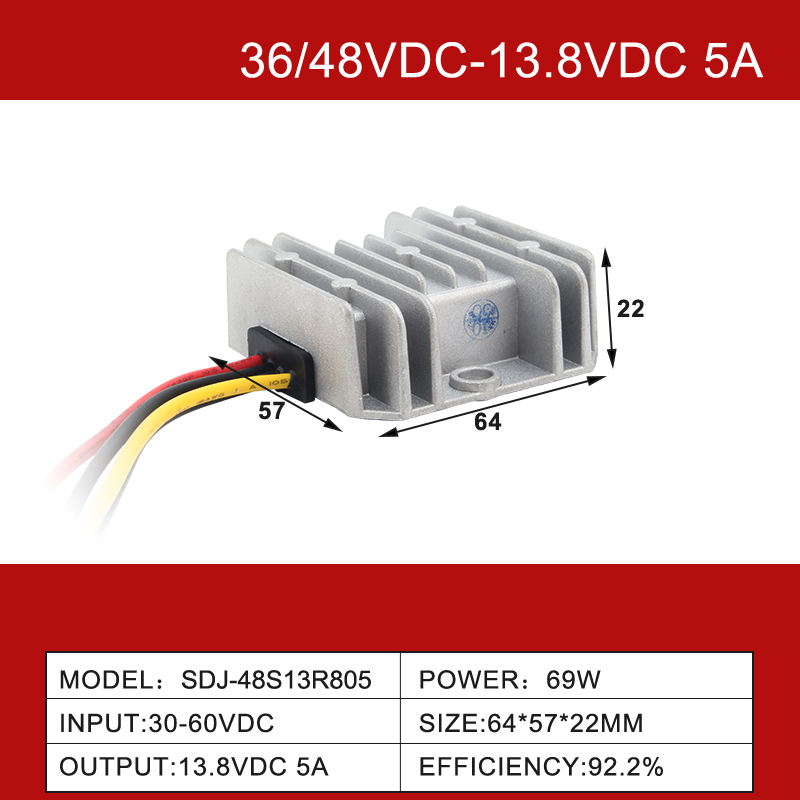

Model No. Input voltage Output voltage Output current Rated power Efficiency Size SDJ-48S13R805 30-60VDC 13.8VDC 5 Amps 69W 92.20% 64*57*22mm SDJ-48S13R810Z 30-60VDC 13.8VDC 10 Amps 138W 93.70% 64*57*22mm SDJ-48S13R815 30-60VDC 13.8VDC 15 Amps 207W 95.80% 74*74*32mm SDJ-48S13R820 30-60VDC 13.8VDC 20 Amps 276W 95% 74*74*32mm SDJ-48S13R830 30-60VDC 13.8VDC 30 Amps 414W 95.30% 100*80*39mm SDJ-48S13R840 30-60VDC 13.8VDC 40 Amps 552W 96.30% 100*80*39mm SDJ-48S13R850M 30-60VDC 13.8VDC 50 Amps 690W 97% 100*80*36mm SDJ-48S13R860M 30-60VDC 13.8VDC 60 Amps 828W 96.50% 100*80*36mm SDJ-48S13R880 30-60VDC 13.8VDC 80 Amps 1104W 96% 140*120*42.5mm SDJ-48S13R8100 30-60VDC 13.8VDC 100 Amps 1380W 97% 140*120*42.5mm
More details,please see datasheet.
Design meeting ROHS / CE
High efficiency: 95% (@48V input)
Non-isolated between input and output
lnternal capacitor:NCC & NICHICON (high reliability)
100% full load burn-in test
Waterproof level IP68, 1-3 years warranty
Short circuit,Over load, and Over temperature protections
Applications: Electromotor Telecommunications, Logging Vehicles Forklifts and on.
