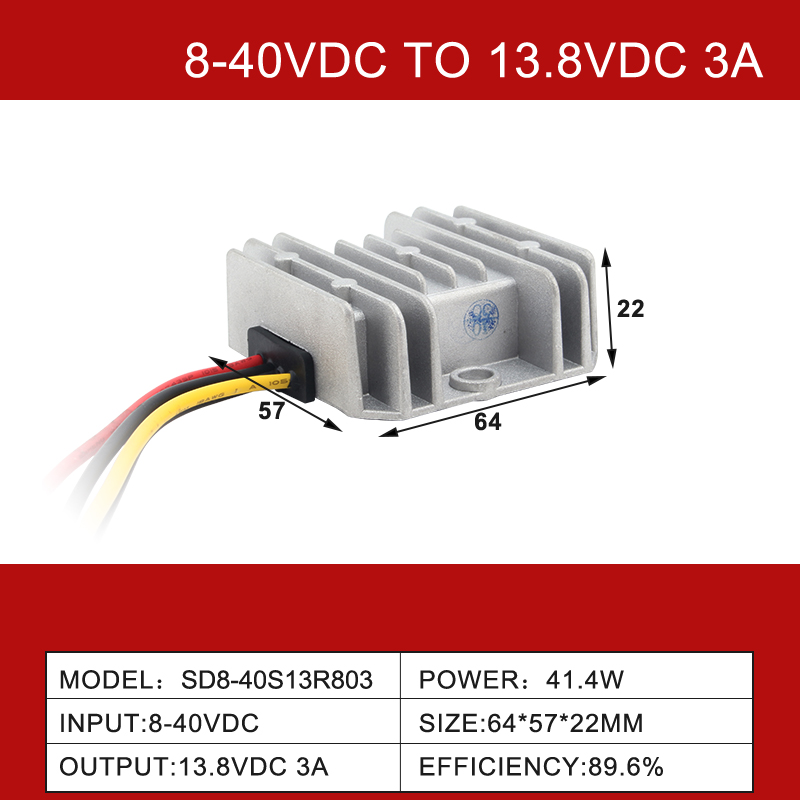

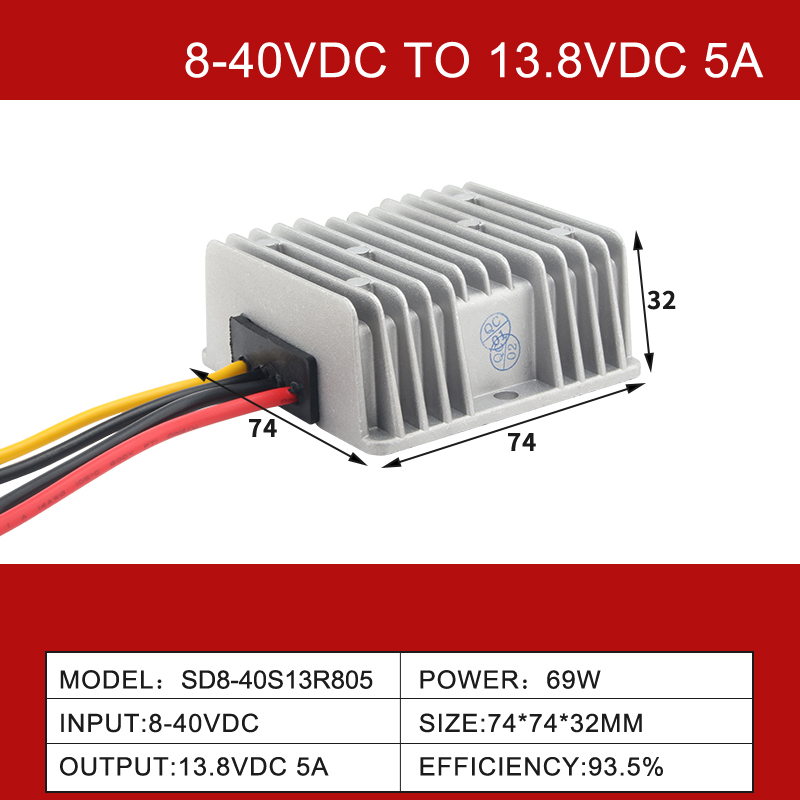

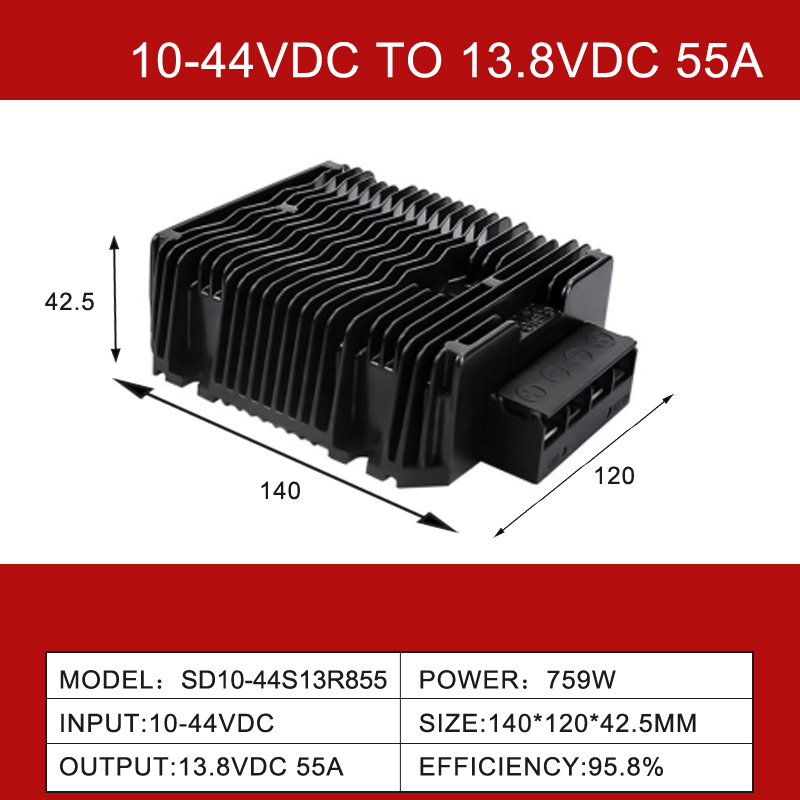

8-40V Input 13.8V 3A-55A Output DC-DC Boost Buck Power Converter
8-40V to 13.8V Boost-Buck DC-DC Power Converters
Features Design meeting ROHS / CE High efficiency: 95% ( @12V input ) Non-isolated between input and output lnternal capacitor:NCC & NICHICON (high reliability) 100% full load burn-in test Waterproof level IP68, 3 years warranty Short circuit,Over load, and Over temperature protections Applications: Electromotor Telecommunications, Logging Vehicles Forklifts and on.
Wide input voltage from 8-40Vdc, Output power ranges from 42W to 760W. This series is eminently suitable for applications requiring stability, and, above all, low energy consumption. To your 13.8 Volt system, these products are also distinguished by high efficiency, together with absolute safety.
Short circuit,Over load, and Over temperature protections
Applications: Electromotor Telecommunications, Logging Vehicles Forklifts and on.

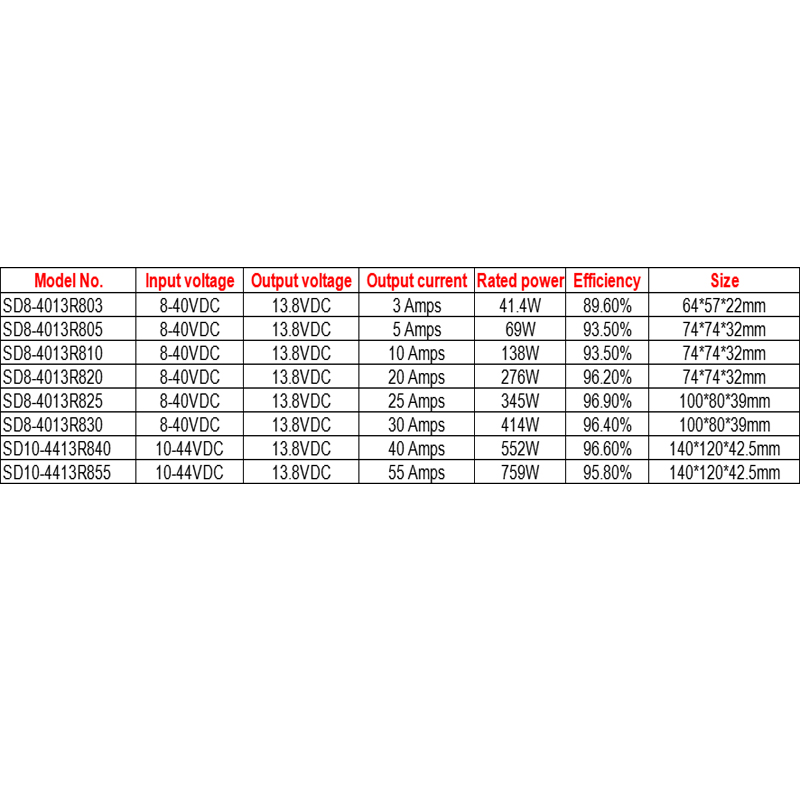

8-40V to 13.8V Series
Wide input voltage from 8-40Vdc, Output power ranges from 42W to 760W. This series is eminently suitable for applications requiring stability, and, above all, low energy consumption. To your 13.8 Volt system, these products are also distinguished by high efficiency, together with absolute safety.
