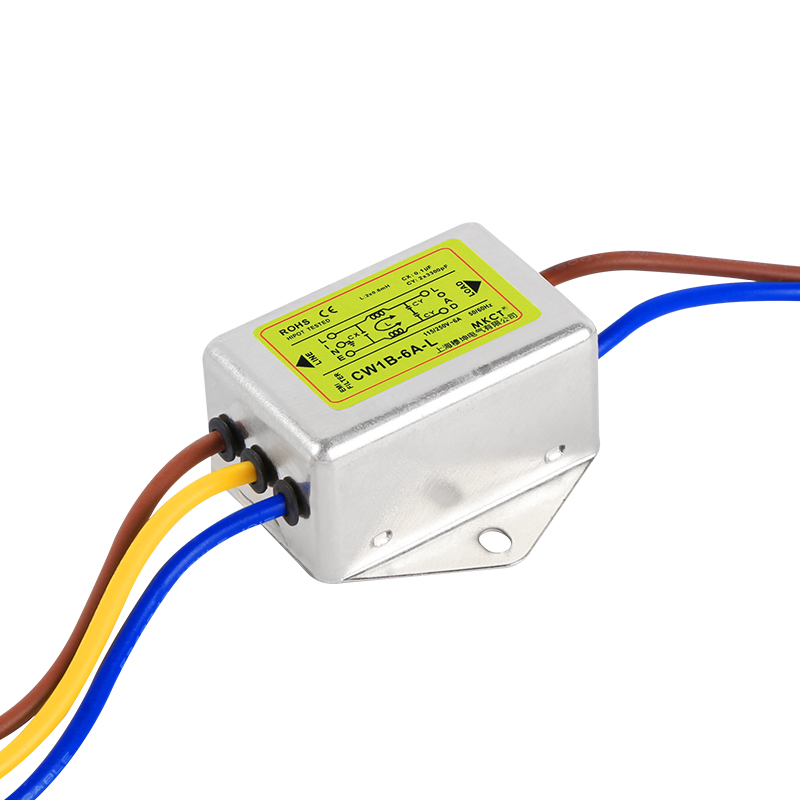

CW1B-1A/3A/6A/10A-L 115/250VAC Line Type Single-Phase EMI Power Filter

Features and benefits

Small size, fast and easy chassis mounting

Various terminal connection styles

Good conducted attenuation performance, applied to environment required low interference suppression

Typical applications

Electrical and electronic equipment

Medical and household equipment

Automation, datacom and electronic data processing equipment

Technical specifications

Maximum continuous operating voltage:250VAC

Operating frequency:50/60Hz

Rated currents:1A – 15A @ 40℃ Max.

High potential test voltage(1 min):Line to Line 1500VDC / Line to Ground 1500VAC

Operation and storage temperature range:-25℃~+85℃ (25/085/21)

Schematic diagram	model	Specs	Current

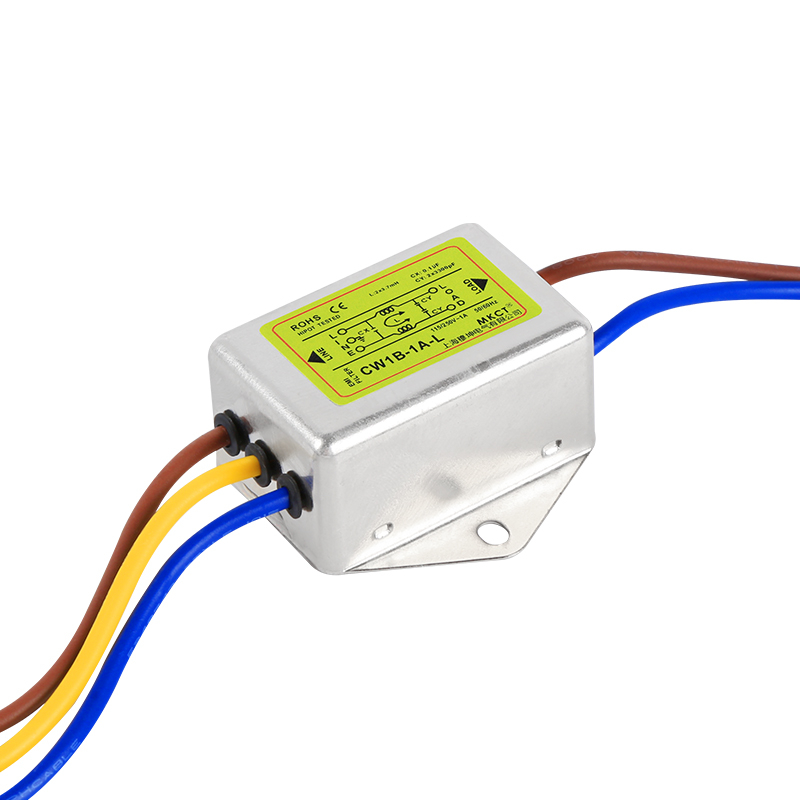

	CW1B-1A-L	Wiring type	1A
	CW1B-3A-L		3A
	CW1B-6A-L		6A
	CW1B-10A-L		10A

More details,please check the datasheet.
