When it comes to achieving reliable and long-lasting LED lighting systems, proper installation is just as important as choosing the right fixtures. LED Driver quality and placement directly impact performance, efficiency, and lifespan, making it essential for facility managers and installers to understand the correct practices. At Zhejiang Ximeng Electronic Technology Co., Ltd., we provide easy-to-install drivers designed for a wide range of LED fixtures, including strip lights, panel lights, and downlights. This guide outlines best practices for LED driver installation to ensure your lighting systems operate safely, efficiently, and with minimal maintenance over time. Following these instructions carefully can prevent common installation mistakes that often lead to overheating, flickering, or premature component failure, saving time and money in both residential and commercial applications.
Safety first: electrical basics and pre-installation checks
Safety is the foundation of any electrical installation, and LED drivers are no exception. Before connecting or mounting a driver, installers should perform essential checks to prevent hazards such as electric shock, short circuits, or fire.
Turn off power at the circuit breaker: Ensure that the power supply to the installation area is completely disconnected. Confirm with a voltage tester before touching any wiring.
Inspect the LED driver and wiring: Check for visible damage, loose connections, or exposed wires. Even minor imperfections can cause operational failures or safety risks.
Verify voltage compatibility: Ensure that the driver’s input voltage matches the available power supply. Our drivers support a wide range of AC input voltages, but double-checking prevents overvoltage or undervoltage issues.
Confirm environmental conditions: Ensure the installation site meets temperature, humidity, and airflow requirements specified in the driver datasheet. Proper conditions prevent overheating and extend operational life.
Plan for emergency access: Position the driver where it can be reached safely for maintenance or replacement without dismantling surrounding fixtures.
Check insulation and grounding: Ensure all metallic parts are properly insulated, and grounding connections are securely installed to reduce the risk of electrical shock or interference with other equipment.
By following these basic safety checks, you establish a strong foundation for long-lasting LED installations. Proper preparation reduces rework and prevents early driver failure, contributing to both safety and efficiency. In addition, documenting your safety checks before installation ensures compliance with local electrical codes and industry best practices.
Mounting and placement best practices
Correct placement is critical for maintaining the driver’s lifespan. LED drivers generate heat during operation, and improper mounting can lead to overheating, reduced performance, or early failure. Consider the following factors for optimal placement:
Ventilation
Adequate airflow around the driver is essential. Avoid enclosing the driver in tight spaces without ventilation. If the driver must be placed inside an enclosure, ensure the enclosure is ventilated and allows hot air to escape. Our drivers are designed with thermal management in mind, but even high-quality drivers benefit from airflow that keeps temperatures within safe operating limits. Installing drivers in vertical orientation or near natural airflow paths can further improve heat dissipation.
Distance from heat sources
Keep the LED driver away from direct heat sources such as lamps, transformers, or machinery that emits significant heat. Excessive heat can accelerate wear on components and reduce efficiency. When planning installation, evaluate surrounding elements and select a mounting location that minimizes thermal exposure. For commercial applications, such as office lighting or warehouse installations, avoid areas where hot air accumulates, like near HVAC exhaust vents.
Enclosure types
Select an appropriate enclosure based on environmental exposure. Indoor drivers may use simple plastic or metal housings, while outdoor installations require waterproof and dustproof enclosures. Understanding the IP rating of your driver is key to proper placement, which we will cover in the following section. Additionally, using reflective or light-colored enclosures can help reduce thermal absorption, keeping the driver cooler for longer life.
Wiring and grounding essentials
Wiring and grounding mistakes are among the most common causes of LED driver failure. Following best practices ensures safe operation and reduces the risk of system faults.
Polarity
LED drivers have positive and negative terminals, and reversing polarity can damage both the driver and connected LEDs. Double-check polarity before powering on the system. Our drivers feature clear markings and standardized connectors for reliable identification and correct wiring.
Connectors
Use connectors rated for the driver’s current and voltage. Avoid using loose, low-quality, or improvised connections. Reliable connectors reduce resistance, minimize heat generation, and ensure consistent power delivery to your LED fixtures. For installations with multiple LEDs or longer cable runs, consider using high-quality screw terminals or plug-in connectors to simplify maintenance.
Strain relief
Securing wires to prevent tension on the driver terminals is critical. Strain relief mechanisms protect connections from mechanical stress, vibration, or accidental pulls. Incorporate cable clamps or grommets where possible to secure wiring. Strain relief is especially important in environments with frequent vibration, such as factory ceilings or outdoor installations near traffic or industrial machinery.
Common wiring mistakes
Connecting multiple drivers in parallel without proper isolation.
Overloading the driver by connecting LED arrays that exceed rated output.
Ignoring manufacturer guidance on wire gauge and maximum run length.
Leaving cables loosely bundled, which can cause overheating or accidental disconnections.
By addressing these wiring considerations, installers can prevent early driver failure and maximize system efficiency. Proper cable management and labeling also simplify troubleshooting and future upgrades.
IP ratings and outdoor installations
IP ratings (Ingress Protection) define the driver’s resistance to dust and water. When installing outdoors or in wet environments, choose a driver with a suitable IP rating. For example:
IP20: Suitable for dry indoor environments.
IP65: Protected against dust and low-pressure water jets, ideal for outdoor fixtures.

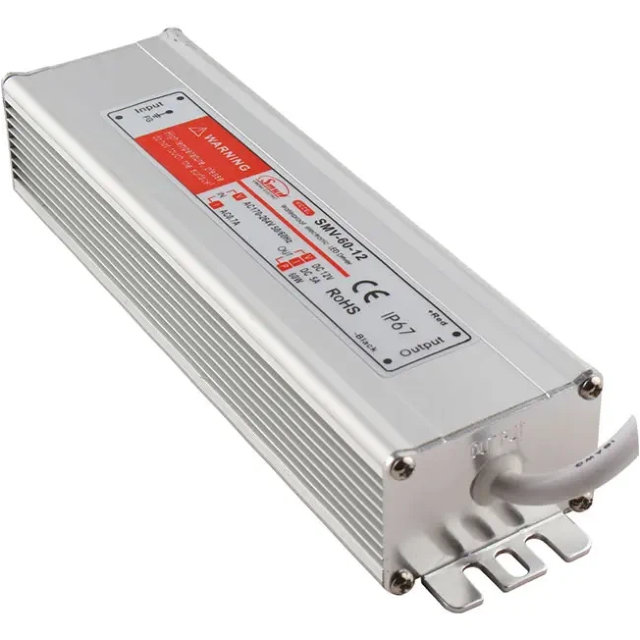

IP67: Fully waterproof for temporary submersion in water.
When installing outdoor lighting, ensure the driver is placed in a well-protected enclosure if it will be exposed to rain or moisture. Positioning and proper sealing are key to maintaining longevity and avoiding damage from environmental exposure. Additionally, consider sun exposure; prolonged direct sunlight can raise internal temperatures, so shading or protective covers may be beneficial.
Testing after installation
Once the driver is mounted and wired, testing is essential to ensure reliable operation.
Voltage and current verification: Measure output voltage and current using a multimeter. Confirm that values match specifications for the connected LED load.
Burn-in testing: Power the driver under normal load conditions for several hours. Burn-in helps identify early-life failures and confirms thermal stability.
Check connections: Inspect all connectors, terminals, and cables for secure attachment. Loose wiring can cause intermittent flickering or heat build-up.
Dimmer compatibility (if applicable): If the installation includes dimming, verify smooth operation across the full range without flicker or noise.
Thermal monitoring: Use a thermal camera or infrared thermometer to check for hot spots. Proper thermal performance indicates that the driver is operating within safe limits.
Testing is not just a final step; it ensures that your installation meets the expected lifespan and performance standards. Incorporating routine maintenance checks can further extend the driver’s life.
Our driver’s installation advantages
Zhejiang Ximeng Electronic Technology Co., Ltd. LED drivers are designed to simplify installation without compromising reliability. Key advantages include:
Easy mounting options: Multiple mounting holes and compact designs allow flexible placement inside panels, ceilings, or track lighting systems.
Wide fixture compatibility: Supports strip lights, downlights, panel lights, and other LED fixtures.
Flexible outputs: Adjustable voltage and current outputs match specific LED requirements, enabling precise brightness and dimming control.
Installer-friendly connectors: Plug-and-play connections reduce wiring time and errors, saving labor costs and minimizing installation risks.
Thermal stability and protection: Built-in protections against overvoltage, overcurrent, and thermal overload enhance longevity.
These features make Ximeng drivers not only high-performing but also convenient for installers, ensuring long-lasting operation with minimal maintenance.
Conclusion
Proper LED driver installation is crucial for extending the lifespan of your lighting systems. By prioritizing safety, ventilation, wiring integrity, and IP-rated placement, installers can avoid overheating, early failures, and unnecessary maintenance. At Zhejiang Ximeng Electronic Technology Co., Ltd., our drivers combine easy installation with flexible outputs suitable for a wide range of LED fixtures, making them a reliable choice for both indoor and outdoor applications. For complete wiring diagrams, installation instructions, or technical support, contact us to access our comprehensive resources and ensure every project achieves long-lasting success.
FAQ
Q1: How far should an LED driver be placed from heat sources?
A1: Maintain sufficient distance from heat-emitting devices to avoid thermal stress. Ideally, keep the driver at least several inches away from lamps, transformers, or machinery that generates heat.
Q2: Can your drivers be used outdoors?
A2: Yes, our drivers come with IP-rated options suitable for outdoor installations, including IP65 and IP67 enclosures to protect against dust and water ingress.
Q3: What is the importance of polarity in wiring an LED driver?
A3: Correct polarity ensures proper operation. Reversing connections can damage the driver and LEDs, so always verify positive and negative terminals before powering the system.
Q4: Do your drivers support dimming functions?
A4: Yes, our drivers provide flexible outputs and dimming capabilities compatible with a wide range of LED fixtures, allowing smooth brightness adjustment without flickering.
