Understanding LED Driver Specifications: Voltage, Power, And Protection Features Explained

LED technology has revolutionized lighting with its energy efficiency, longevity, and versatility. However, the real hero behind every successful LED lighting system is the LED driver. Just like a car engine powers the vehicle, an LED driver provides the necessary power and stability to ensure LEDs function safely and effectively.

Choosing the right LED driver involves more than just matching voltage—it requires a clear understanding of technical specifications such as voltage, power, protection features, and environmental ratings. These specifications directly affect the performance, reliability, and safety of your lighting system. A mismatch in specifications can lead to issues such as flickering, overheating, premature failure, or even fire hazards.

This article will walk you through these technical terms in simple, easy-to-understand language, using SMUN’s advanced drivers like the SMV-300 as a reference point. Whether you're a lighting professional, electrical engineer, or DIY enthusiast, you’ll gain the confidence to choose the right driver for your application.

Constant Voltage vs. Constant Current: What’s the Difference?

Understanding whether your lighting project requires a Constant Voltage (CV) or Constant Current (CC) driver is the first step in selecting the right product.

Constant Voltage (CV) Drivers

Constant Voltage drivers supply a fixed voltage output—typically 12V or 24V—while allowing the current to fluctuate depending on the power demands of the connected load. These drivers are best suited for applications where:

• The LED lighting system includes internal current regulation (like resistors or regulators).

• The LED modules are connected in parallel circuits.

• The system involves LED strip lights, tape lights, or under-cabinet lights.

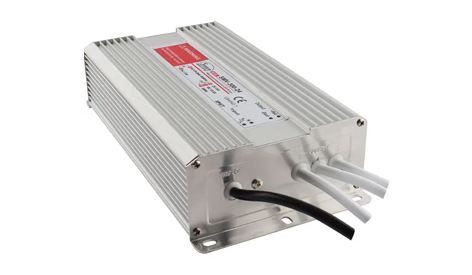

Use Case: The SMUN SMV-300 is a 300W constant voltage power supply that’s ideal for outdoor strip lighting in gardens or architectural features. Its stable 24V output ensures brightness consistency across long strips.

Constant Current (CC) Drivers

Constant Current drivers deliver a fixed current output, such as 350mA, 700mA, or 1A, and adjust the voltage based on the requirements of the LEDs. These are ideal for:

• High-power LEDs without internal resistors.

• Applications where precise current regulation is essential to avoid LED degradation.

• Fixtures like spotlights, downlights, and industrial modules.

Choosing the wrong driver type—like using a constant voltage driver on a constant current LED module—can damage your lighting system and void warranties.

Power Output: Wattage and Load Matching

The power rating of an LED driver, usually listed in watts (W), determines how much load it can handle. This spec is vital for load matching—ensuring the total wattage of connected LEDs does not exceed the driver's capacity.

How to Calculate the Right Wattage

• Determine total LED wattage: Add the power rating of each connected LED unit.

• Include a safety margin: Choose a driver with at least 20–30% more power than the total load. This margin helps reduce stress on the driver and allows room for future expansion.

For example:

• LED load = 240W

• Recommended driver = at least 288W

• The SMUN SMV-300 (300W) is an excellent fit with a safe overhead.

Why It Matters

Overloading a driver can lead to:

• Voltage drops or flickering

• Thermal shutdowns or reduced lifespan

• Risk of component failure or fire hazards

Underrunning the driver (using only 70–80% of its capacity) is not only acceptable but actually preferred in many applications, as it enhances reliability and lifespan.

Voltage Range & Frequency Compatibility

LED drivers are designed to convert high-voltage alternating current (AC) into lower, stable direct current (DC). However, the input voltage range and frequency must match the local electrical grid.

Input Voltage Range

The SMUN SMV-300 operates efficiently across a wide input range of 170VAC to 264VAC. This makes it:

• Suitable for global use, regardless of whether you are in Europe, Asia, or North America.

• Resilient to voltage fluctuations common in rural or industrial areas.

• Capable of providing consistent output even during power sags or surges.

Frequency Compatibility

• The 47Hz–63Hz input frequency range ensures the driver supports both 50Hz (common in Europe and Asia) and 60Hz (used in the Americas).

• This allows the same product to be used in various regions without compatibility issues.

A wide input range and multi-frequency compatibility simplify inventory management for retailers and installation planning for international projects.

Protection Features: Safety Built into the Design

Advanced protection features are essential in safeguarding your LED driver and connected fixtures. SMUN designs its products, like the SMV-300, with multiple safety layers to prevent failure and ensure peace of mind.

Short Circuit Protection

• Activates instantly if output wires short-circuit.

• Uses hiccup mode to shut off output temporarily and retry at intervals.

• Automatically restores normal operation once the issue is resolved.

• Prevents fire, component burnout, and damage to the power supply.

Overload Protection

• Engages when the current exceeds 105–135% of rated capacity.

• Hiccup mode protects components by cycling power on and off until load returns to normal.

• Prevents overheating and irreversible damage.

Overvoltage Protection

• Protects the driver and LEDs if the output voltage exceeds 135–150% of normal.

• Automatically cuts output to avoid burning LEDs or triggering electrical faults.

Overtemperature Protection

• Internal sensors monitor component temperature.

• If the internal heat exceeds 150°C, the driver shuts down output.

• Automatically resumes operation once the system cools down.

• Ensures reliability in harsh environments or poorly ventilated areas.

These intelligent protection features are especially valuable for industrial and outdoor installations where environmental or operational stress is higher.

Waterproof & Dustproof Ratings: IP65 vs. IP67

Environmental resistance plays a huge role in outdoor lighting performance. Without proper waterproofing, even a top-tier driver can fail quickly.

Understanding IP Ratings

IP (Ingress Protection) ratings indicate the degree of protection against dust and water.

SMUN's Waterproof Solutions

The SMV-300 features an IP67 rating, making it perfect for:

• Outdoor architectural lighting

• Street lights and garden installations

• Wet or humid environments such as coastal regions

Key Benefits of IP67 Drivers:

• Fully sealed casing protects against dust, sand, and insects.

• Allows installation in locations where rain, condensation, or splashing occurs.

• Increases product lifespan and reduces maintenance needs.

Summary Chart: How to Read LED Driver Specs

Here’s a visual summary to help you understand the key technical specifications found on LED driver datasheets:

Conclusion: Choose Specs That Match Your Needs

Understanding LED driver specifications is not just for engineers—it's essential for installers, architects, lighting designers, and even end-users. The right specifications ensure your lighting system is:

• Safe from electrical failures

• Efficient in power usage

• Durable in various environments

• Reliable over the long term

Drivers like the SMUN SMV-300 embody these principles with robust electrical performance, smart protection features, and industry-grade environmental resistance.

Call to Action: Discover SMUN’s High-Spec LED Power Supplies

Ready to find a high-performance LED driver for your next project?

Explore our full range at www.smunchina.com and discover why professionals around the world trust SMUN for reliable LED power solutions.

Whether it’s residential, commercial, industrial, or outdoor lighting—SMUN has an LED driver designed for your application.
