Inverters are essential electronic devices designed to convert Direct Current (DC) into Alternating Current (AC), making them indispensable in modern power systems. Since most household and industrial equipment operates on AC electricity, inverters act as the bridge that allows power stored in batteries, solar panels, or other DC sources to be used effectively in real-world applications.
Understanding the different types of inverters is critical because each type is designed for a specific purpose. From residential backup power systems to commercial operations and industrial-scale applications, inverters ensure that electricity is delivered in the right form, with the required stability and efficiency.
Choosing the right inverter not only impacts the overall performance and reliability of a power system but also determines how well it protects sensitive devices, reduces energy waste, and supports long-term sustainability. Whether for homes, offices, factories, or renewable energy installations, selecting an appropriate inverter is a key decision in ensuring smooth operation and energy efficiency.
1. Classification by Waveform
One of the most common ways to categorize inverters is by the type of output waveform they produce. The waveform directly affects the inverter’s performance, efficiency, and compatibility with different appliances.
1.1 Pure Sine Wave Inverters
Definition: A pure sine wave inverter generates electricity that closely mimics the smooth sine wave of utility-supplied AC power.
Performance: Delivers clean, stable, and distortion-free current.
Applications: Ideal for sensitive electronics such as computers, medical equipment, refrigerators, LED TVs, and advanced audio systems.
Advantages: Ensures maximum efficiency, prevents overheating, and extends the lifespan of appliances.
Considerations: Typically more expensive but provides the highest reliability and compatibility.

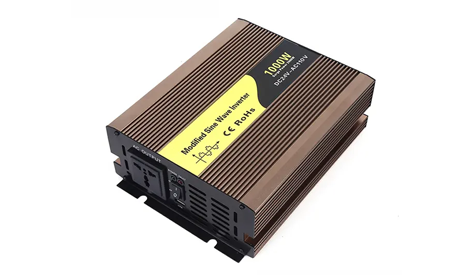

1.2 Modified Sine Wave Inverters
Definition: A modified sine wave inverter creates a step-like approximation of a sine wave, making it less smooth than pure sine wave output.
Performance: Sufficient for general appliances but may cause reduced efficiency or minor interference in sensitive devices.
Applications: Commonly used for power tools, simple household devices, and small appliances that are not highly sensitive to waveform quality.
Advantages: More cost-effective and widely available.
Considerations: Not recommended for equipment that requires precise and stable electricity.
1.3 Comparison of Performance and Applications
Efficiency: Pure sine wave inverters provide higher efficiency and are better suited for continuous use, while modified sine wave inverters are suitable for short-term or low-cost setups.
Device Compatibility: Sensitive electronics function best with pure sine wave inverters, while basic devices (fans, lights, or older appliances) often run fine on modified sine wave systems.
Cost: Modified sine wave inverters are budget-friendly, but pure sine wave inverters offer greater value for long-term reliability.
2. Classification by Application
Inverters can also be categorized based on their application. Each type serves different energy needs, from fully independent power supply to grid-connected renewable energy systems. Understanding these categories helps users select the best option for their residential, commercial, or industrial requirements.
2.1 Grid-Tie Inverters
Grid-tie inverters are designed to connect renewable energy systems—such as solar panels or wind turbines—directly to the utility grid. They convert DC electricity from renewable sources into AC power that matches the grid’s voltage and frequency. This allows users to feed excess energy back into the grid, reducing electricity bills and promoting sustainable energy usage. Grid-tie inverters are widely used in residential rooftops, commercial buildings, and large-scale solar farms.
2.2 Off-Grid Inverters
Off-grid inverters are essential for areas without access to the main electricity grid. These inverters supply power to standalone systems, often paired with batteries for energy storage. They provide independence and reliability for remote homes, cabins, or industrial sites where grid power is unavailable. Off-grid inverters must handle variable loads and ensure stable output to support appliances and equipment continuously.
2.3 Hybrid Inverters
Hybrid inverters combine the functions of both grid-tie and off-grid systems, offering maximum flexibility in energy management. They allow users to connect to the grid while also integrating batteries for backup storage. During normal operation, hybrid inverters can feed energy into the grid, while in case of outages, they switch to battery power to keep essential appliances running. This makes them highly suitable for residential, commercial, and industrial users who value both reliability and efficiency.
3. Classification by Power Capacity
Another way to categorize inverters is by their power capacity. The size and output of an inverter determine which applications it can support, from powering a single household appliance to running large-scale industrial operations. Choosing the correct capacity ensures efficiency, safety, and reliable performance.
3.1 Small-Capacity Inverters
Small-capacity inverters are typically designed for household use, ranging from a few hundred watts to a few kilowatts. They are suitable for powering lights, fans, televisions, laptops, and other small devices. Homeowners often use them as backup power sources during outages or as part of a small solar system. Their compact size and affordability make them an excellent choice for residential applications where energy demand is relatively low.
3.2 Medium-Capacity Inverters
Medium-capacity inverters, generally ranging from 5 kW to 50 kW, are well-suited for commercial applications. These inverters can handle multiple appliances at once, making them ideal for small businesses, shops, or office buildings. They provide a balance between affordability and performance, ensuring reliable power without overloading the system. Medium-capacity inverters are also commonly used in mid-size solar installations and hybrid energy systems.
3.3 High-Capacity Inverters
High-capacity inverters, with outputs exceeding 50 kW, are designed for industrial use and large-scale facilities. They can support heavy machinery, critical operations, and continuous power supply for factories or data centers. High-capacity inverters are built with advanced cooling systems, durable components, and enhanced protection features to ensure stable performance under demanding conditions. These inverters are vital in industries where downtime or power fluctuations could result in significant financial loss or safety risks.
4. Key Features and Considerations
When selecting an inverter, it is important to look beyond just power capacity. Modern inverters come with a variety of features that directly impact efficiency, safety, durability, and overall system performance. Evaluating these factors ensures you choose a solution that fits both your current and future energy needs.
4.1 Efficiency Ratings and Energy Conversion Performance
The efficiency of an inverter refers to how effectively it converts DC electricity into usable AC power. High-efficiency inverters, often rated above 90–95%, reduce energy losses during conversion, leading to lower electricity costs and better utilization of renewable sources like solar. In residential and commercial systems, higher efficiency translates to long-term savings and reduced environmental impact.
4.2 Safety Protections
Safety is a critical consideration in any power system. Quality inverters are equipped with built-in protection features such as:
Overload Protection: Prevents damage when connected appliances exceed the inverter’s rated capacity.
Short-Circuit Protection: Safeguards the inverter and connected devices against sudden electrical faults.
Over-Temperature Protection: Uses sensors and automatic shut-off mechanisms to avoid overheating, ensuring safe and reliable operation.
These protections not only extend the lifespan of the inverter but also protect sensitive appliances and reduce risks of fire or electrical hazards.
5.3 Cooling Mechanisms and Lifespan
Inverters generate heat during operation, especially in high-capacity or continuous-use environments. Advanced models incorporate fan-based cooling systems, heat sinks, or even smart temperature control technologies to maintain stable performance. Effective cooling extends the lifespan of internal components and ensures that the inverter operates consistently under demanding conditions.
4.4 Compatibility with Renewable Energy Systems
With the rise of solar and wind power, compatibility with renewable energy systems has become an essential feature. Some inverters are designed specifically for solar installations, offering MPPT (Maximum Power Point Tracking) technology to optimize energy harvest from panels. Others can be integrated into hybrid systems that combine grid power, batteries, and renewables for greater flexibility. Selecting an inverter with renewable energy compatibility ensures scalability and future-proofing as energy demands evolve.
5. Applications Across Industries
Inverters are not limited to one type of use. Their flexibility allows them to serve a wide range of sectors, from residential households to heavy industrial facilities. Understanding their applications across industries helps in making the right selection for specific power requirements.
5.1 Residential Applications
In homes, inverters are widely used to power everyday appliances such as lights, fans, televisions, and refrigerators. They are also an essential part of backup power systems, ensuring that households remain functional during outages. Pure sine wave inverters are particularly recommended for sensitive electronics like laptops and home entertainment systems, as they provide smooth and reliable power.
5.2 Commercial Applications
For offices, retail stores, and small manufacturing units, inverters support continuous operation of equipment including computers, servers, air conditioning systems, and point-of-sale devices. Commercial setups benefit from medium-capacity inverters that balance efficiency and cost, ensuring smooth operations without interruptions. Businesses increasingly rely on inverters paired with renewable energy sources to reduce operational costs and meet sustainability goals.
5.3 Industrial Applications
In industrial environments, inverters are indispensable for powering heavy machinery, motors, pumps, and other critical equipment. High-capacity inverters are designed to handle large energy demands while maintaining stability under harsh working conditions. With built-in protections against overload and overheating, industrial inverters safeguard expensive machinery and minimize downtime, making them vital in factories, processing plants, and critical infrastructure.
5.4 Renewable Energy Applications
Inverters are central to renewable energy systems, particularly solar and wind power installations. Grid-tie inverters allow excess energy from solar panels to be fed back into the utility grid, while off-grid inverters enable independent operation in remote locations. Hybrid inverters combine both functionalities, offering flexibility and maximizing the benefits of renewable energy. These solutions are increasingly popular in both residential and commercial projects as the demand for clean energy continues to grow.
6. Conclusion
Inverters play a vital role in ensuring that DC power from batteries, solar panels, or other sources can be effectively converted into usable AC electricity. Whether used in homes, offices, factories, or renewable energy systems, the right inverter ensures reliable power supply, protects equipment, and supports energy efficiency.
When choosing an inverter, factors such as waveform type, application needs, and power capacity should be carefully considered. Each type—pure sine wave, modified sine wave, grid-tie, off-grid, or hybrid—serves a distinct purpose and offers unique benefits depending on the application.
For businesses and individuals seeking customized, durable, and high-performance inverter solutions, it is highly recommended to consult professional suppliers like Zhejiang Ximeng Electronic Technology Co., Ltd.. With expertise in advanced power electronics, they provide tailored guidance on selecting the right inverter, ensuring safe installation, and achieving long-term efficiency in diverse energy systems.
