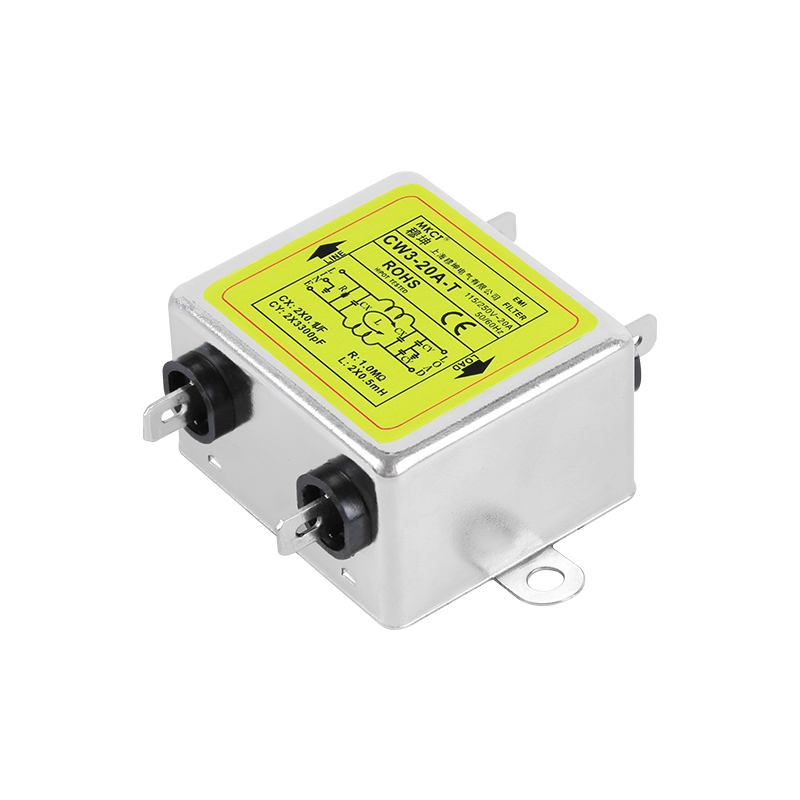

CW3/CW4-3A/6A/10A/20A/30A-T Insert Connection Single-Phase General Purpose Single Pole or Bipolar Power Filter EMI Filter

Features and benefits

-Compact size, fast and easy chassis mounting

-Various terminal connection styles

-Good conducted attenuation performance, surge pulse protection and radio frequency interference suppression is present

Technical specifications

-Maximum continuous operating voltage:  250VAC

-Operating frequency:  50/60Hz

-Rated currents:3A – 30A @ 40℃ Max

-High potential test voltage(1 min):  Line to Line 1500VDC / Line to Ground 1500VAC

-Operation and storage temperature range:  -25℃~+85℃ (25/085/21)

Schematic diagram	model	Specs	Current

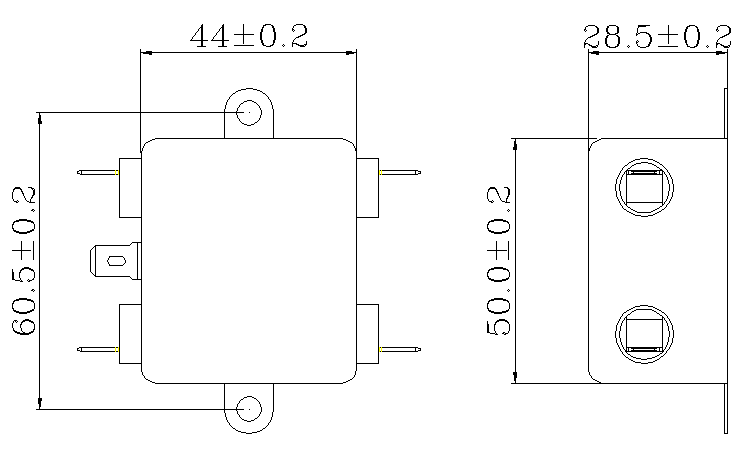

	CW3-3A-T	Insert type single pole	3A
	CW3-6A-T		6A
	CW3-10A-T		10A
	CW3-20A-T		20A

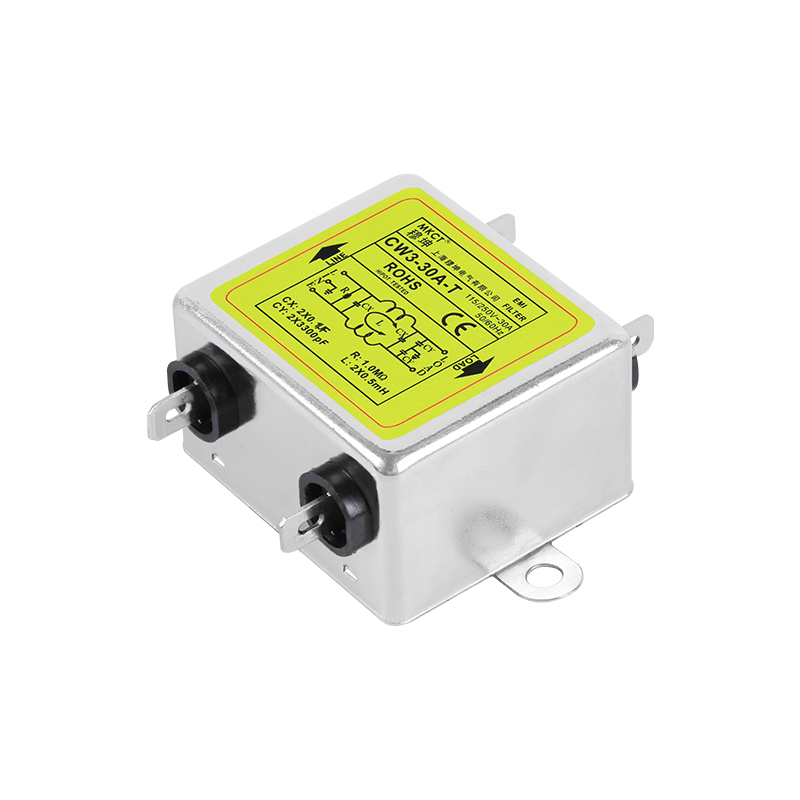

	CW3-30A-T		30A

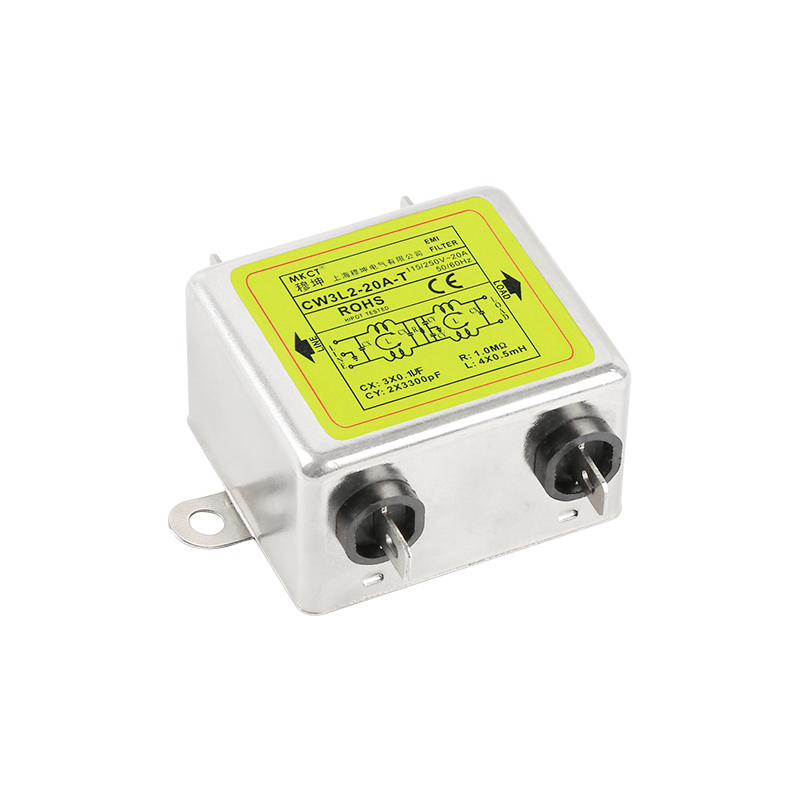

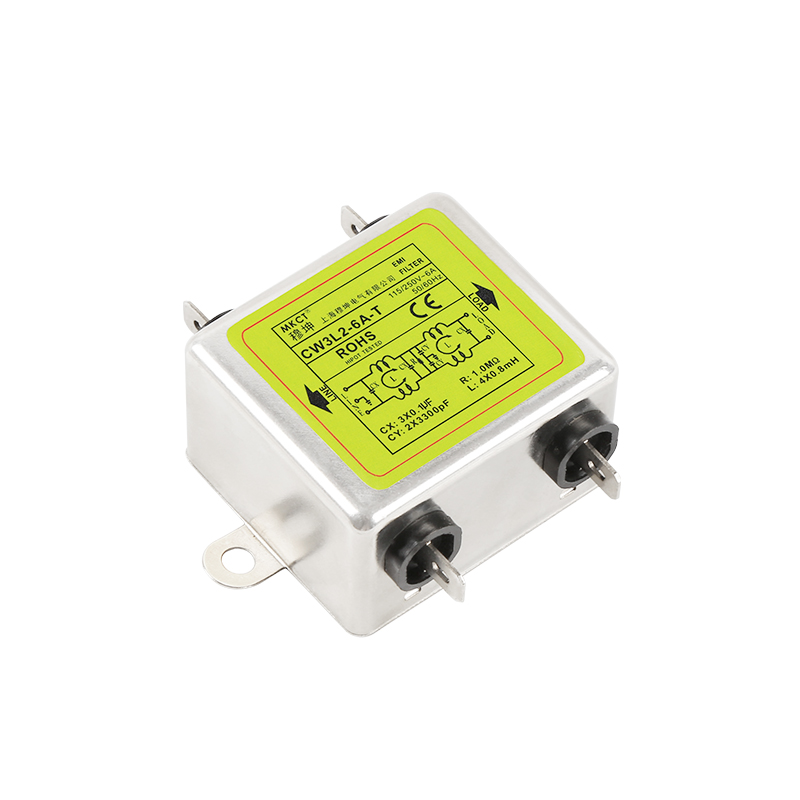

	CW3L2-3A-T	Insert type bipolar	3A
	CW3L2-6A-T		6A
	CW3L2-10A-T		10A
	CW3L2-20A-T		20A

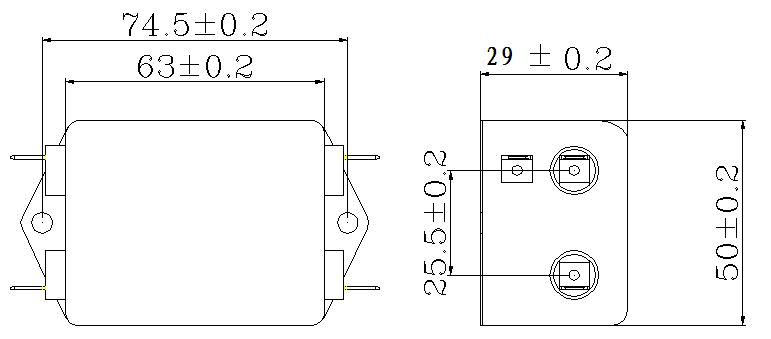

	CW4-3A-T	Insert type single pole	3A
	CW4-6A-T		6A
	CW4-10A-T		10A
	CW4-20A-T		20A
	CW4-30A-T		30A
	CW4L2-3A-T	Insert type bipolar	3A
	CW4L2-6A-T		6A
	CW4L2-10A-T		10A
	CW4L2-20A-T		20A

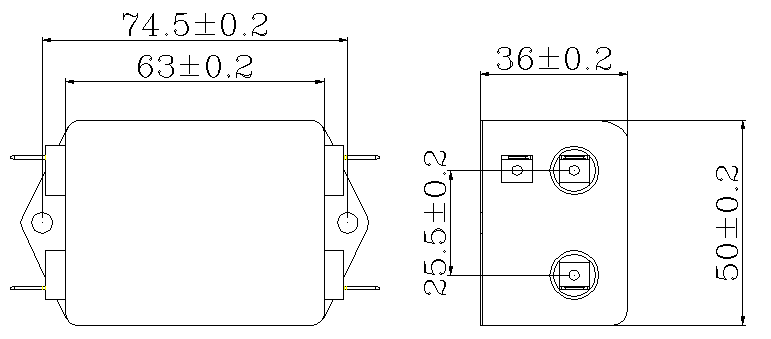

	CW4E-3A-T	Insert type single pole	3A
	CW4E-6A-T		6A
	CW4E-10A-T		10A
	CW4E-20A-T		20A
	CW4E-30A-T		30A
	CW4EL2-3A-T	Insert type bipolar	3A
	CW4EL2-6A-T		6A
	CW4EL2-10A-T		10A
	CW4EL2-20A-T		20A
	CW4EL2-30A-T		30A

More details,please check the datasheets.
