This highly efficient switch mode step-dwon DC-DC converter converts an input voltage of 12/24 VDC nominal (range 8 VDC to 36 VDC) to a highly regulated output voltage of 5 VDC nominal. These DC-DC converters is non-isolated (no galvanic isolation between input and output) and meant for use in negative ground systems. Features include waterproof, overcurrent,short-circuit and overvoltage protection.

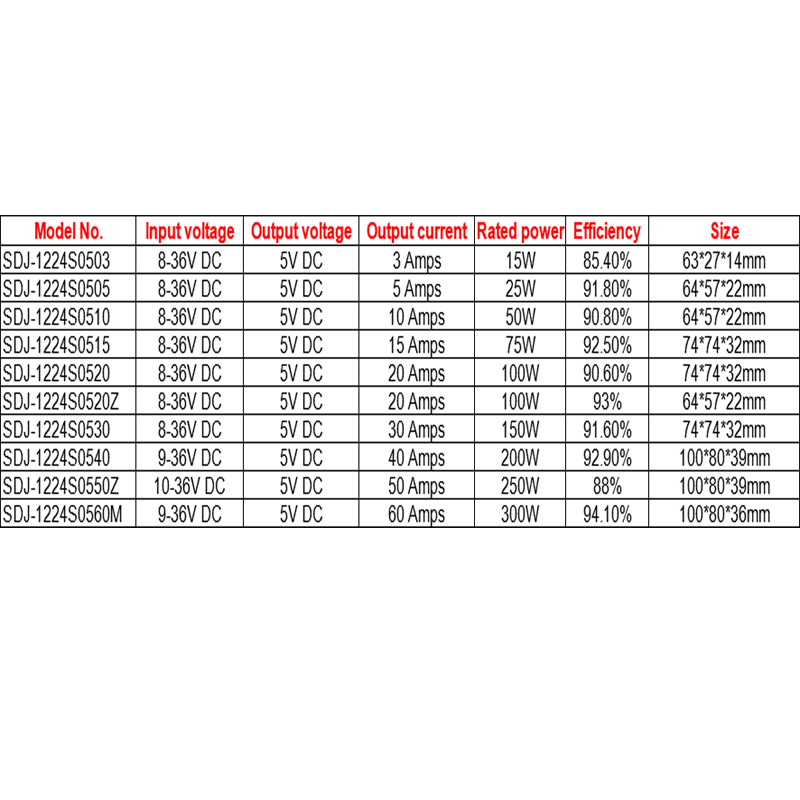

Model No. Input voltage Output voltage Output current Rated power Efficiency Size SDJ-1224S0503 8-36V DC 5V DC 3 Amps 15W 85.40% 63*27*14mm SDJ-1224S0505 8-36V DC 5V DC 5 Amps 25W 91.80% 64*57*22mm SDJ-1224S0510 8-36V DC 5V DC 10 Amps 50W 90.80% 64*57*22mm SDJ-1224S0515 8-36V DC 5V DC 15 Amps 75W 92.50% 74*74*32mm SDJ-1224S0520 8-36V DC 5V DC 20 Amps 100W 90.60% 74*74*32mm SDJ-1224S0520Z 8-36V DC 5V DC 20 Amps 100W 93% 64*57*22mm SDJ-1224S0530 8-36V DC 5V DC 30 Amps 150W 91.60% 74*74*32mm SDJ-1224S0540 9-36V DC 5V DC 40 Amps 200W 92.90% 100*80*39mm SDJ-1224S0550Z 10-36V DC 5V DC 50 Amps 250W 88% 100*80*39mm SDJ-1224S0560M 9-36V DC 5V DC 60 Amps 300W 94.10% 100*80*36mm
Design meeting ROHS / CE
High efficiency: 88 ~ 95%（@12V input）
Non-isolated buck module
lnternal capacitor:NCC & NICHICON （high reliability）
100% full load burn-in test
Waterproof level IP68, 3 years warranty
Short circuit, Over load, Low-voltage and Over temperature protections
Applications: Electromotor Telecommunications, Logging Vehicles Forklifts and Led market etc...
