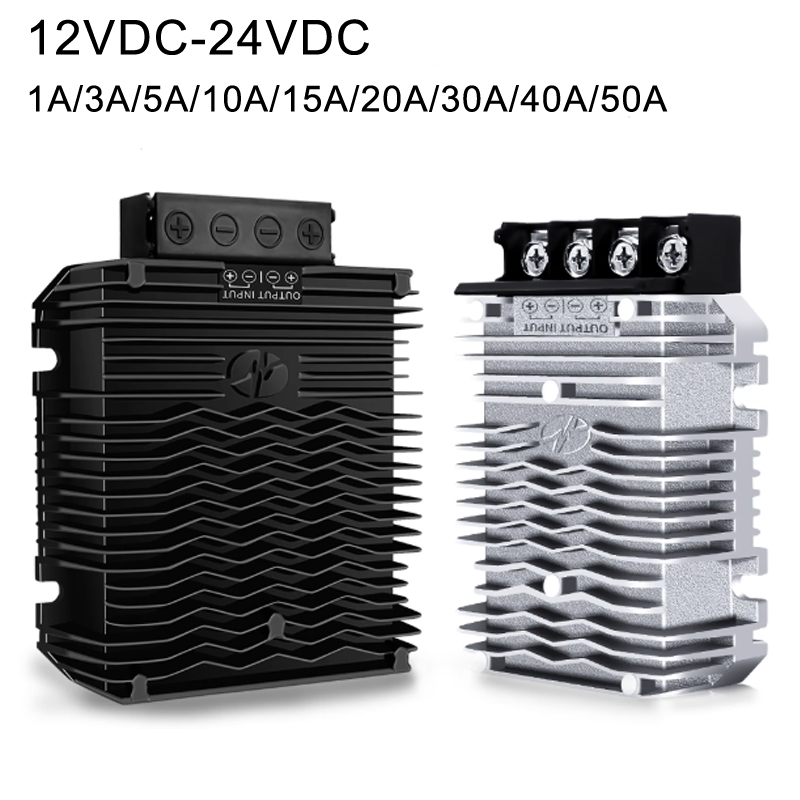

12VDC To 24VDC 1-50A Non-Isolated IP68 Waterproof Boost Step Up DC-DC Converter

Name: 12VDC To 24VDC 1-50A Non-Isolated IP68 Waterproof Boost Step Up DC-DC Converter
Brand: SMUN
Rating: 5.0 (67 reviews)

Features
Design meeting ROHS / CE
High efficiency: 94% (@12V input)
Non-lsolated between input and output
lnternal capacitor:NCC & NICHICON (high reliability)
100% full load burn-in test
Waterproof level IP68
Over load, Over Voltage and Over temperature protections
Applications: Electromotor Telecommunications, Logging Vehicles Forklifts and on.

Availability:

Quantity:



Inquire Add to Basket

Model:
SDS-12S24
Brand:
SMUN

12V to 24V Series

This highly efficient switch mode step-up DC-DC converter converts an input voltage of 12 VDC nominal (range 9 VDC to 23 VDC) to a highly regulated output voltage of 24 VDC nominal. These DC-DC converters is non-isolated (no galvanic isolation between input and output) and meant for use in negative ground systems. Features include waterproof, overcurrent and overvoltage protection.

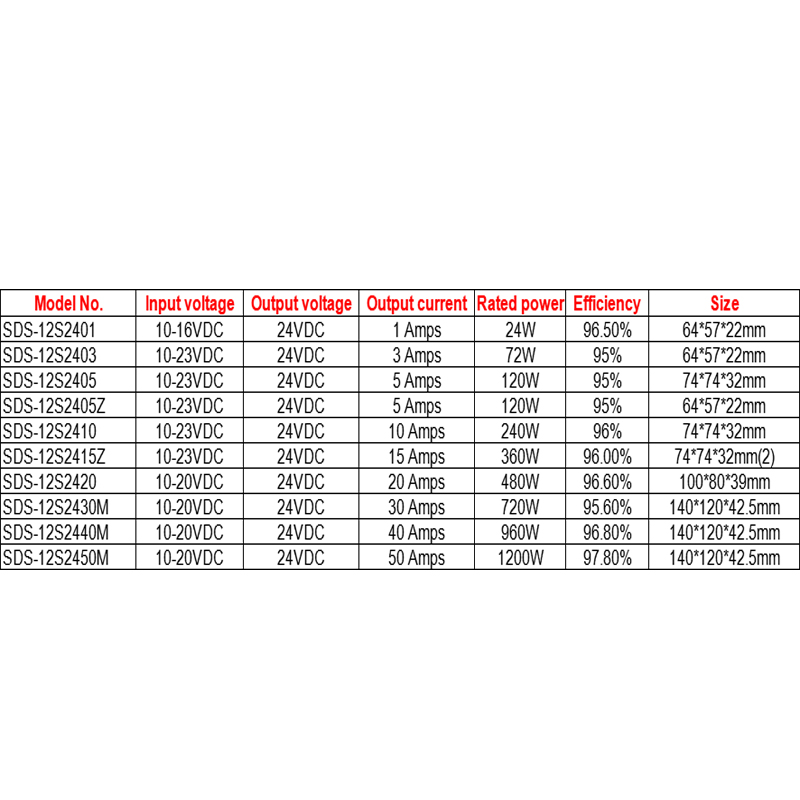

Model No.	Input voltage	Output voltage	Output current	Rated power	Efficiency	Size

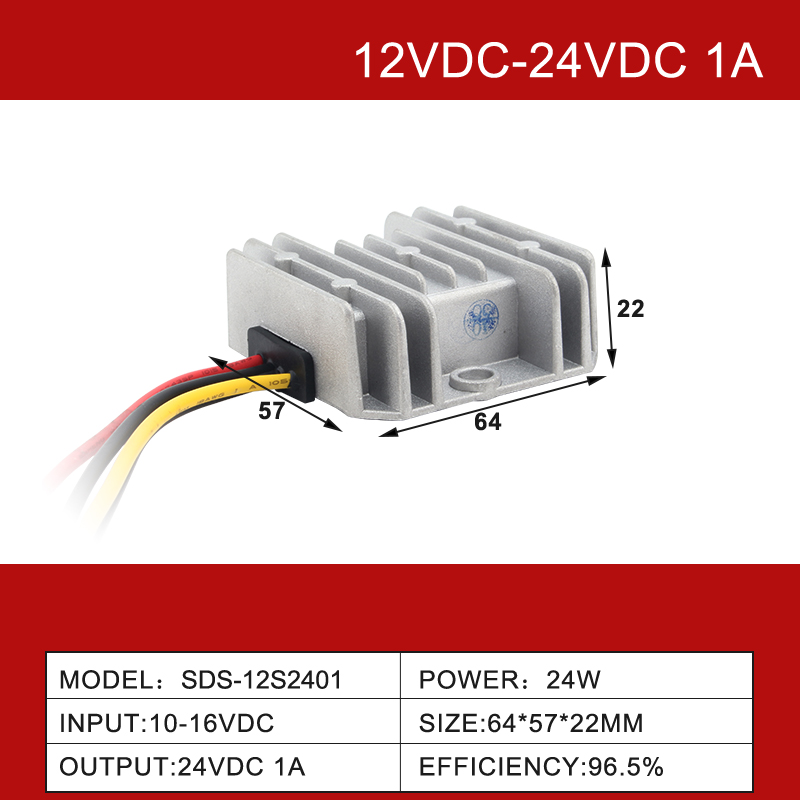

SDS-12S2401	10-16VDC	24VDC	1 Amps	24W	96.50%	645722mm

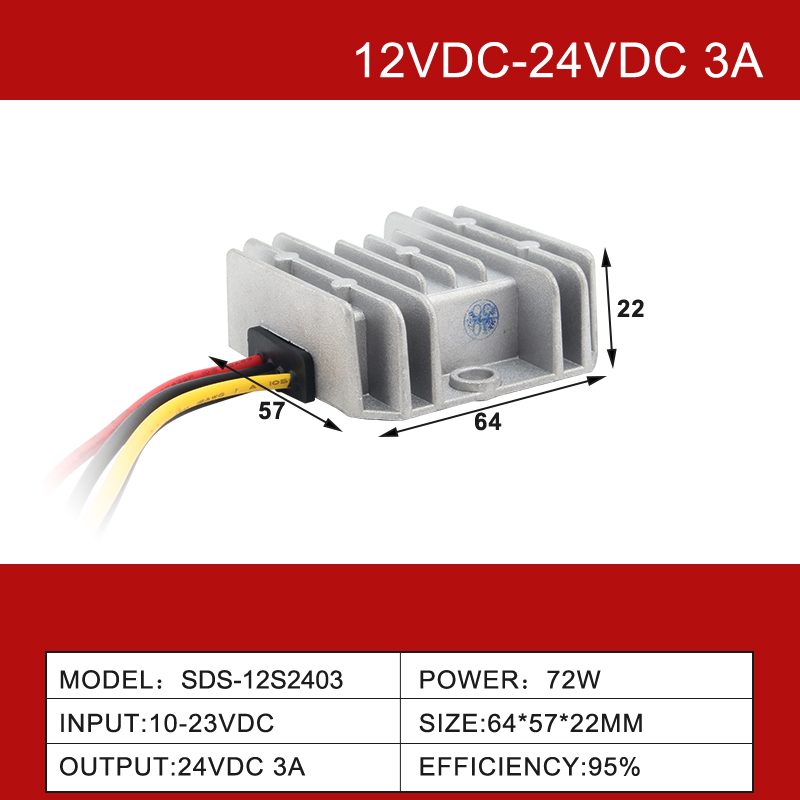

SDS-12S2403	10-23VDC	24VDC	3 Amps	72W	95%	645722mm

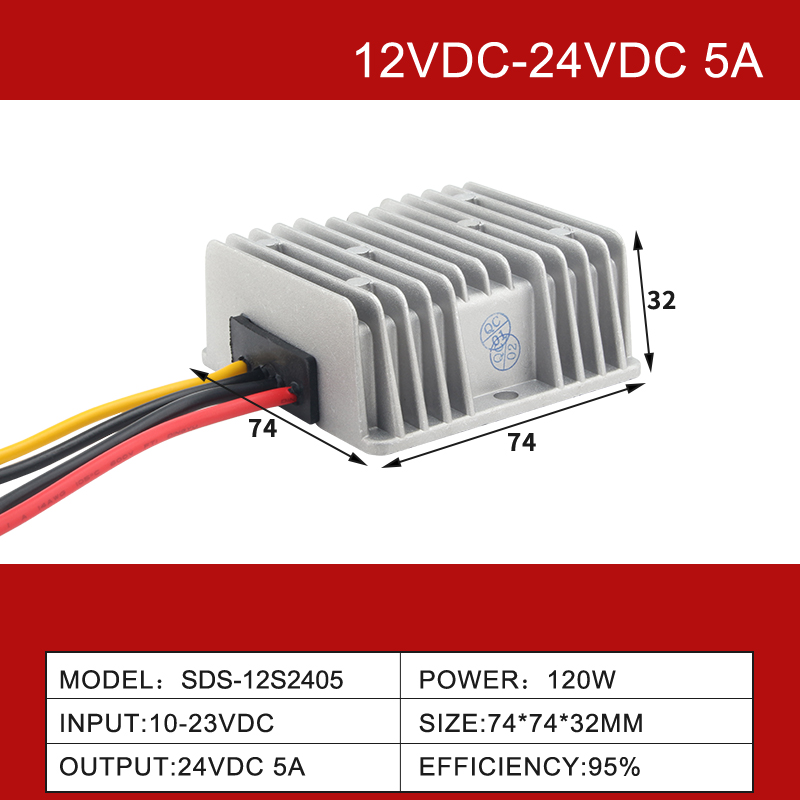

SDS-12S2405	10-23VDC	24VDC	5 Amps	120W	95%	747432mm

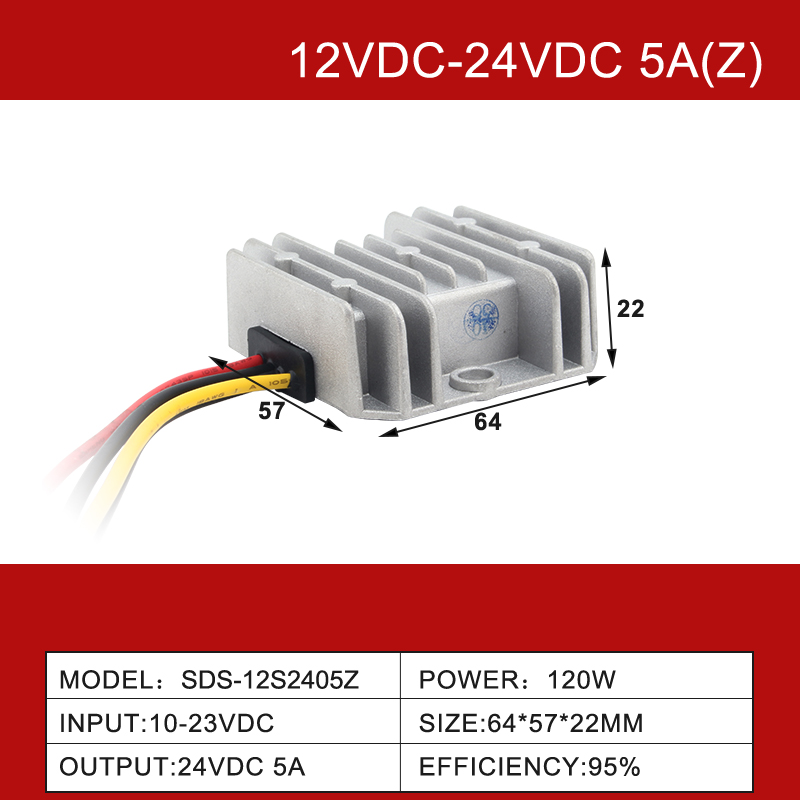

SDS-12S2405Z	10-23VDC	24VDC	5 Amps	120W	95%	645722mm
SDS-12S2410	10-23VDC	24VDC	10 Amps	240W	96%	747432mm

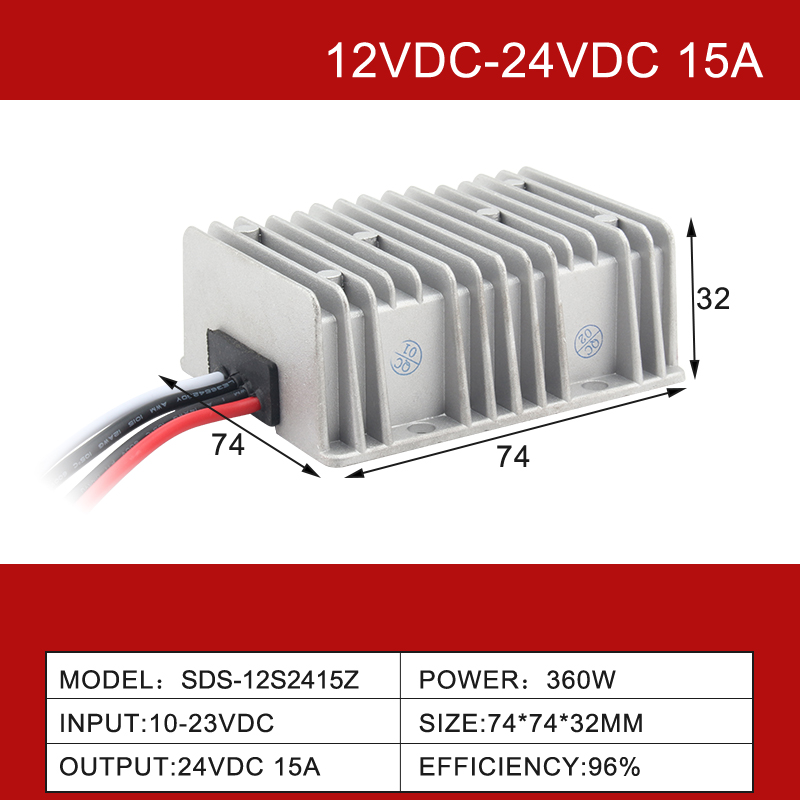

SDS-12S2415Z	10-23VDC	24VDC	15 Amps	360W	96.00%	747432mm(2)
SDS-12S2420	10-20VDC	24VDC	20 Amps	480W	96.60%	1008039mm

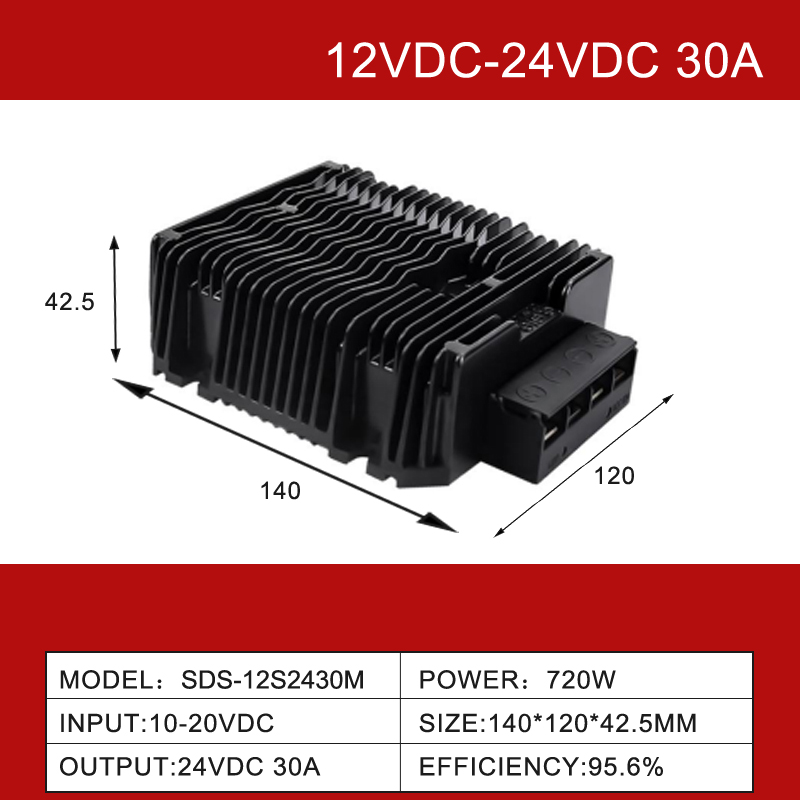

SDS-12S2430M	10-20VDC	24VDC	30 Amps	720W	95.60%	14012042.5mm
SDS-12S2440M	10-20VDC	24VDC	40 Amps	960W	96.80%	14012042.5mm
SDS-12S2450M	10-20VDC	24VDC	50 Amps	1200W	97.80%	14012042.5mm
