24V to 12V Series
This highly efficient switch mode step-dwon DC-DC converter converts an input voltage of 24 VDC nominal (range 18 VDC to 36 VDC) to a highly regulated output voltage of 12 VDC nominal. These DC-DC converters is non-isolated (no galvanic isolation between input and output) and meant for use in negative ground systems. Features include waterproof, overcurrent,short-circuit and overvoltage protection.

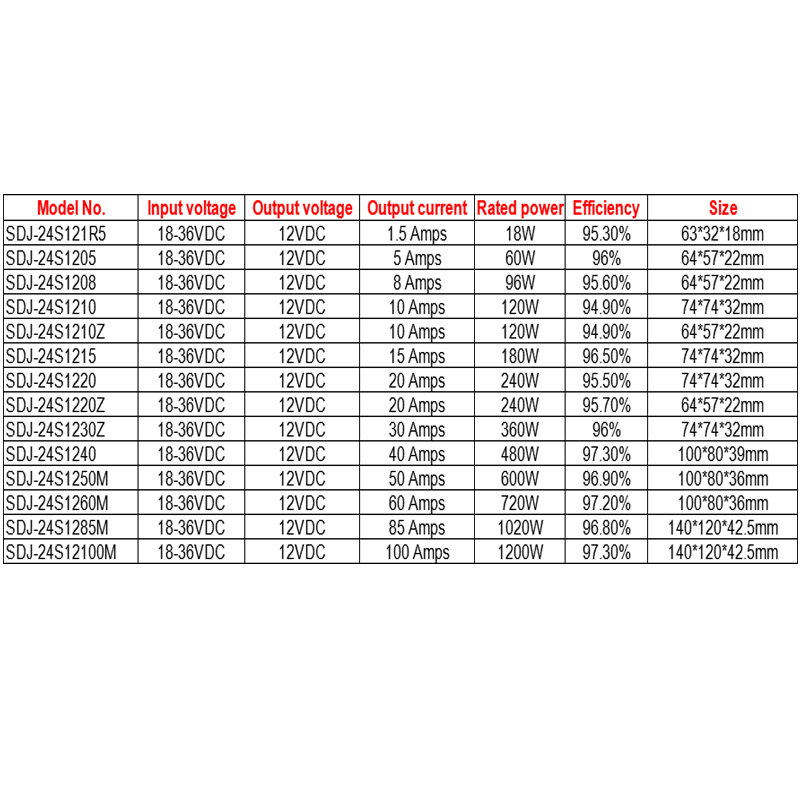

Model No. Input voltage Output voltage Output current Rated power Efficiency Size SDJ-24S121R5 18-36VDC 12VDC 1.5 Amps 18W 95.30% 63*32*18mm SDJ-24S1205 18-36VDC 12VDC 5 Amps 60W 96% 64*57*22mm SDJ-24S1208 18-36VDC 12VDC 8 Amps 96W 95.60% 64*57*22mm SDJ-24S1210 18-36VDC 12VDC 10 Amps 120W 94.90% 74*74*32mm SDJ-24S1210Z 18-36VDC 12VDC 10 Amps 120W 94.90% 64*57*22mm SDJ-24S1215 18-36VDC 12VDC 15 Amps 180W 96.50% 74*74*32mm SDJ-24S1220 18-36VDC 12VDC 20 Amps 240W 95.50% 74*74*32mm SDJ-24S1220Z 18-36VDC 12VDC 20 Amps 240W 95.70% 64*57*22mm SDJ-24S1230Z 18-36VDC 12VDC 30 Amps 360W 96% 74*74*32mm SDJ-24S1240 18-36VDC 12VDC 40 Amps 480W 97.30% 100*80*39mm SDJ-24S1250M 18-36VDC 12VDC 50 Amps 600W 96.90% 100*80*36mm SDJ-24S1260M 18-36VDC 12VDC 60 Amps 720W 97.20% 100*80*36mm SDJ-24S1285M 18-36VDC 12VDC 85 Amps 1020W 96.80% 140*120*42.5mm SDJ-24S12100M 18-36VDC 12VDC 100 Amps 1200W 97.30% 140*120*42.5mm
More details,see datasheets.
Design meeting ROHS / CE
High efficiency: 90-96%（@24V input）
Non-isolated module
lnternal capacitor:NCC & NICHICON （high reliability）
100% full load burn-in test
Waterproof level IP68, 1-3 years warranty
Short circuit, Over load, and Over temperature protections
Applications: Electromotor Telecommunications, Logging Vehicles Forklifts and on.
24V to 12V Series
This highly efficient switch mode step-dwon DC-DC converter converts an input voltage of 24 VDC nominal (range 18 VDC to 36 VDC) to a highly regulated output voltage of 12 VDC nominal. These DC-DC converters is non-isolated (no galvanic isolation between input and output) and meant for use in negative ground systems. Features include waterproof, overcurrent,short-circuit and overvoltage protection.
Model No. Input voltage Output voltage Output current Rated power Efficiency Size SDJ-24S121R5 18-36VDC 12VDC 1.5 Amps 18W 95.30% 63*32*18mm SDJ-24S1205 18-36VDC 12VDC 5 Amps 60W 96% 64*57*22mm SDJ-24S1208 18-36VDC 12VDC 8 Amps 96W 95.60% 64*57*22mm SDJ-24S1210 18-36VDC 12VDC 10 Amps 120W 94.90% 74*74*32mm SDJ-24S1210Z 18-36VDC 12VDC 10 Amps 120W 94.90% 64*57*22mm SDJ-24S1215 18-36VDC 12VDC 15 Amps 180W 96.50% 74*74*32mm SDJ-24S1220 18-36VDC 12VDC 20 Amps 240W 95.50% 74*74*32mm SDJ-24S1220Z 18-36VDC 12VDC 20 Amps 240W 95.70% 64*57*22mm SDJ-24S1230Z 18-36VDC 12VDC 30 Amps 360W 96% 74*74*32mm SDJ-24S1240 18-36VDC 12VDC 40 Amps 480W 97.30% 100*80*39mm SDJ-24S1250M 18-36VDC 12VDC 50 Amps 600W 96.90% 100*80*36mm SDJ-24S1260M 18-36VDC 12VDC 60 Amps 720W 97.20% 100*80*36mm SDJ-24S1285M 18-36VDC 12VDC 85 Amps 1020W 96.80% 140*120*42.5mm SDJ-24S12100M 18-36VDC 12VDC 100 Amps 1200W 97.30% 140*120*42.5mm
More details,see datasheets.
Design meeting ROHS / CE
High efficiency: 90-96%（@24V input）
Non-isolated module
lnternal capacitor:NCC & NICHICON （high reliability）
100% full load burn-in test
Waterproof level IP68, 1-3 years warranty
Short circuit, Over load, and Over temperature protections
Applications: Electromotor Telecommunications, Logging Vehicles Forklifts and on.
