24VDC to 48VDC 3A to 42A Non-isolated Waterproof Step-up DC-DC Converter For Golf Car

Name: 24VDC to 48VDC 3A to 42A Non-isolated Waterproof Step-up DC-DC Converter For Golf Car
Brand: SMUN
Rating: 5.0 (34 reviews)

Features
Design meeting ROHS / CE
High efficiency: 97% (@24V input)
Non-isolated between input and output
lnternal capacitor:NCC & NICHICON (high reliability)
100% full load burn-in test
Waterproof level IP68
Over voltage, Over load, and Over temperature protections
Applications: Electromotor Telecommunications, Logging Vehicles Forklifts and on.

Availability:

Quantity:



Inquire Add to Basket

Model:
SDS-24S48
Brand:
SMUN

24V to 48V Series

This highly efficient switch mode step-up DC-DC converter converts an input voltage of 24 VDC nominal (range 18 VDC to 35 VDC) to a highly regulated output voltage of 48 VDC nominal. These DC-DC converters is non-isolated (no galvanic isolation between input and output) and meant for use in negative ground systems. Features include waterproof, overcurrent and overvoltage protection.

Model No.	Input voltage	Output voltage	Output current	Rated power	Efficiency	Size

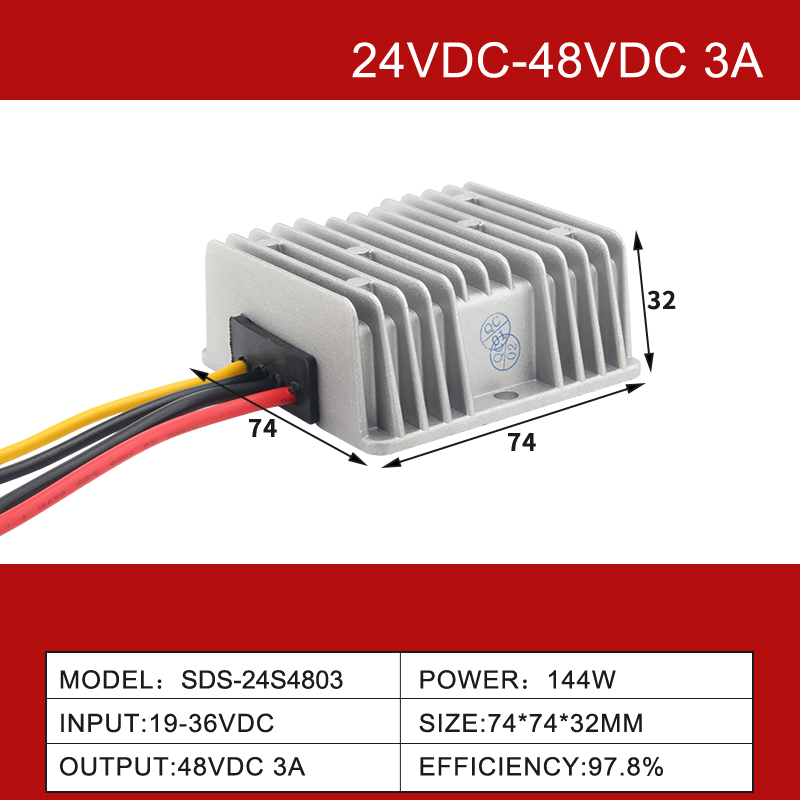

SDS-24S4803	19-36VDC	48VDC	3 Amps	144W	97.80%	747432mm
SDS-24S4805	19-36VDC	48VDC	5 Amps	240W	98.20%	747432mm

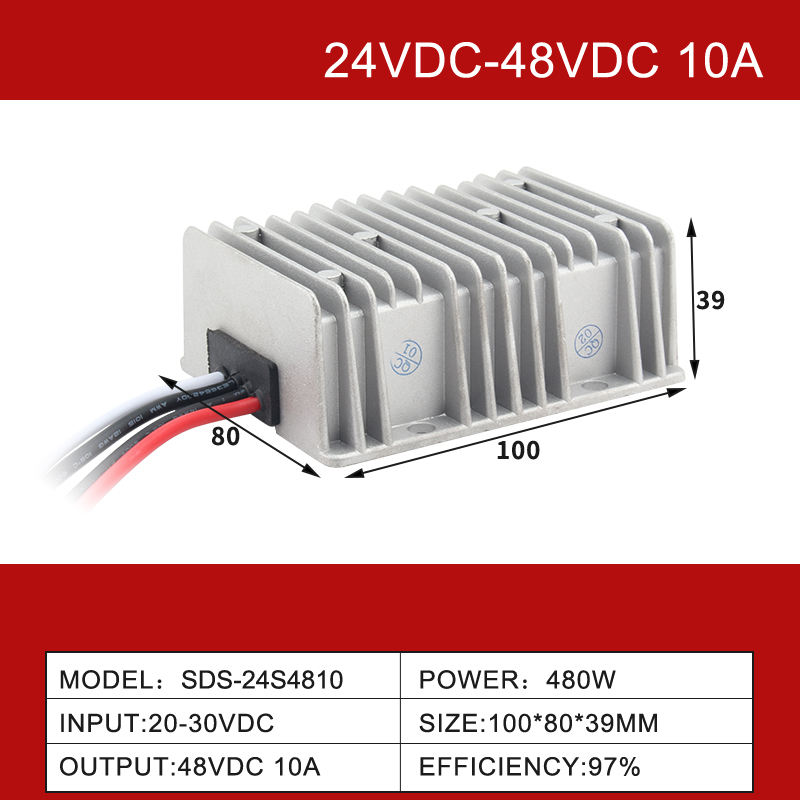

SDS-24S4810	20-30VDC	48VDC	10 Amps	480W	97%	1008039mm
SDS-24S4815	18-32VDC	48VDC	15 Amps	720W	97.30%	1008039mm

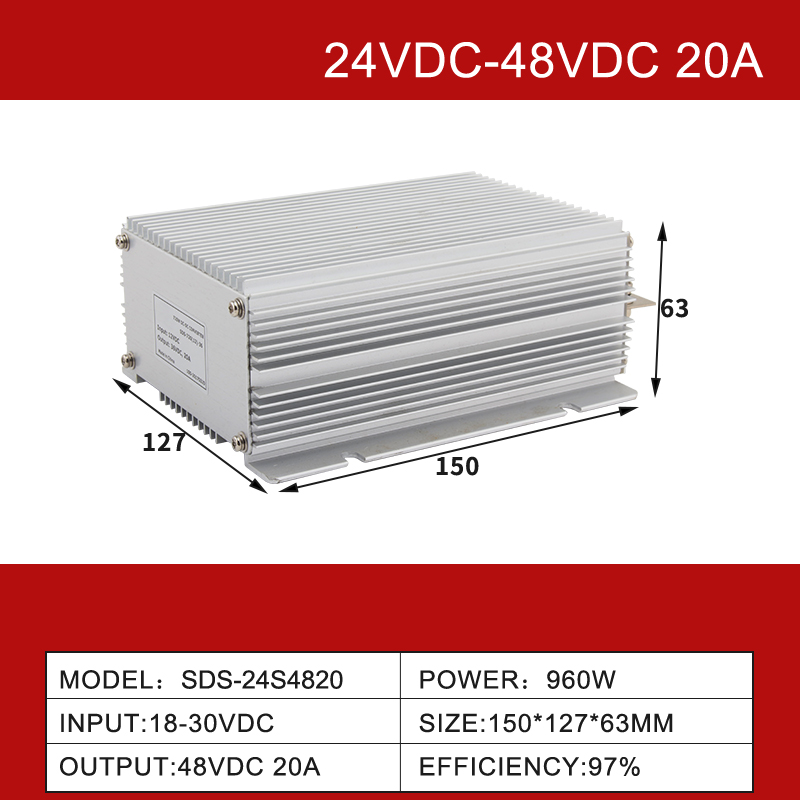

SDS-24S4820	18-30VDC	48VDC	20 Amps	960W	97%	15012763mm
SDS-24S4832	18-30VDC	48VDC	32 Amps	1500W	96%	15012763mm

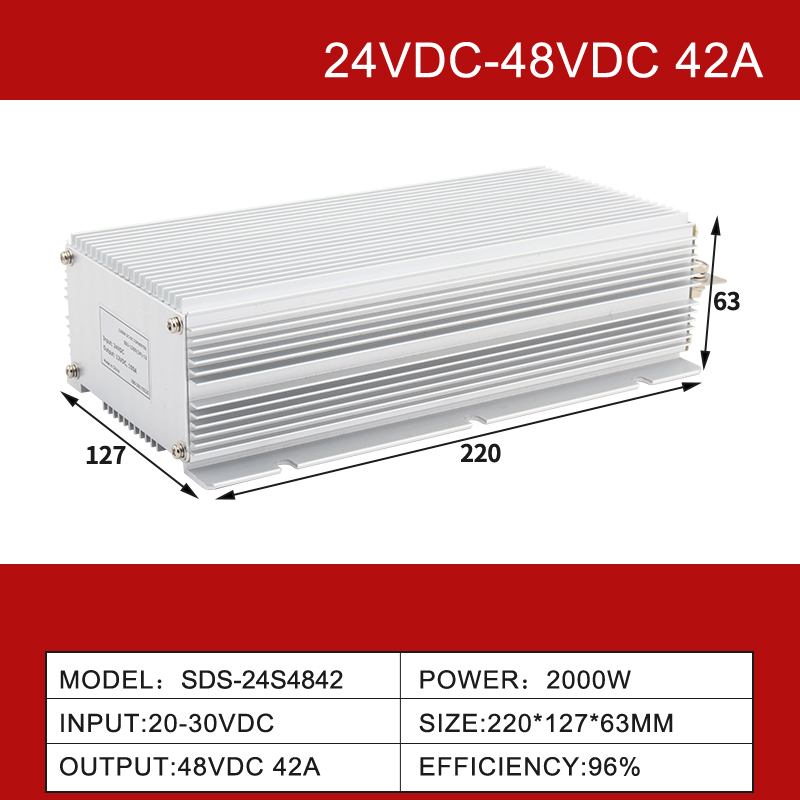

SDS-24S4842	20-30VDC	48VDC	42 Amps	2000W	96%	22012763mm
