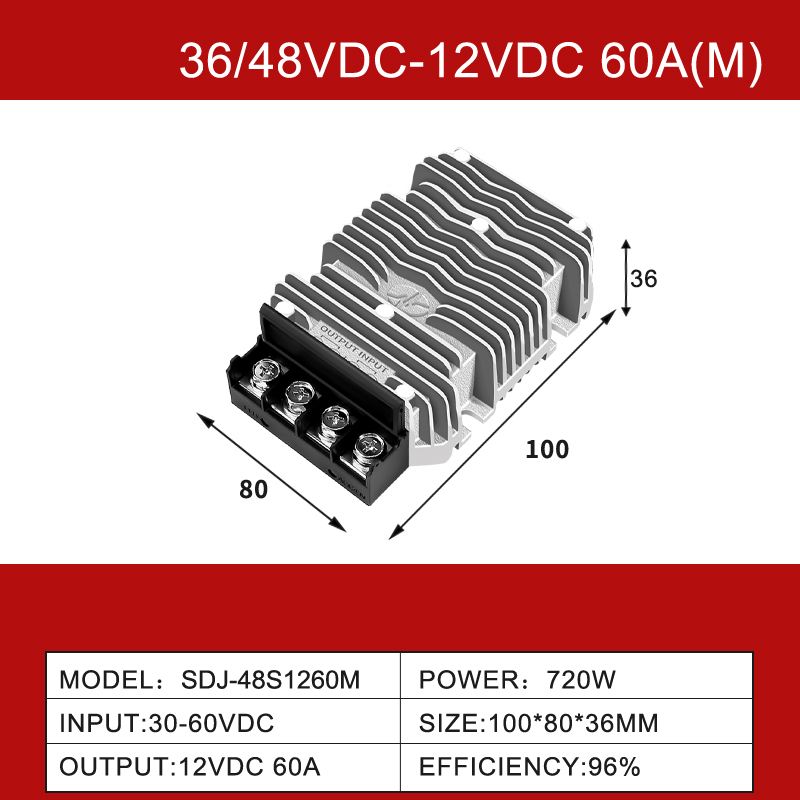

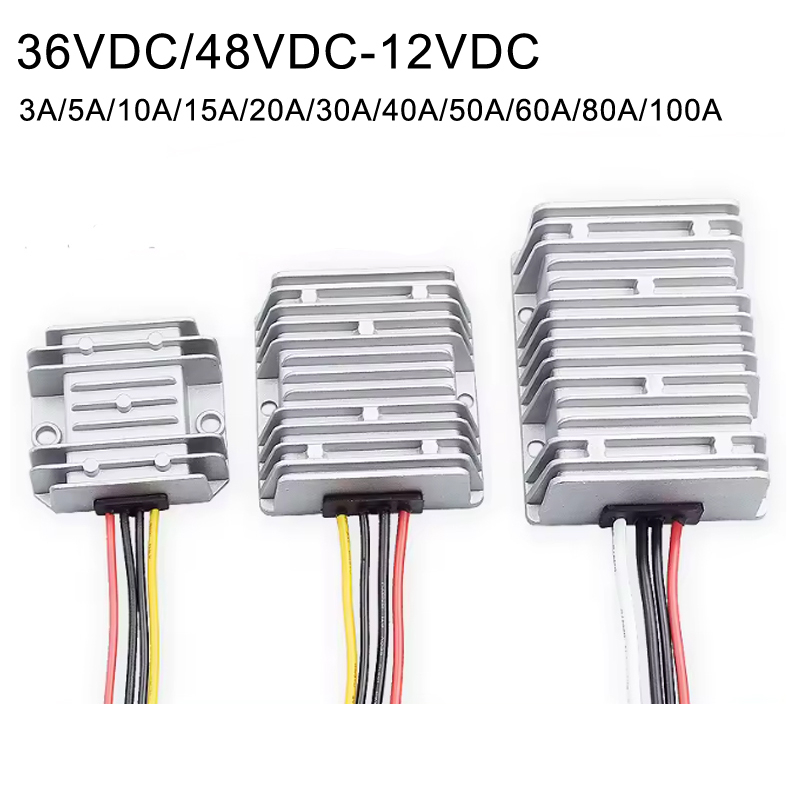

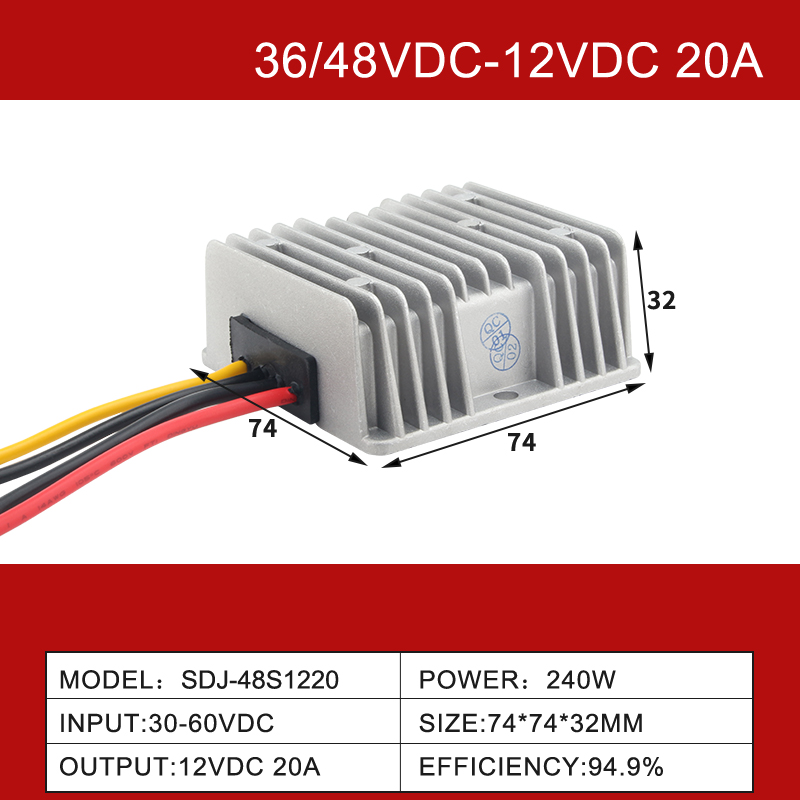

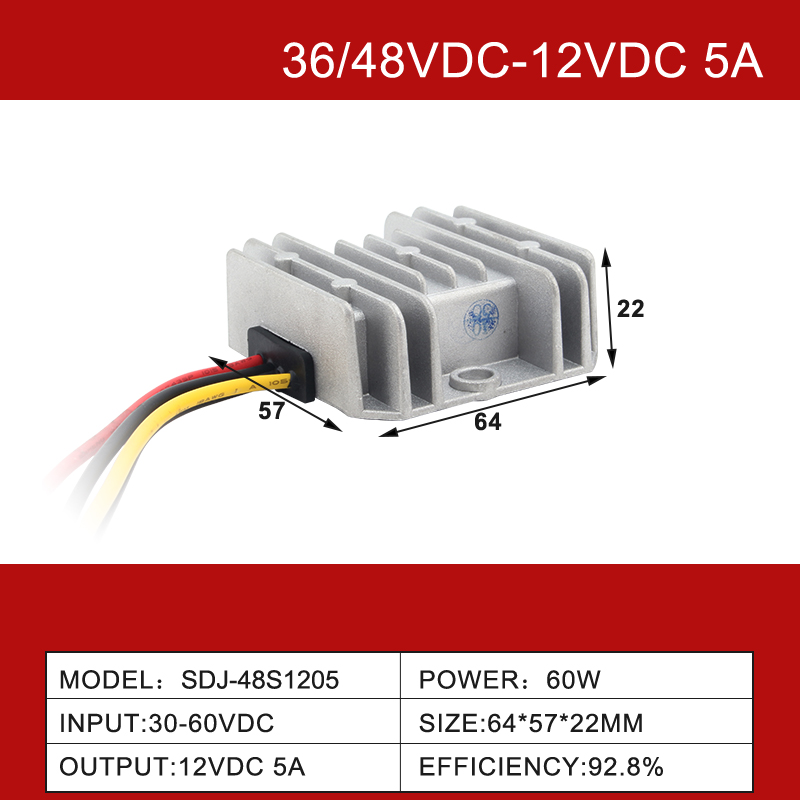

48V to 12V Series
This highly efficient switch mode step-dwon DC-DC converter converts an input voltage of 48 VDC nominal (range 35 VDC to 60 VDC) to a highly regulated output voltage of 12 VDC nominal. These DC-DC converters is non-isolated (no galvanic isolation between input and output) and meant for use in negative ground systems. Features include waterproof, overcurrent,short-circuit and overvoltage protection.
More details,please see datasheets
Design meeting ROHS / CE
High efficiency: 94% (@36V input)
Non-isolated between input and output
lnternal capacitor: NCC & NICHICON (high reliability)
100% full load burn-in test
Waterproof level IP68, 1-3 years warranty
Short circuit,Over load, and Over temperature protections
Applications: Electromotor Telecommunications, Logging Vehicles Forklifts and so on.
48V to 12V Series
This highly efficient switch mode step-dwon DC-DC converter converts an input voltage of 48 VDC nominal (range 35 VDC to 60 VDC) to a highly regulated output voltage of 12 VDC nominal. These DC-DC converters is non-isolated (no galvanic isolation between input and output) and meant for use in negative ground systems. Features include waterproof, overcurrent,short-circuit and overvoltage protection.
More details,please see datasheets
Design meeting ROHS / CE
High efficiency: 94% (@36V input)
Non-isolated between input and output
lnternal capacitor: NCC & NICHICON (high reliability)
100% full load burn-in test
Waterproof level IP68, 1-3 years warranty
Short circuit,Over load, and Over temperature protections
Applications: Electromotor Telecommunications, Logging Vehicles Forklifts and so on.
