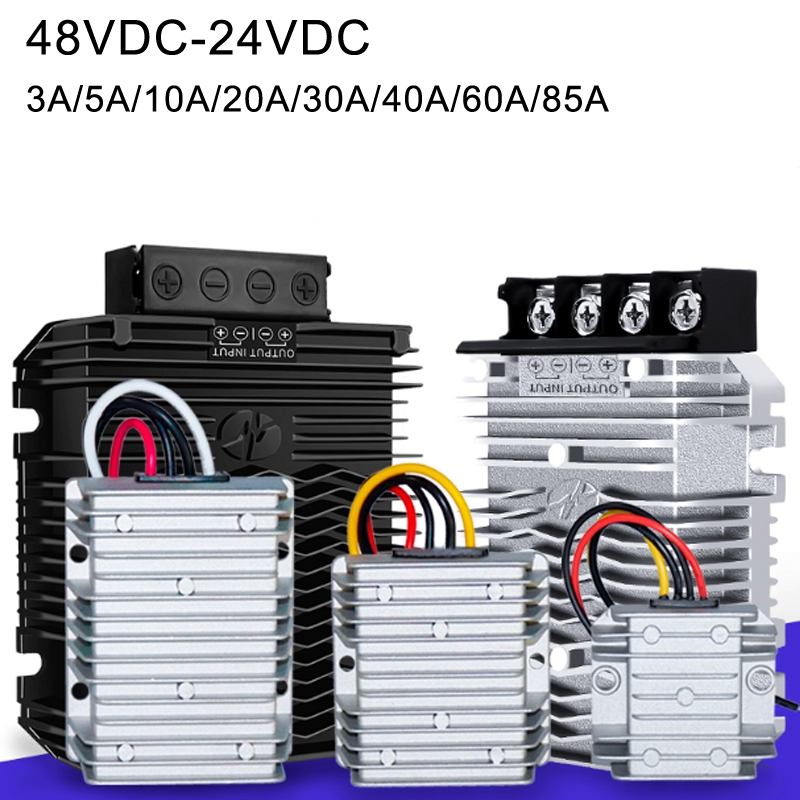

48V to 24V Series
This highly efficient switch mode step-dwon DC-DC converter converts an input voltage of 48 VDC nominal (range 35 VDC to 60 VDC) to a highly regulated output voltage of 24 VDC nominal. These DC-DC converters is non-isolated (no galvanic isolation between input and output) and meant for use in negative ground systems. Features include waterproof, overcurrent,short-circuit and overvoltage protection.

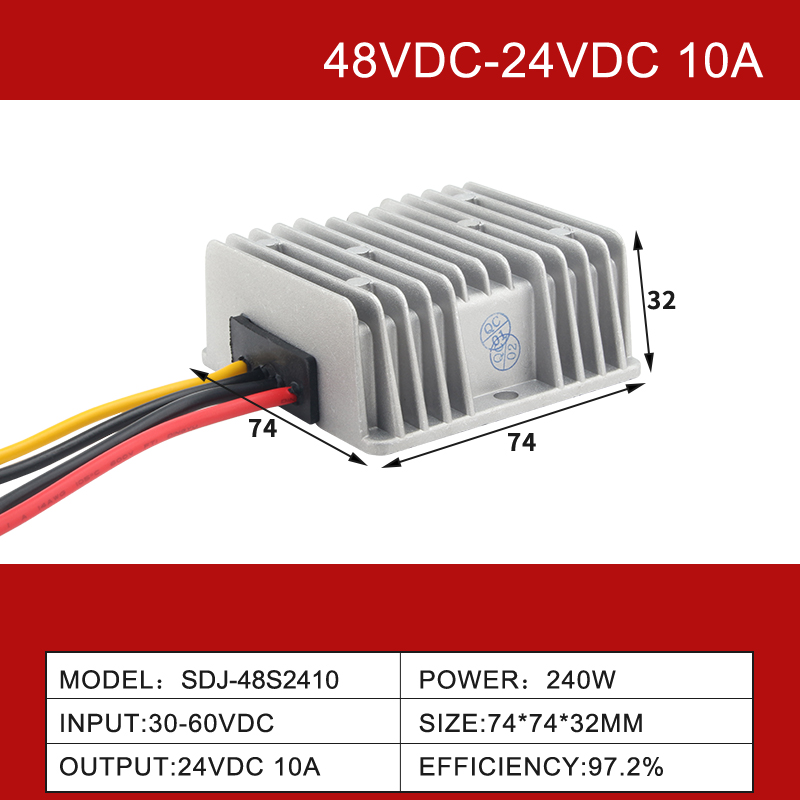

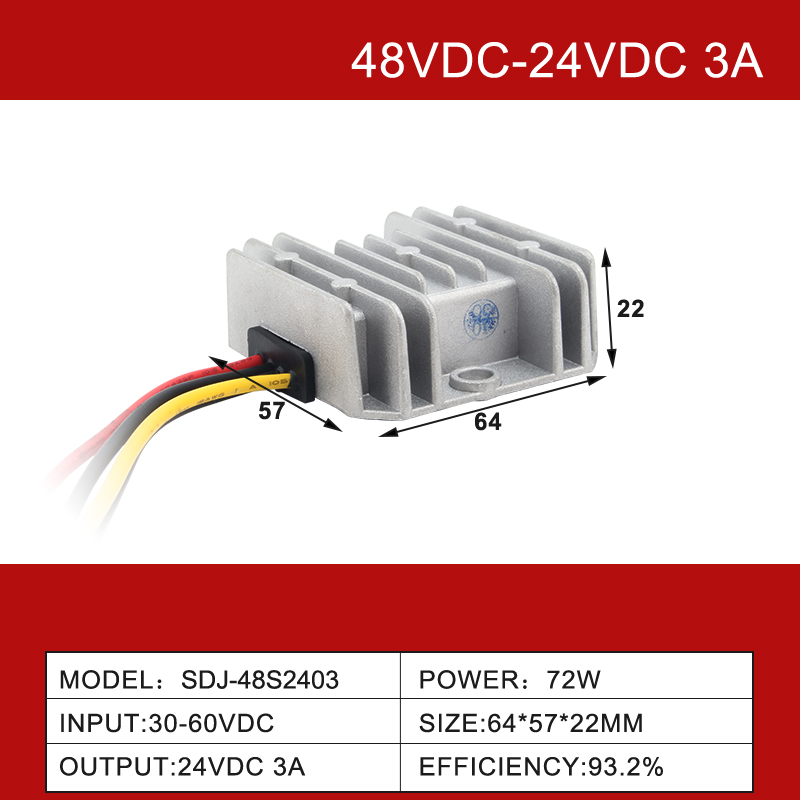

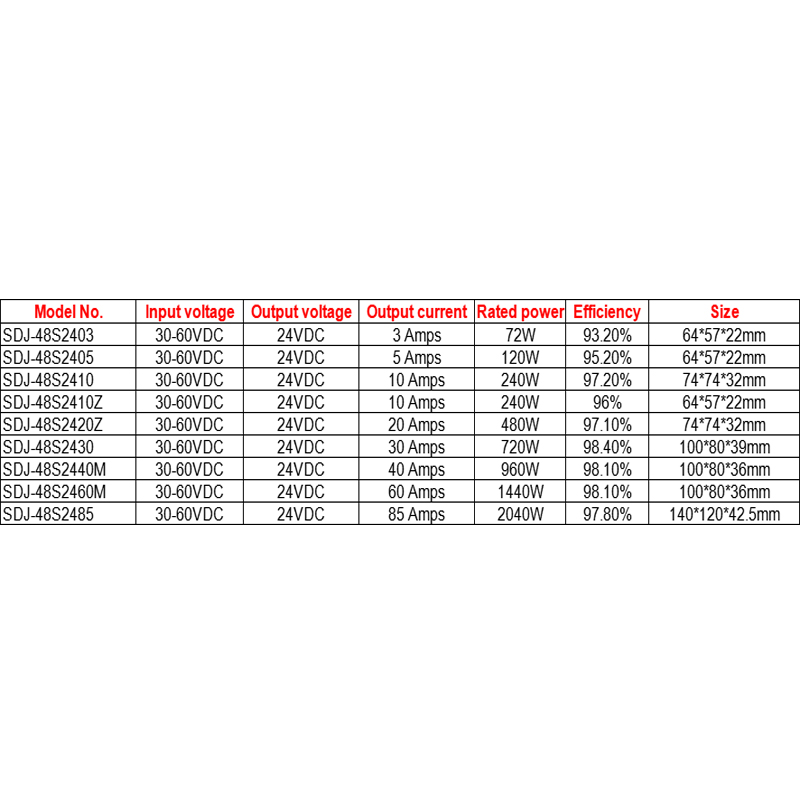

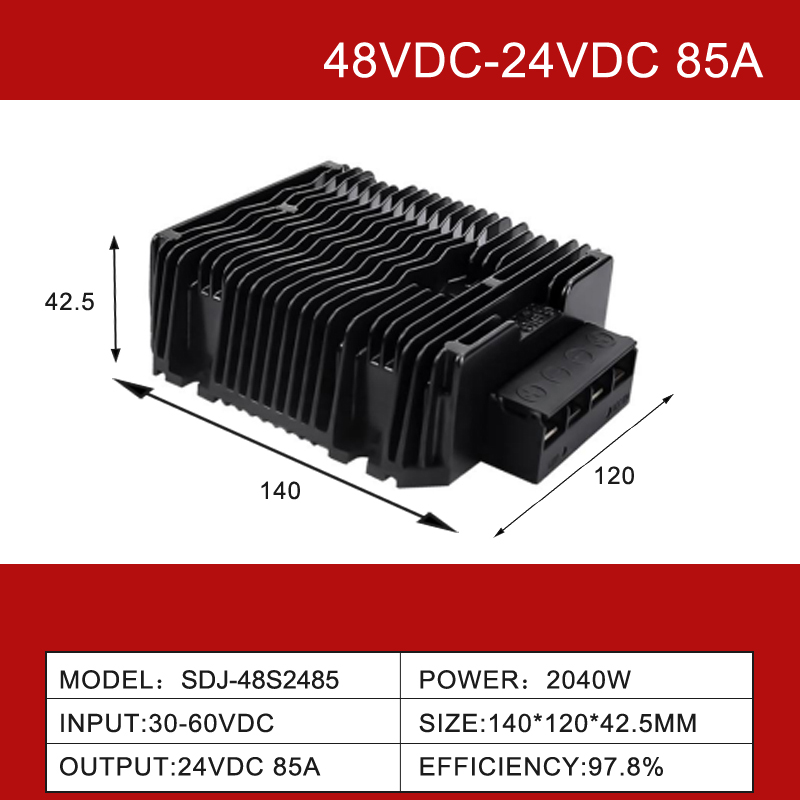

Model No. Input voltage Output voltage Output current Rated power Efficiency Size SDJ-48S2403 30-60VDC 24VDC 3 Amps 72W 93.20% 64*57*22mm SDJ-48S2405 30-60VDC 24VDC 5 Amps 120W 95.20% 64*57*22mm SDJ-48S2410 30-60VDC 24VDC 10 Amps 240W 97.20% 74*74*32mm SDJ-48S2410Z 30-60VDC 24VDC 10 Amps 240W 96% 64*57*22mm SDJ-48S2420Z 30-60VDC 24VDC 20 Amps 480W 97.10% 74*74*32mm SDJ-48S2430 30-60VDC 24VDC 30 Amps 720W 98.40% 100*80*39mm SDJ-48S2440M 30-60VDC 24VDC 40 Amps 960W 98.10% 100*80*36mm SDJ-48S2460M 30-60VDC 24VDC 60 Amps 1440W 98.10% 100*80*36mm SDJ-48S2485 30-60VDC 24VDC 85 Amps 2040W 97.80% 140*120*42.5mm
More details,please see datasheets.
Design meeting ROHS / CE
High efficiency: 98% (@48V input)
Non-isolated between input and output
lnternal capacitor: NCC & NICHICON (high reliability)
100% full load burn-in test
Waterproof level IP68
Short circuit,Over load, and Over temperature protections
Applications: Electromotor, Telecommunications, Logging Vehicles Forklifts and on.
48V to 24V Series
This highly efficient switch mode step-dwon DC-DC converter converts an input voltage of 48 VDC nominal (range 35 VDC to 60 VDC) to a highly regulated output voltage of 24 VDC nominal. These DC-DC converters is non-isolated (no galvanic isolation between input and output) and meant for use in negative ground systems. Features include waterproof, overcurrent,short-circuit and overvoltage protection.
Model No. Input voltage Output voltage Output current Rated power Efficiency Size SDJ-48S2403 30-60VDC 24VDC 3 Amps 72W 93.20% 64*57*22mm SDJ-48S2405 30-60VDC 24VDC 5 Amps 120W 95.20% 64*57*22mm SDJ-48S2410 30-60VDC 24VDC 10 Amps 240W 97.20% 74*74*32mm SDJ-48S2410Z 30-60VDC 24VDC 10 Amps 240W 96% 64*57*22mm SDJ-48S2420Z 30-60VDC 24VDC 20 Amps 480W 97.10% 74*74*32mm SDJ-48S2430 30-60VDC 24VDC 30 Amps 720W 98.40% 100*80*39mm SDJ-48S2440M 30-60VDC 24VDC 40 Amps 960W 98.10% 100*80*36mm SDJ-48S2460M 30-60VDC 24VDC 60 Amps 1440W 98.10% 100*80*36mm SDJ-48S2485 30-60VDC 24VDC 85 Amps 2040W 97.80% 140*120*42.5mm
More details,please see datasheets.
Design meeting ROHS / CE
High efficiency: 98% (@48V input)
Non-isolated between input and output
lnternal capacitor: NCC & NICHICON (high reliability)
100% full load burn-in test
Waterproof level IP68
Short circuit,Over load, and Over temperature protections
Applications: Electromotor, Telecommunications, Logging Vehicles Forklifts and on.
