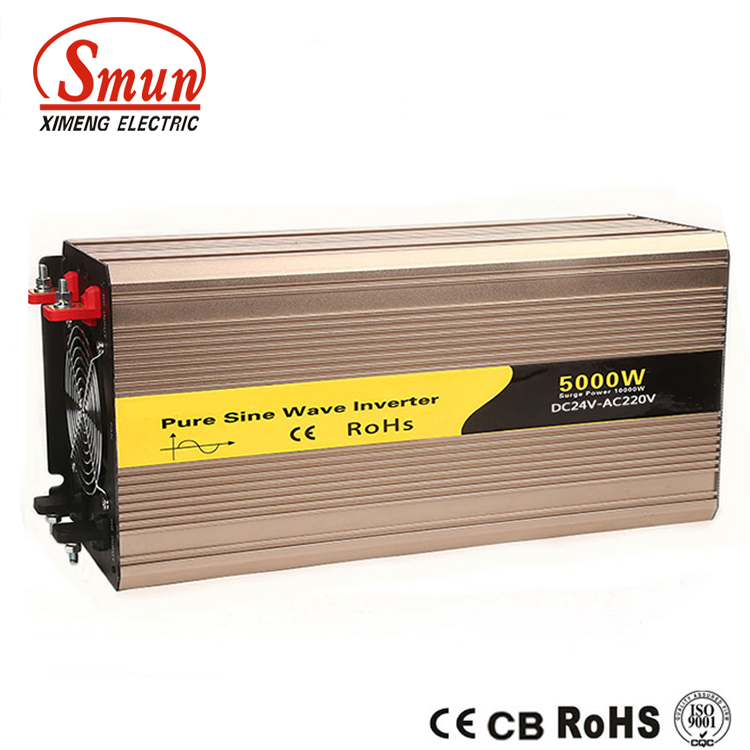

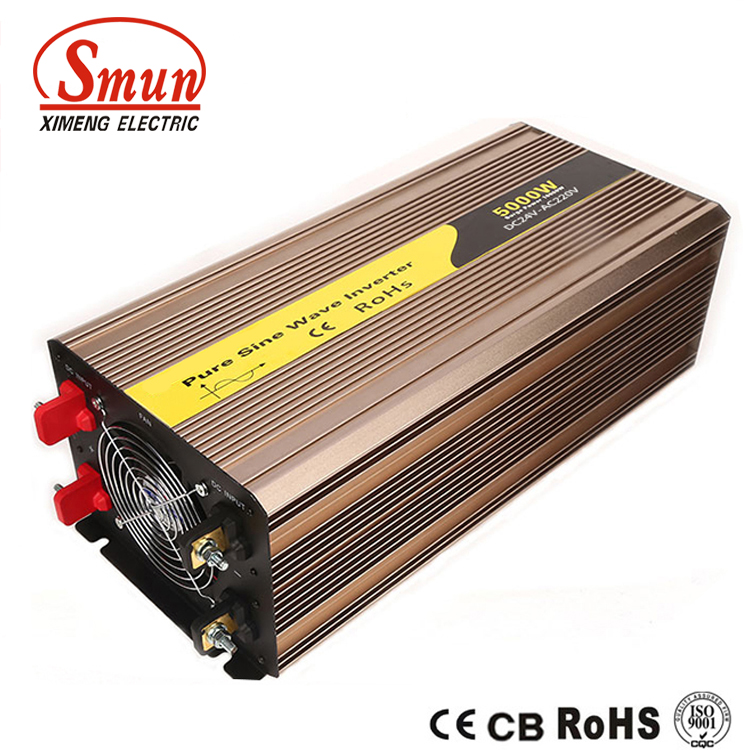

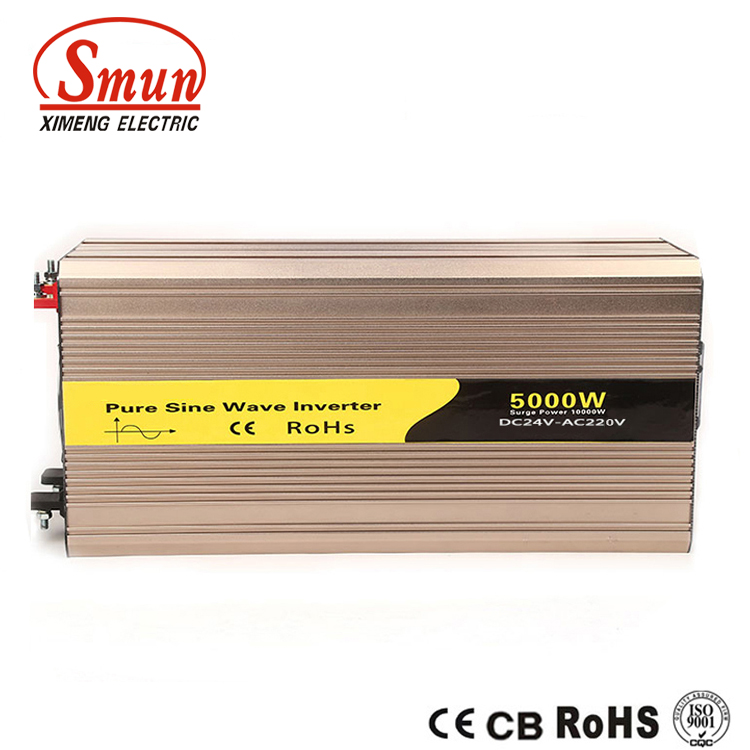

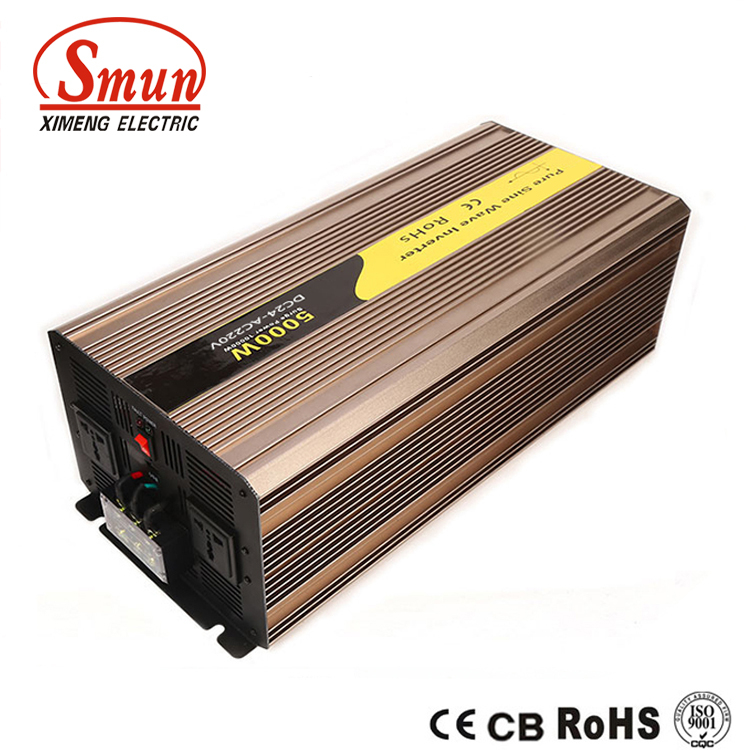

The XM-DZ-5000 is a 5000W pure sine wave inverter built for serious off-grid power—whole RV electrical systems, off-grid cabins, solar battery banks, work trucks, boats and emergency home backup. It converts your 12V / 24V / 48V battery bank into stable household AC power with a 10000W surge peak, so you can run refrigerators, microwaves, air conditioners, power tools and office equipment with confidence.
Why Pure Sine Wave Matters
Unlike modified sine wave units, the XM-DZ-5000 outputs a smooth sinusoidal waveform with THD < 3% (linear load)—essentially identical to mains electricity. That means no buzzing in audio equipment, no overheating in motors, no flicker on screens, and no risk to sensitive electronics. If you're powering anything with a motor, compressor or digital control board, pure sine wave isn't a luxury—it's a requirement.
Built to Survive Real-World Loads
The inverter works in two stages: a DC-DC boost stage raises battery voltage to a high-voltage DC bus, then a full-bridge MOSFET/IGBT stage converts it to clean AC. Soft-start technology absorbs the inrush current when a compressor kicks in, while the microprocessor continuously monitors voltage, current and temperature. Six protection layers automatically shut the unit down before anything gets damaged—and the LCD tells you exactly what happened.
Smart Cooling, Quiet Operation
The intelligent air-cooling system keeps the fan off during light loads and spins it up only when temperature or load rises. Result: longer fan life, less dust intake, and near-silent operation when you don't need full power.
Monitor Everything at a Glance
The front-panel LCD shows input voltage, output voltage, current load in watts, output frequency and battery capacity in real time. A green POWER LED confirms normal operation; a red FAULT LED with audible alarm flags any protection event immediately.
Choose the Right Voltage for Your System
This model is available in 12V, 24V and 48V input versions. For a 5000W system we strongly recommend the 48V version—at 48V, full load draws roughly 116A versus roughly 231A at 24V and over 460A at 12V. Lower current means thinner cables, less heat, higher efficiency and a far safer installation.
Parameter | DC 12V | DC 24V | DC 48V |
Model | \multicolumn{3}{c}{...} | — | — |
Model No. | XM-DZ-5000 | | |
Rated Power | 5000W | 5000W | 5000W |
Peak / Surge Power | 10000W | 10000W | 10000W |
Output Voltage | 100/110/120VAC ±5% or 220/230/240VAC ±5% | | |
Output Frequency | 50Hz ±0.5Hz or 60Hz ±0.5Hz | | |
Output Waveform | Pure Sine Wave (THD < 3% linear load) | | |
Input Voltage Range | 10–15.5V | 20–31V | 40–61V |
No-Load Current | < 1.2A | < 0.81A | < 0.56A |
Low Voltage Alarm | 10.5 ±0.5V | 21 ±0.5V | 42 ±1V |
Low Voltage Protection | 10 ±0.5V | 20 ±0.5V | 40 ±1V |
Over Voltage Protection | 15.5 ±0.5V | 31 ±0.5V | 61 ±1V |
Low Voltage Recovery | 13 ±0.5V | 24 ±0.5V | 48 ±1V |
Over Voltage Recovery | 14.8 ±0.5V | 29.5 ±0.5V | 59 ±1V |
USB Output | 5V 1A | | |
Max Efficiency | 90% | | |
Cooling | Intelligent air cooling (temperature-controlled fan) | | |
Protection | Low voltage / Over voltage / Overload / Over temperature / Short circuit / Reverse polarity (fuse) | | |
Working Temperature | -10°C to +50°C | | |
Storage Temperature | -30°C to +70°C | | |
Product Dimension | 505 × 220 × 160 mm | | |
Package Dimension | 590 × 310 × 245 mm | | |
Net / Gross Weight | 10.0 kg / 12.06 kg | | |
Carton | 1 pc / carton, G.W. 13.1 kg | | |
Warranty | 1 year | | |
