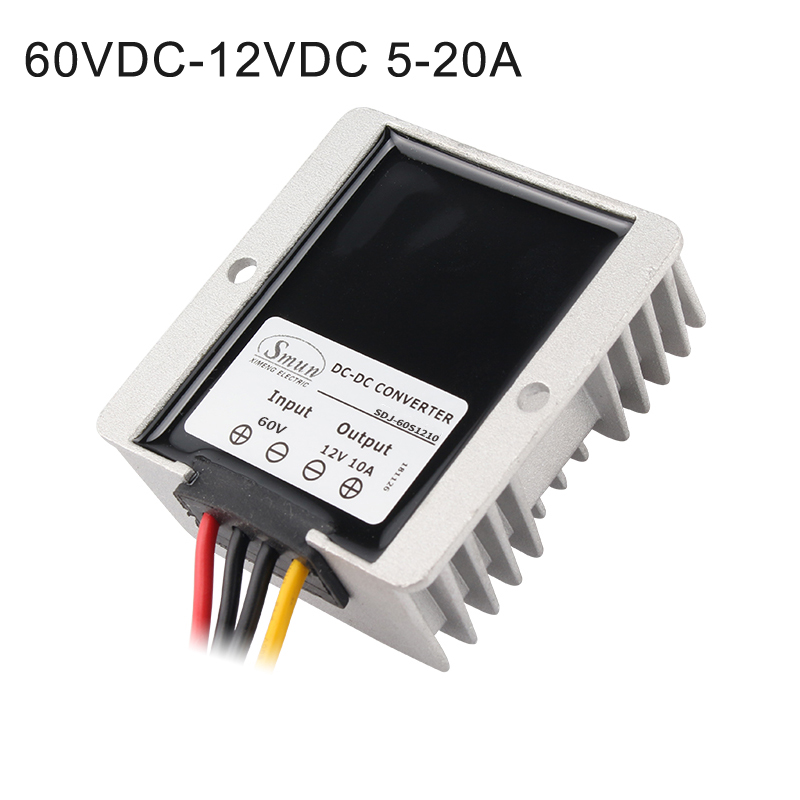

60V to 12V 5A 10A 15A 20A Non-isolated Waterproof DC-DC Converter Step Down Driver

60V to 12V DC-DC Buck Power Converters for Golf Carts
Features
Design meeting ROHS / CE
High efficiency: 93% (@60V input)
Non-isolated between input and output
lnternal capacitor: NCC & NICHICON (high reliability)
100% full load burn-in test
Waterproof level IP68
Short circuit,Over load, and Over temperature protections
Applications: Electromotor, Telecommunications, Logging Vehicles Forklifts and on.
Availability:
Quantity:
Inquire Add to Basket

  • SDJ-60S12

  • SMUN

60V to 12V Series

This highly efficient switch mode step-dwon DC-DC converter converts an input voltage of 60 VDC nominal (range 35 VDC to 72 VDC) to a highly regulated output voltage of 12 VDC nominal. These DC-DC converters is non-isolated (no galvanic isolation between input and output) and meant for use in negative ground systems. Features include waterproof, overcurrent,short-circuit and overvoltage protection.


Features
Design meeting ROHS / CE
High efficiency: 93% (@60V input)
Non-isolated between input and output
lnternal capacitor: NCC & NICHICON (high reliability)
100% full load burn-in test
Waterproof level IP68
Short circuit,Over load, and Over temperature protections

Applications: Electromotor, Telecommunications, Logging Vehicles Forklifts and on.

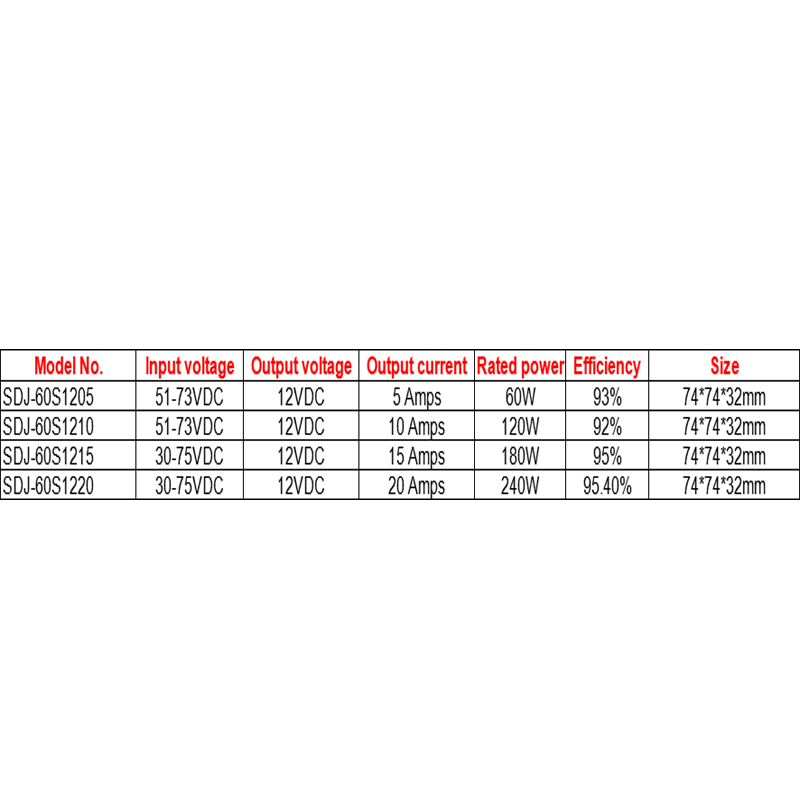

Model No. Input voltage Output voltage Output current Rated power Efficiency Size

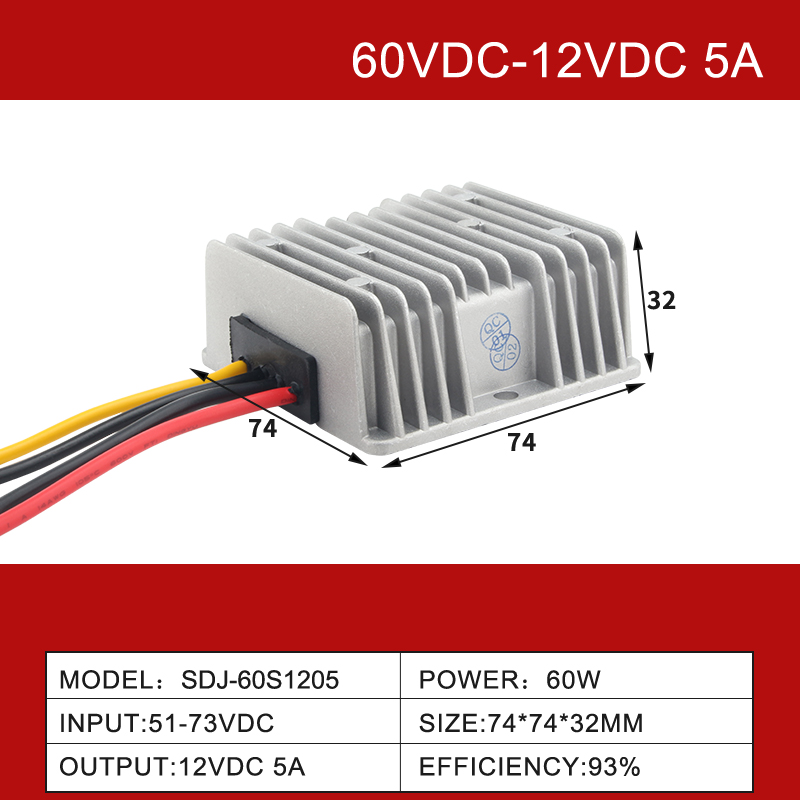

SDJ-60S1205 51-73VDC 12VDC 5 Amps 60W 93% 74*74*32mm
SDJ-60S1210 51-73VDC 12VDC 10 Amps 120W 92% 74*74*32mm
SDJ-60S1215 30-75VDC 12VDC 15 Amps 180W 95% 74*74*32mm
SDJ-60S1220 30-75VDC 12VDC 20 Amps 240W 95.40% 74*74*32mm



60v-12v 15a converter


download SDJ-60S1205.pdf

download SDJ-60S1210.pdf

download SDJ-60S1215.pdf

download SDJ-60S1220.pdf
