9-40V to 24V 2-30A Single Output Non-isolated DC-DC Boost Buck Car Converter
9-40V to 24V Step-down/Step-up DC-DC Power Converters
Features Design meeting ROHS / CE High efficiency: 95% ( @24V input ) Non-isolated between input and output lnternal capacitor:NCC & NICHICON ( high reliability ) 100% full load burn-in test Waterproof level IP68, 3 years warranty Short circuit,Over load, and Over temperature protections Applications: Electromotor Telecommunications, Logging Vehicles Forklifts and on.
Wide input voltage from 9-40Vdc, Output power ranges from 48W to 720W. This series is eminently suitable for applications requiring stability, and, above all, low energy consumption. To your 24 Volt system, these products are also distinguished by high efficiency, together with absolute safety.
Model No.
Input voltage
Output voltage
Output current
Rated power
Efficiency
Size

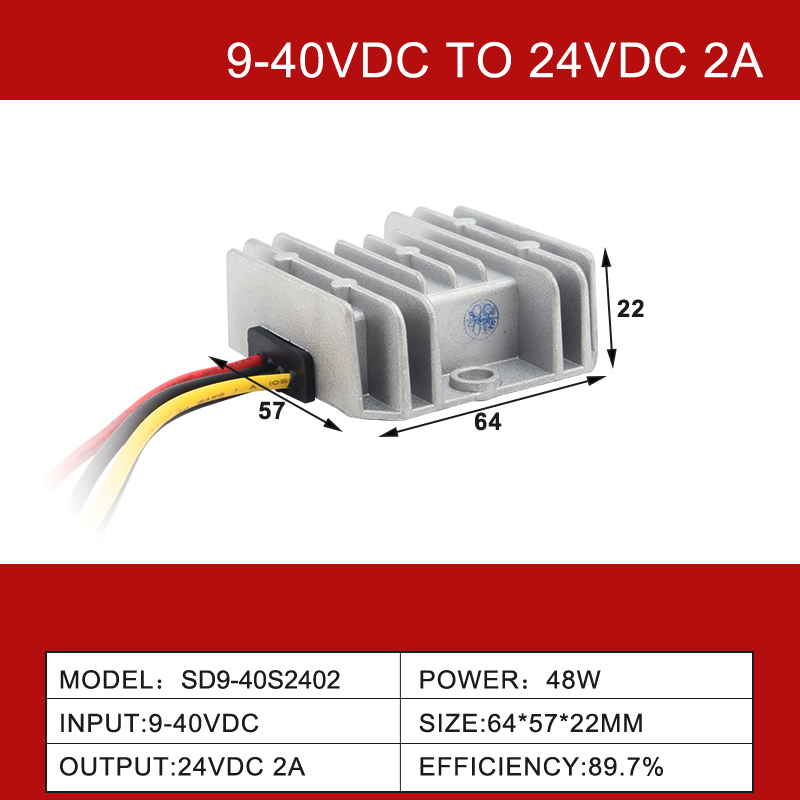

SD9-40S2402
9-40VDC
24VDC
2 Amps
48W
89.70%
64*57*22mm
SD9-40S2403Z
9-40VDC
24VDC
3 Amps
72W
96.90%
64*57*22mm
SD9-40S2406
9-40VDC
24VDC
6 Amps
144W
92.70%
74*74*32mm

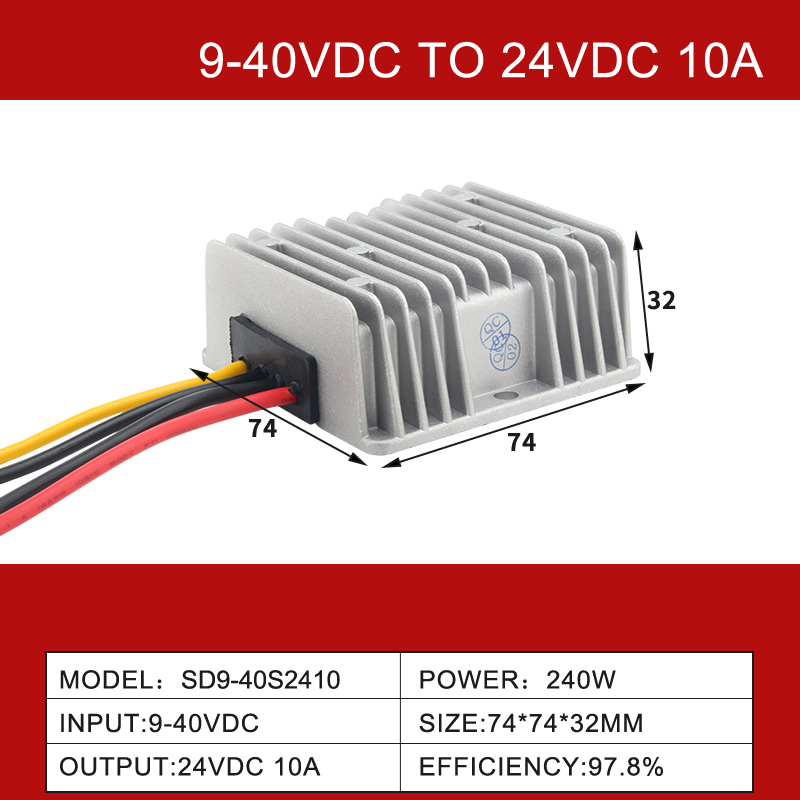

SD9-40S2410
9-40VDC
24VDC
10 Amps
240W
97.80%
74*74*32mm
SD9-40S2415
9-40VDC
24VDC
15 Amps
360W
98.20%
100*80*39mm

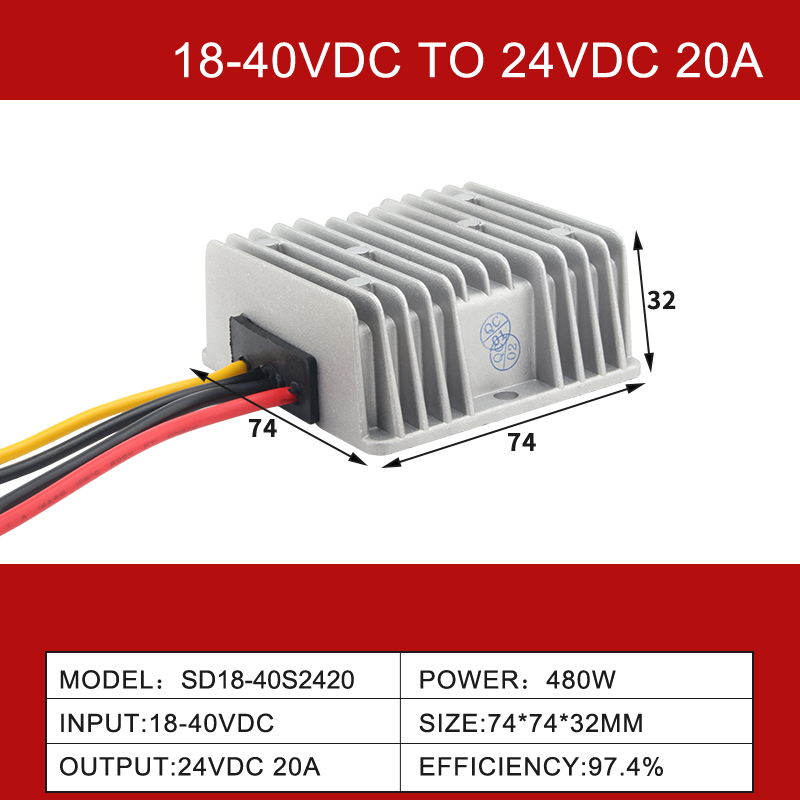

SD18-40S2420
18-40VDC
24VDC
20 Amps
480W
97.40%
74*74*32mm

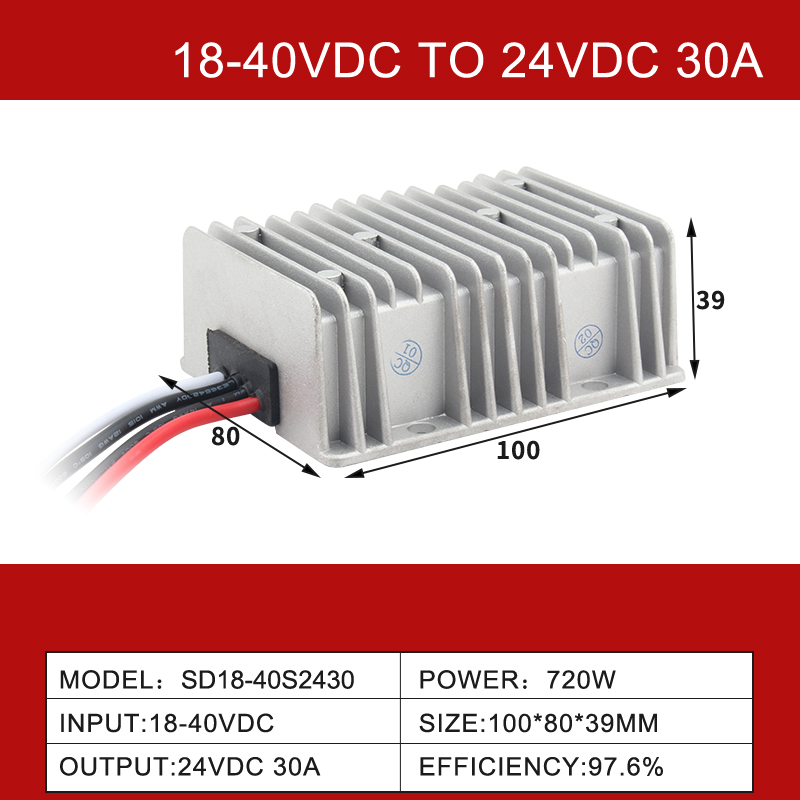

SD18-40S2430
18-40VDC
24VDC
30 Amps
720W
97.60%
100*80*39mm
SD10-44S2430
10-44VDC
24VDC
30 Amps
720W
95.30%
140*120*42.5mm
Features
Design meeting ROHS / CE
High efficiency: 95% ( @24V input )
Non-isolated between input and output
lnternal capacitor:NCC & NICHICON ( high reliability )
100% full load burn-in test
Waterproof level IP68, 3 years warranty
Short circuit,Over load, and Over temperature protections
Applications: Electromotor Telecommunications, Logging Vehicles Forklifts and on.
