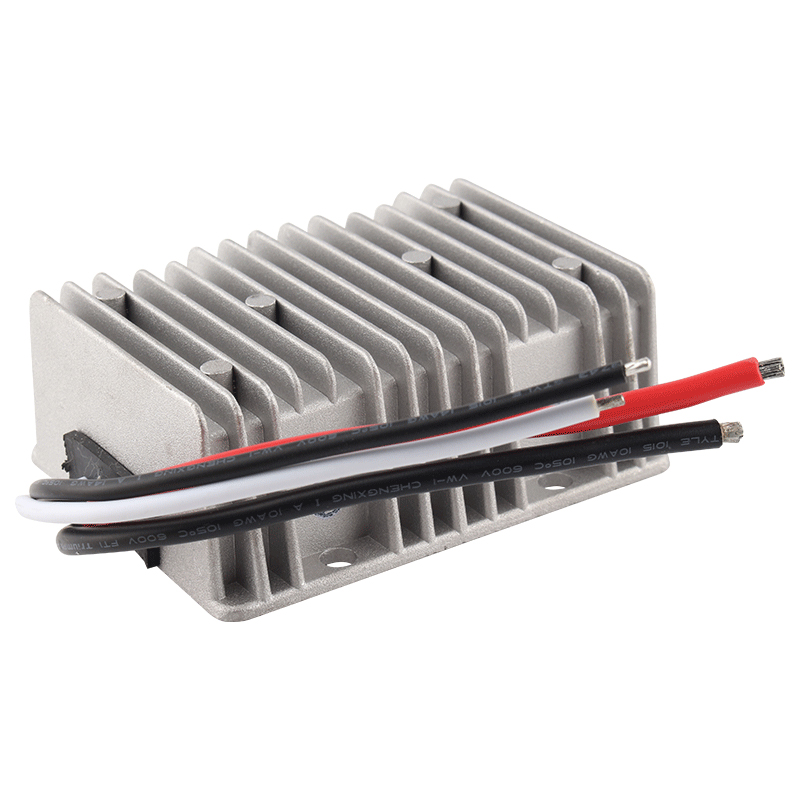

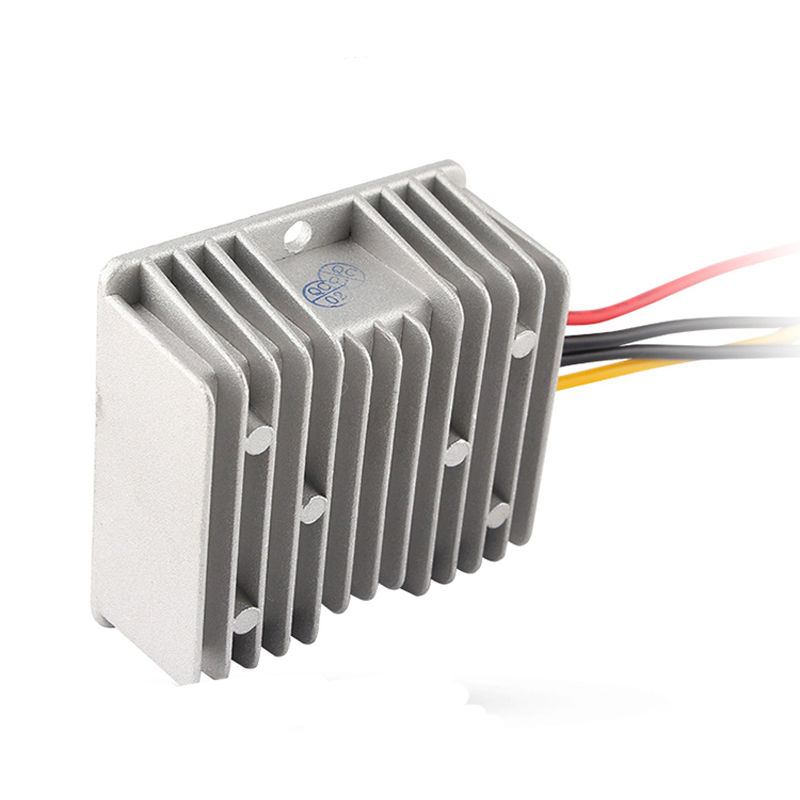

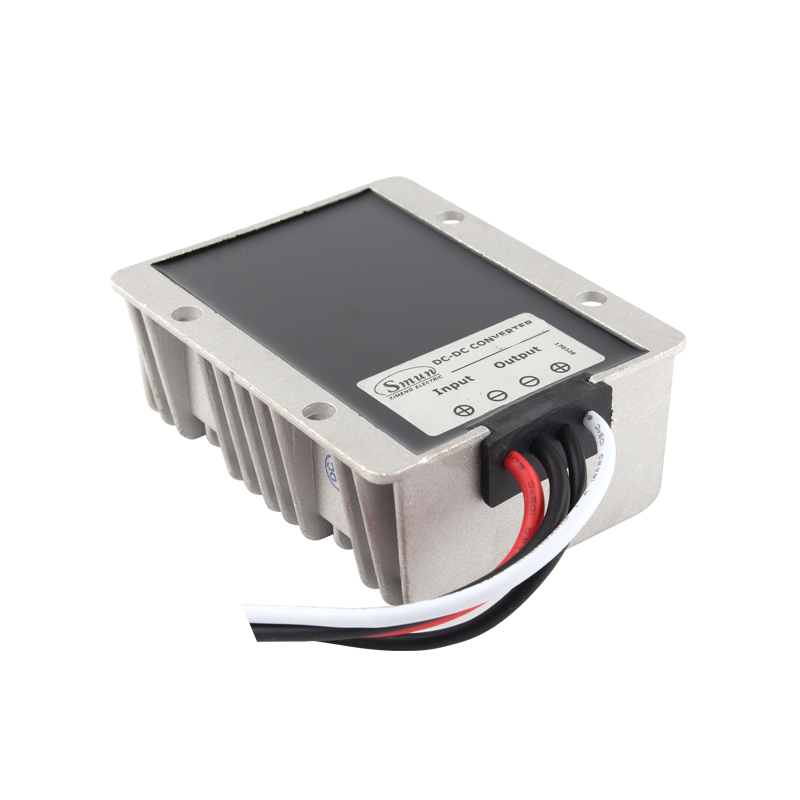

9-40VDC Input 19VDC 5-15A Single Output Non-isolated Waterproof Boost-Buck DC-DC Converter Car Converter

Share to:

9-40VDC Input 19VDC 5-15A Single Output Non-isolated Waterproof Boost-Buck DC-DC Converter Car Converter

Name: 9-40VDC Input 19VDC 5-15A Single Output Non-isolated Waterproof Boost-Buck DC-DC Converter Car Converter
Brand: SMUN
Rating: 5.0 (19 reviews)

9-40V to 19V Boost-Buck DC-DC Car Power Converters

Features
Design meeting ROHS / CE
High efficiency: 95% ( @12V input )
Non-isolated between input and output
lnternal capacitor: NCC & NICHICON ( high reliability )
100% full load burn-in test
Waterproof level IP68, 2 years warranty
Short circuit,Over load, and Over temperature protections
Applications: Electromotor Telecommunications, Logging Vehicles Forklifts and on.

Availability:

Quantity:



Inquire Add to Basket

Model:
SDSJ9-40S19
Brand:
SMUN

Description

9-40VDC to 19VDC DC converter with a wide input range; supports 12V, 24V, and 36V input for 19VDC output. Output current options include 5A, 10A, and 15A.

Model No.	Input voltage	Output voltage	Output current	Rated power	Efficiency	Size
SD9-40S1905	9-40VDC	19VDC	5 Amps	95W	94.60%	747432mm
SD9-40S1910	9-40VDC	19VDC	10 Amps	190W	97.70%	747432mm

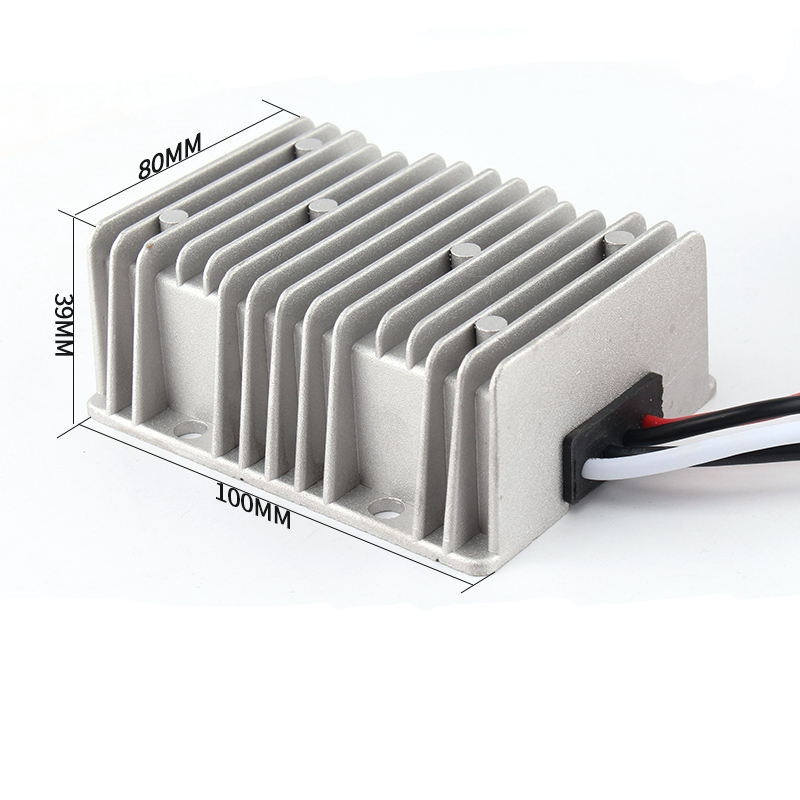

SD9-40S1915	9-40VDC	19VDC	15 Amps	285W	98%	1008039mm
