IEC-inlet CW2B-1A/3A/6A/10A-T EMI Power Filter with Optional Fuse and Switch

Features

IEC-inlet power entry filter,integrated design of module with switch and fuses.

For measuring and mini-electronic instruments

Good performance of interference suppression

Typical applications

Industrial electronic equipment

Medical and commercial equipments

Office and testing equipments

Technical specifications

Maximun continuous operating voltage:250VAC

Operating frequency:50/60Hz

Rated currents:1A-10A@40℃ Max.

High potential test voltage(1 min):Line to Line 1500VDC/Line to Ground 1500VAC

Operation and storage temperature range:-25℃~+85℃ (25/085/21)

Schematic diagram	model	Specs	Current	Note

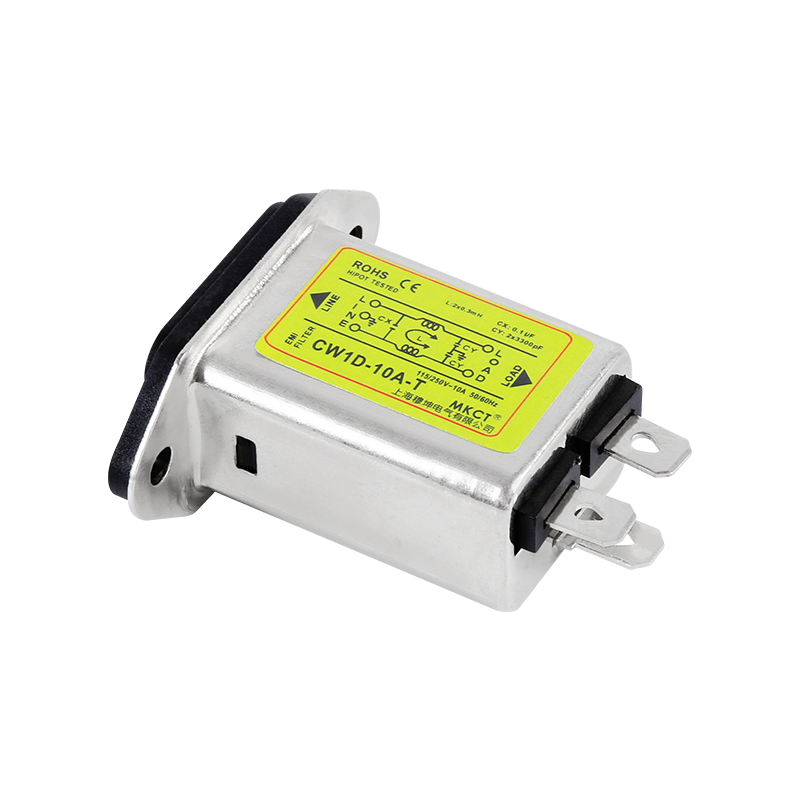

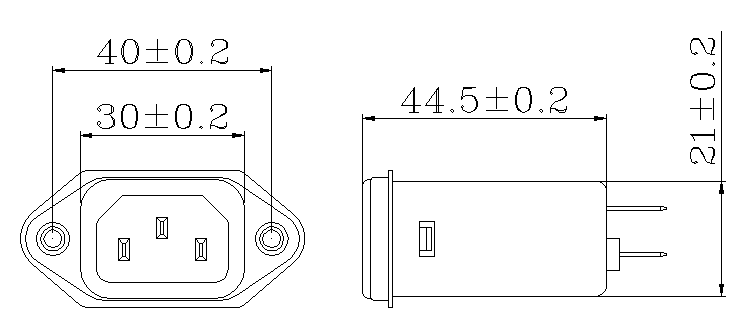

	CW1D-1A-T	IEC socket input	1A
	CW1D-3A-T		3A
	CW1D-6A-T		6A
	CW1D-10A-T		10A

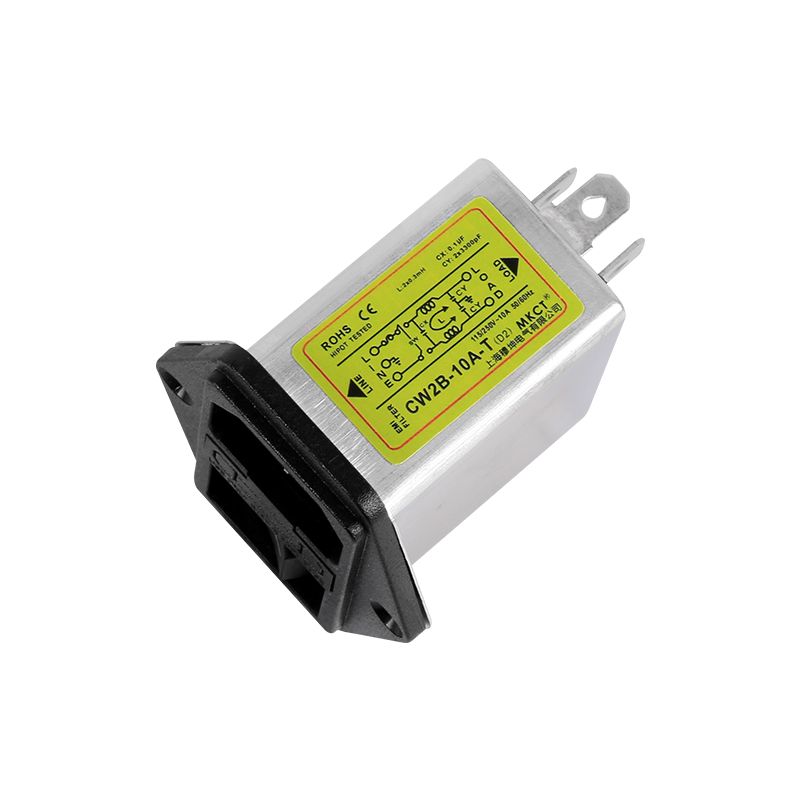

	CW2B-1A-TL(D2)	IEC socket input	1A	Swith with Light
	CW2B-3A-TL(D2)		3A
	CW2B-6A-TL(D2)		6A
	CW2B-10A-TL(D2)		10A
	CW2B-1A-T(D2)	IEC socket input	1A	Switch without light
	CW2B-3A-T(D2)		3A
	CW2B-6A-T(D2)		6A
	CW2B-10A-T(D2)		10A

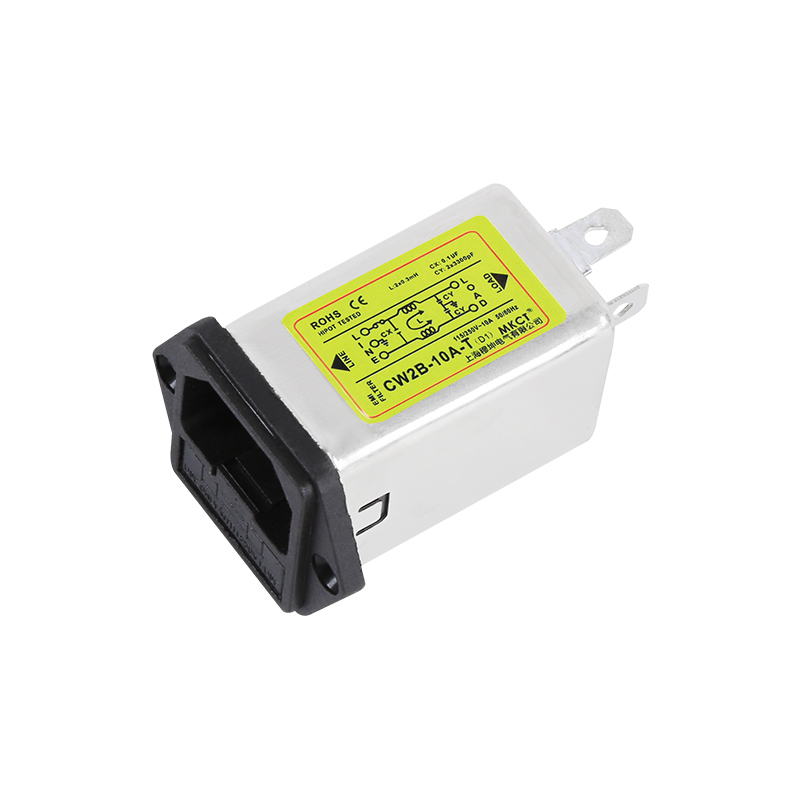

	CW2B-1A-T(D1)	IEC socket input	1A	Single fuse
	CW2B-3A-T(D1)		3A
	CW2B-6A-T(D1)		6A
	CW2B-10A-T(D1)		10A
	CW2B-3A-T2(D1)	IEC socket input	3A	Double fuse
	CW2B-6A-T2(D1)		6A
	CW2B-10A-T2(D1)		10A

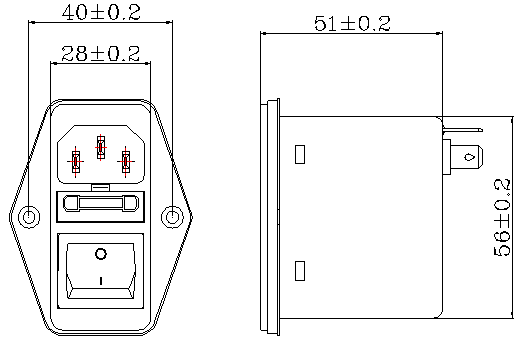

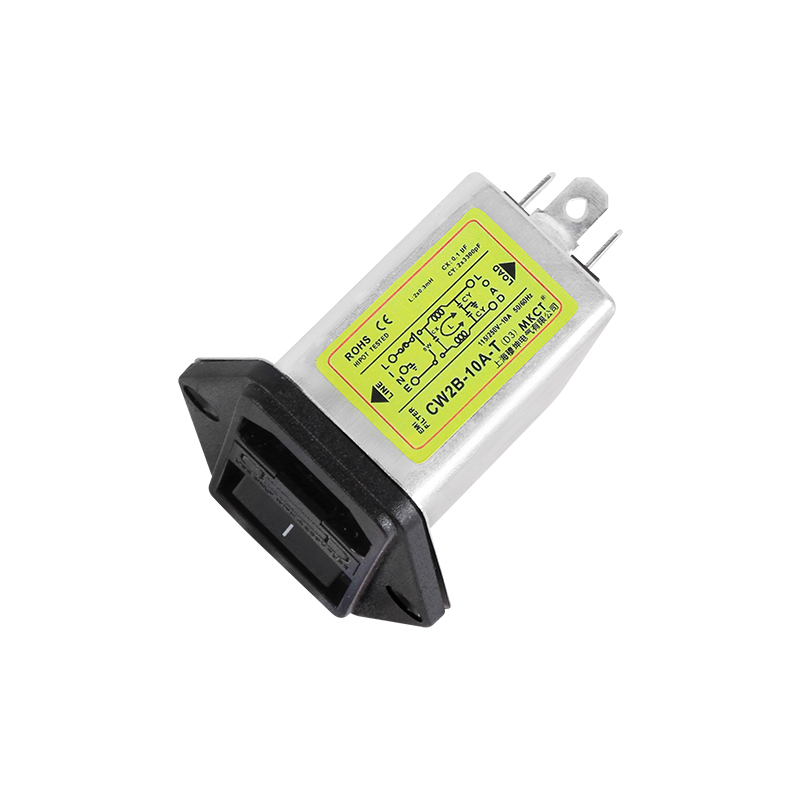

	CW2B-1A-T(D3)	IEC socket input	1A	Switch Single fuse
	CW2B-3A-T(D3)		3A
	CW2B-6A-T(D3)		6A
	CW2B-10A-T(D3)		10A
	CW2B-3A-T2(D3)		3A	Switch Double fuse
	CW2B-6A-T2(D3)		6A
	CW2B-10A-T2(D3)		10A

More details,please check the datasheets.
