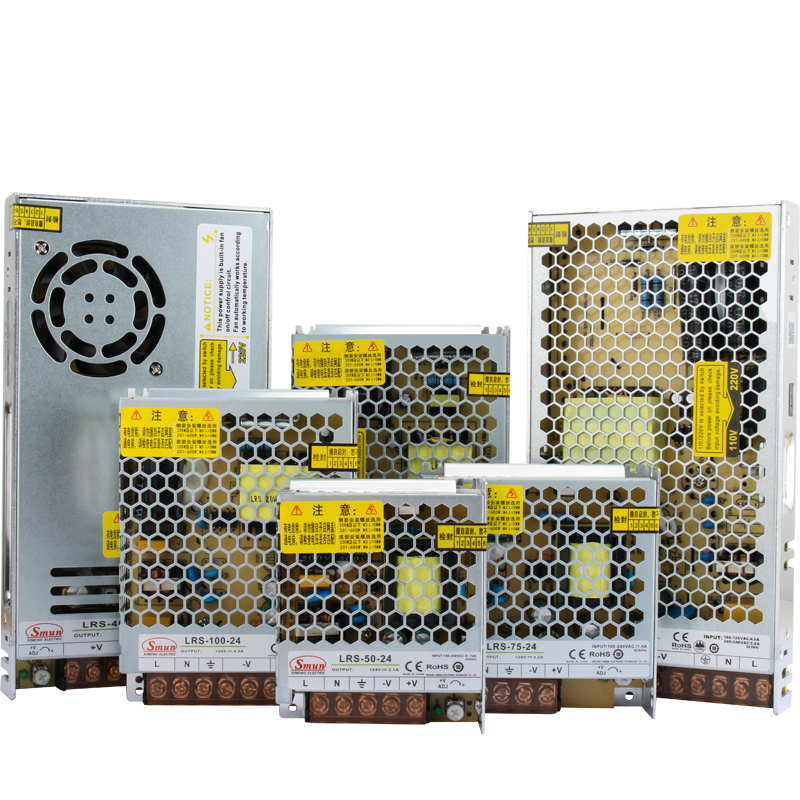

LRS Series 35W to 600W Thin Enclosed Switching Power Supply
The LRS series of ultra-thin switching power supplies: high-performance, low-profile power supplies designed for space-constrained applications such as industrial automation, LED displays, and electronic instruments. They feature high efficiency, low no-load power consumption, and excellent heat dissipation.
We offer the most comprehensive range of specifications, with power ratings covering35W/50W/60W/75W/100W/120W/150W/200W/250W/350W/400W/500W/600W, and supporting various DC output voltages including 5V/12V/15V/24V/36V/48V. Whether for 3D printers or industrial control equipment, the LRS series provides stable, safe, and cost-effective power support.
The LRS series is a high-power, single-output switch-mode power supply from SMUN, a trusted name in the industry. Offering a 35-600watt output capacity, this series is designed for applications that require a dependable and efficient DC power source. Key characteristics and benefits of the LRS include:
Series
Wattage
Input(VAC)
Output(VDC)
Cooling method
Size(mm)
Warranty
LRS-35
35
100-260
5,12,15,24,36,48
Air convection
99X82X30
3 years

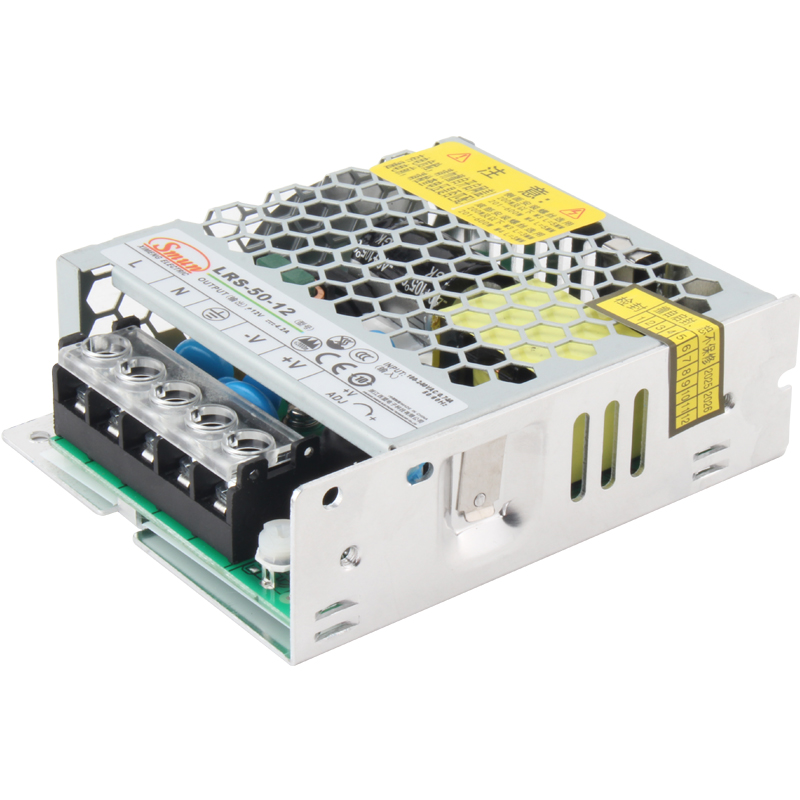

LRS-50
50
100-260
3.3,5,12,15,24,36,48
Air convection
99X82X30
LRS-60
60
100-260
3.3,5,12,15,24,36,48
Air convection
99X82X30

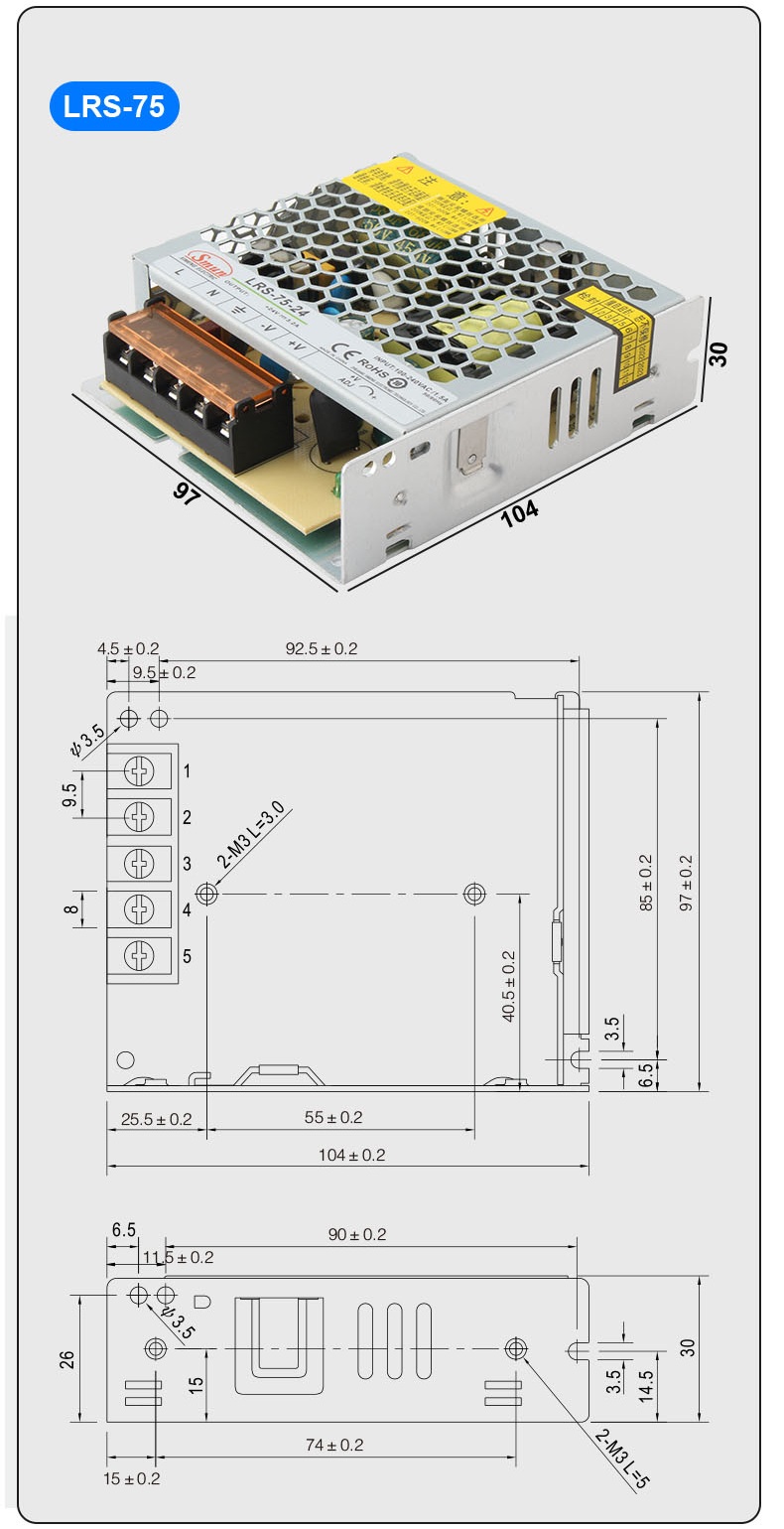

LRS-75
75
100-260
5,12,15,24,36,48
Air convection
99X97X30

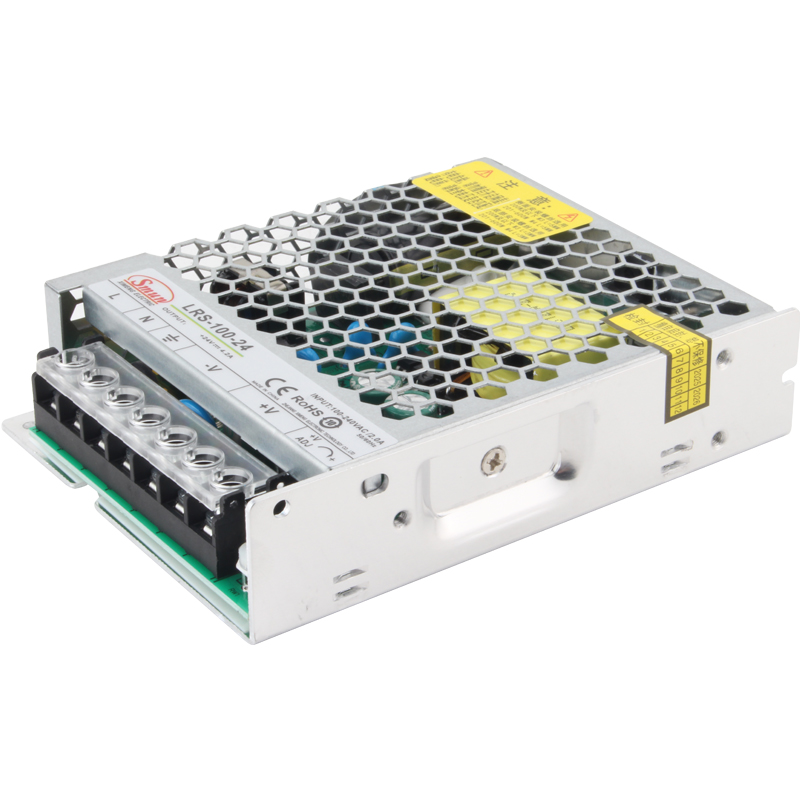

LRS-100
100
100-260
3.3,5,12,15,24,36,48
Air convection
129X97X30
LRS-120
120
100-260
3.3,5,12,15,24,36,48
Air convection
129X97X30
LRS-150
150
100-260
12,15,24,36,48
Air convection
159X97X30
LRS-200(X)
200
180-264
3.3,5,12,15,24,36,48
Air convection
159X97X30
LRS-200
200
90-132/180-264
3.3,5,12,15,24,36,48
Air convection
215X115X30

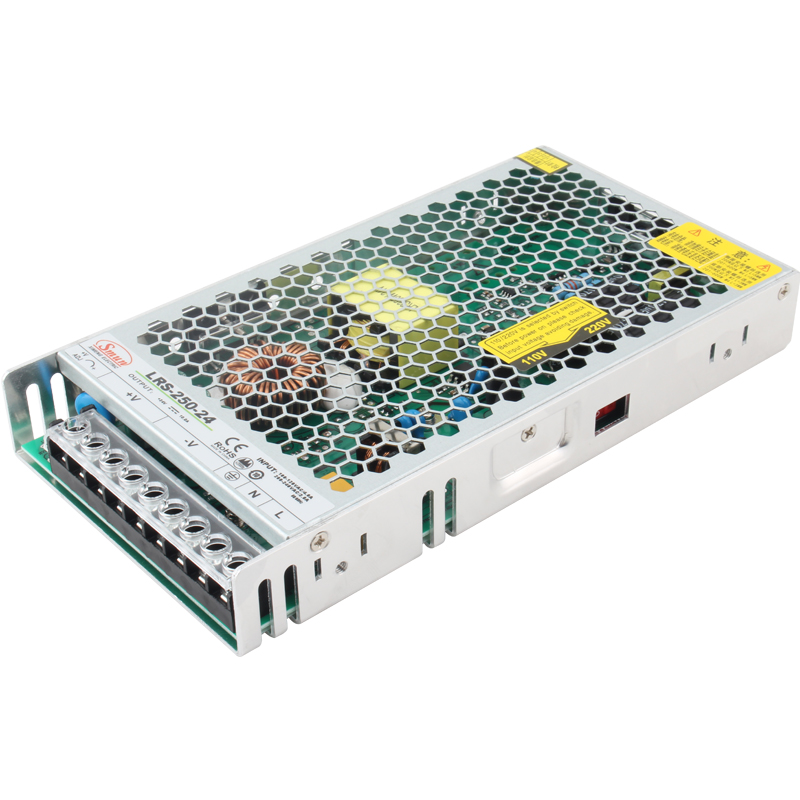

LRS-250
250
90-132/180-264
5,12,15,24,36,48
Air convection
215X115X30

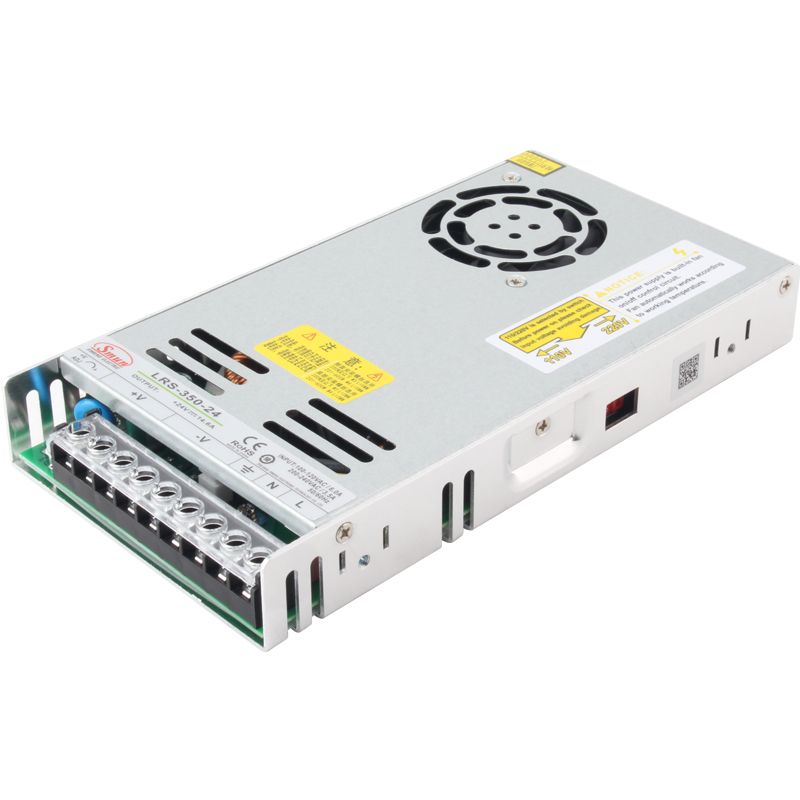

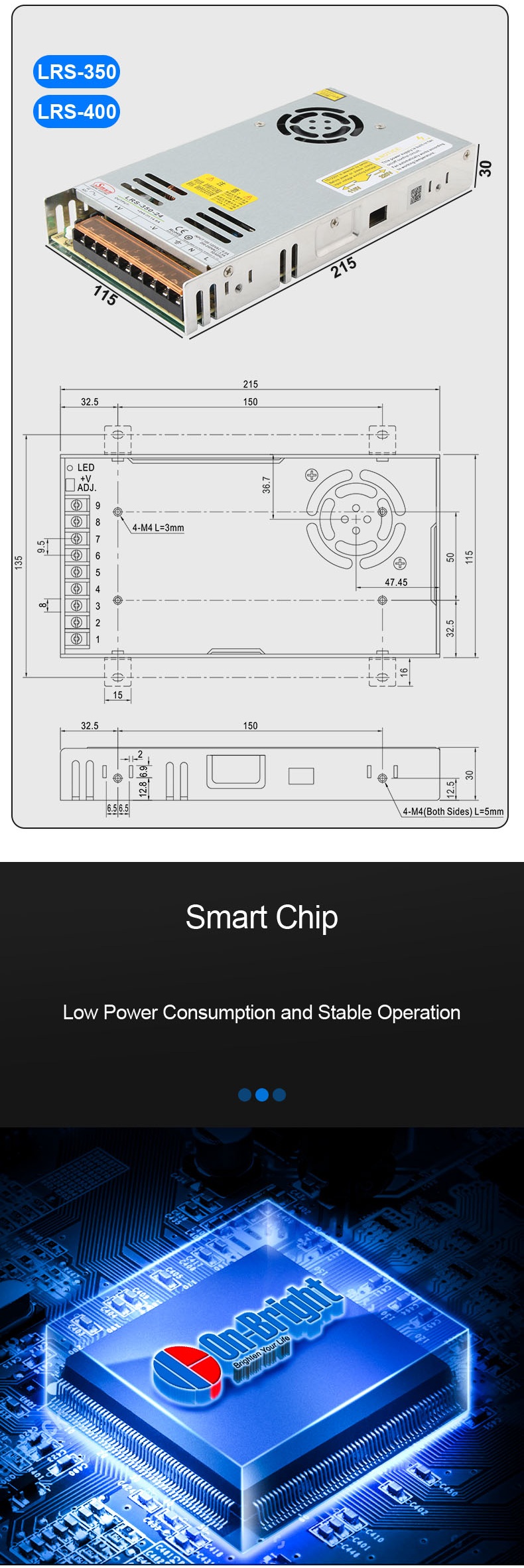

LRS-350
350
90-132/180-264
5,12,15,24,36,48
Fan
215X115X30
LRS-400
400
90-132/180-264
5,12,15,24,36,48
Fan
215X115X30
LRS-500(X)
500
90-132/180-264
12,15,24,36,48
Fan
215X115X30
LRS-600(X)
600
90-132/180-264
12,15,24,36,48
Fan
215X115X30
Applications:
The LRS switch-mode power supply, with its high power, stability, and wide applicability, is widely used in various industries and specific application scenarios. Here are some typical uses of the LRS:
Industrial Automation Control:
Serving as a reliable DC power source, the LRS is suitable for supporting various industrial automation equipment such as PLCs (Programmable Logic Controllers), servo drives, HMIs (Human-Machine Interfaces), sensors, and actuators, ensuring their smooth operation under complex working conditions.
Military Equipment & Scientific Instruments:
Given its high stability and wide input voltage adaptability, the LRS is employed in military hardware, laboratory test equipment, precision measurement instruments, and other applications where power quality demands are exceptionally stringent, ensuring device accuracy and reliability fluctuations.
LED Lighting Systems:
This power supply can provide a constant DC voltage for various LED luminaires and displays, ensuring uniform and flicker-free light output by mitigating brightness variations caused by power fluctuations.
Telecommunication Equipment & Power Infrastructure:
In telecommunication base stations, routers, switches, and power monitoring and protection devices, the LRS serves as a critical power component, providing a stable operating environment for electronic components and ensuring the smooth functioning of communication networks and power systems.
Medical & Home Appliance Devices:
For medical equipment (e.g., patient monitors, therapeutic devices) and household appliances (e.g., air purifiers, smart refrigerators), the delivers compliant, clean DC power, ensuring safe and efficient operation.
