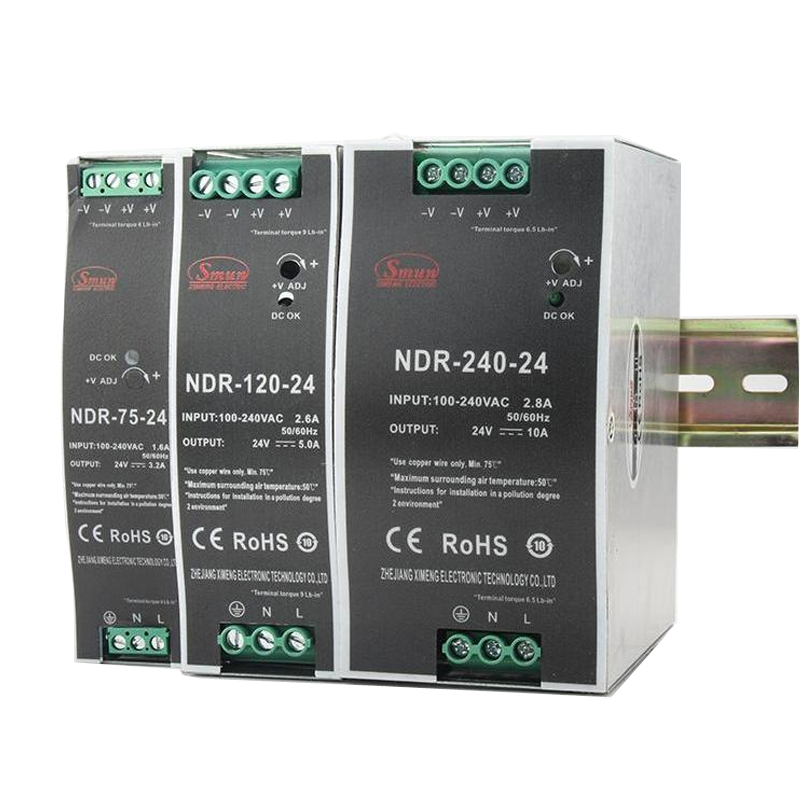

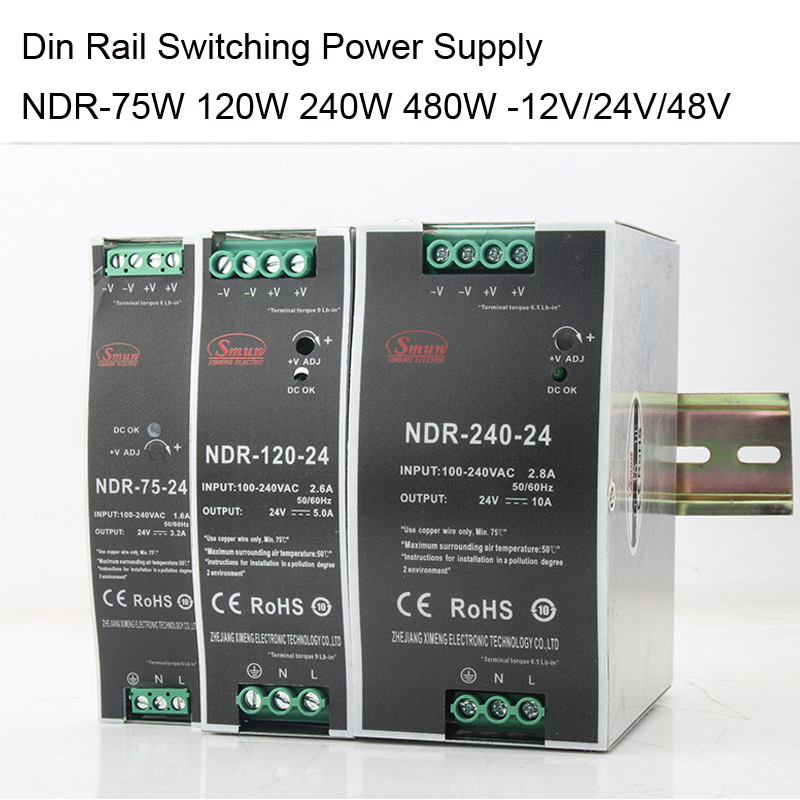

NDR Series 75W to 480W Single Output Din Rail Mounting Switching Power Supply
Wattage : 75W~480W Features : Metal case, economical models 1∅, 90~264Vac, full range input Slim size, model width: 32 ~ 85.5mm EMC EN55022 class B Assemble on industrial rail TS-35 / 7.5 or 15 3 years warranty
The NDR series is an industrial-grade DIN rail-mounted switch mode power supply designed specifically to cater to the power requirements of various industrial control and automation equipment. Characterized by its economical design and ultra-slim profile, this power supply is widely implemented in settings demanding efficient and reliable energy solutions.
Series
Wattage(W)
Input(VAC)
Output(VDC)
Cooling method
Size(mm)
Warranty(year)
PFC

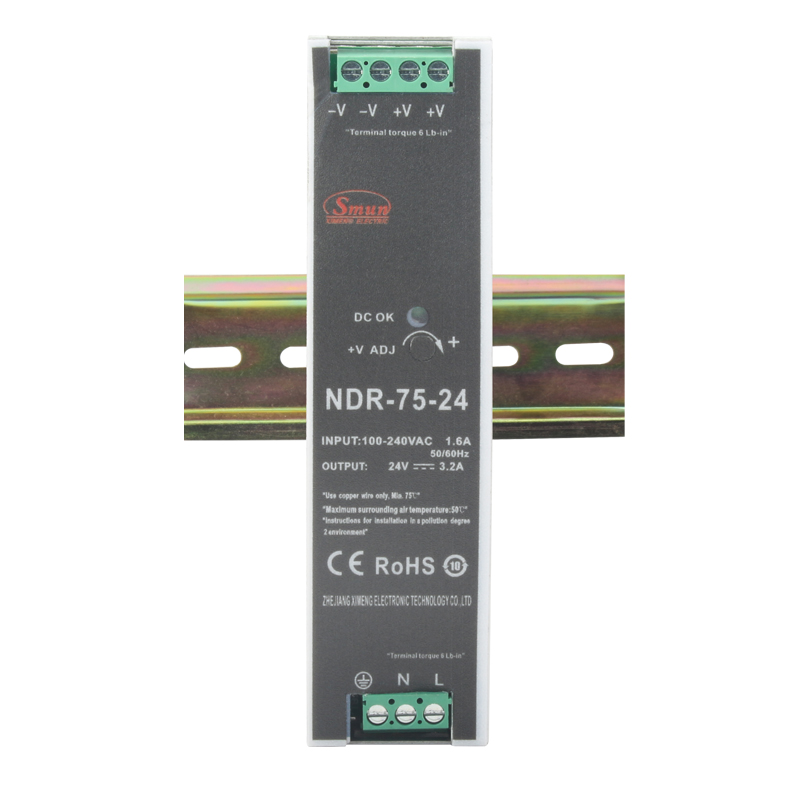

NDR-75
75
100-260
12,24,48
Air convection
32X125.2X102
3

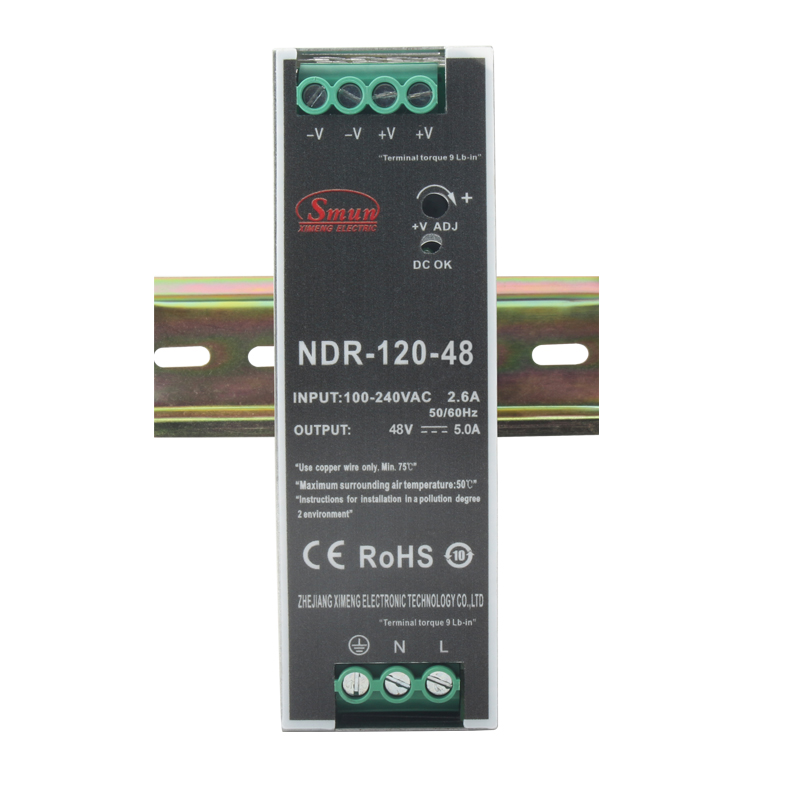

NDR-120
120
12,24,48
40X125.2X113.5

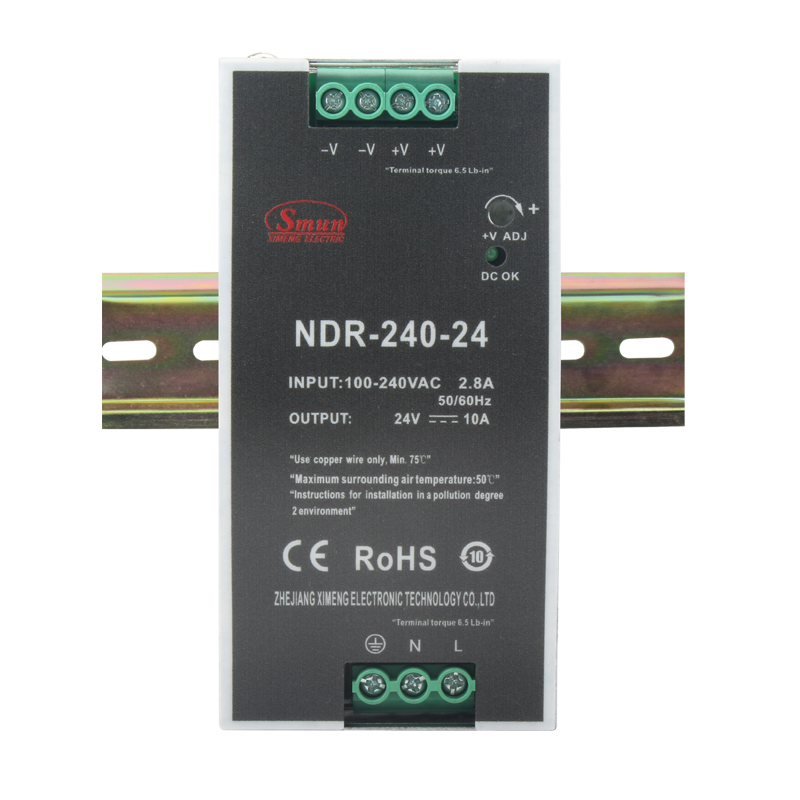

NDR-240
240
24,48
63X125.2X113.5
Yes

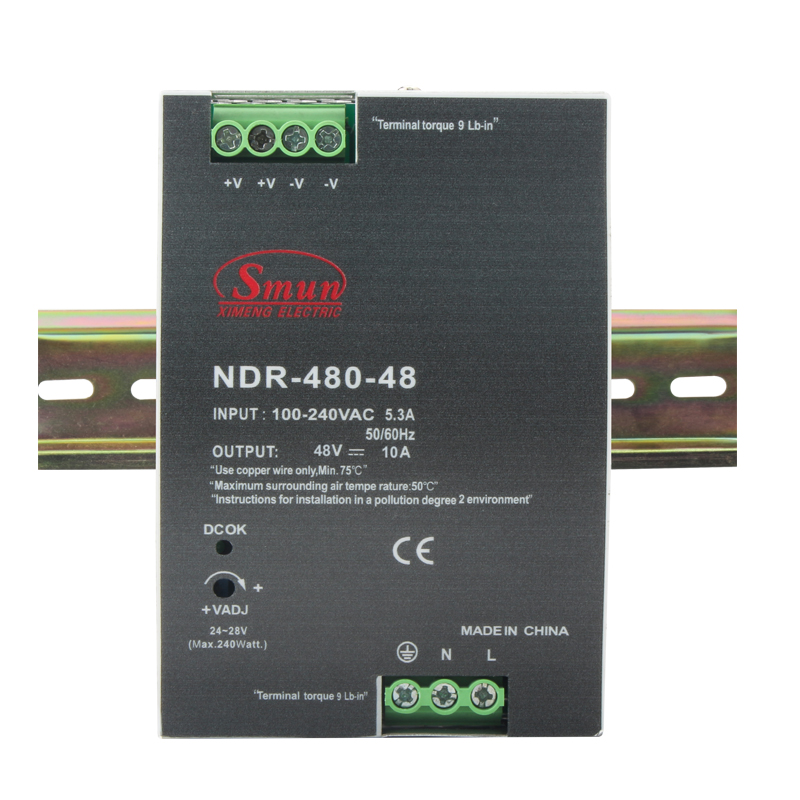

NDR-480
480
24,48
85.5X125.2X128.5
Yes
Features:
Universal Input: Accepts a full range of AC input voltages from 90Vac to 264Vac, facilitating global use across diverse electrical grids.
Energy Efficiency: Boasts an efficiency rate up to 89%, reducing energy consumption and operational costs while aligning with environmental standards.
Multiple Protection Mechanisms: Incorporates short circuit, overload, overvoltage, and overtemperature protections, ensuring both the power supply and connected equipment are safeguarded.
Passive Cooling: Employs a fanless design that relies on natural convection for cooling, minimizing noise and enhancing reliability.
Wide Operating Temperature: Functions stably within an ambient temperature range of -20°C to +70°C, suitable for harsh industrial environments.
Constant Current Overload Protection: Effectively protects the power supply from damage in the presence of inductive loads.
Extensive Certifications: Complies with UL 508 (for industrial control equipment) and additional international safety standards, attesting to its quality and safety.
Applications:
Industrial Automation:
Suited for PLCs, sensors, actuators, and other industrial control systems.
Instrumentation & Control Devices:
Provides stable power to measurement instruments and monitoring systems.
Communication Equipment:
Ideal for small-scale switches, routers, and surveillance systems.
Medical Devices:
Supports auxiliary power needs for equipment like mask machines and ventilators.
LED Lighting Control:
Efficiently powers LED drivers or control systems.
Description:
The NDR series is an industrial-grade DIN rail-mounted switch mode power supply designed specifically to cater to the power requirements of various industrial control and automation equipment. Characterized by its economical design and ultra-slim profile, this power supply is widely implemented in settings demanding efficient and reliable energy solutions.
Series
Wattage(W)
Input(VAC)
Output(VDC)
Cooling method
Size(mm)
Warranty(year)
PFC
NDR-75
75
100-260
12,24,48
Air convection
32X125.2X102
3
NDR-120
120
12,24,48
40X125.2X113.5
NDR-240
240
24,48
63X125.2X113.5
Yes
NDR-480
480
24,48
85.5X125.2X128.5
Yes
Features:
Universal Input: Accepts a full range of AC input voltages from 90Vac to 264Vac, facilitating global use across diverse electrical grids.
Energy Efficiency: Boasts an efficiency rate up to 89%, reducing energy consumption and operational costs while aligning with environmental standards.
Multiple Protection Mechanisms: Incorporates short circuit, overload, overvoltage, and overtemperature protections, ensuring both the power supply and connected equipment are safeguarded.
Passive Cooling: Employs a fanless design that relies on natural convection for cooling, minimizing noise and enhancing reliability.
Wide Operating Temperature: Functions stably within an ambient temperature range of -20°C to +70°C, suitable for harsh industrial environments.
Constant Current Overload Protection: Effectively protects the power supply from damage in the presence of inductive loads.
Extensive Certifications: Complies with UL 508 (for industrial control equipment) and additional international safety standards, attesting to its quality and safety.
Applications:
Industrial Automation:
Suited for PLCs, sensors, actuators, and other industrial control systems.
Instrumentation & Control Devices:
Provides stable power to measurement instruments and monitoring systems.
Communication Equipment:
Ideal for small-scale switches, routers, and surveillance systems.
Medical Devices:
Supports auxiliary power needs for equipment like mask machines and ventilators.
LED Lighting Control:
Efficiently powers LED drivers or control systems.
