Terminal Block Connection 10A/20A/30A Single Phase and Three Phase EMI Filter

Features:

Single phase:10A,20A,30A

Three phase:10A,20A,30A,40A

Features and benefits

-Compact size, fast and easy chassis mounting

-Various terminal connection styles

-Good conducted attenuation performance, surge pulse protection and radio frequency interference suppression is present

Typical applications

-Electrical and electronic equipment

-Medical and household equipment

-Automation, datacom and electronic data processing equipment

Schematic diagram	model	Specs	Current

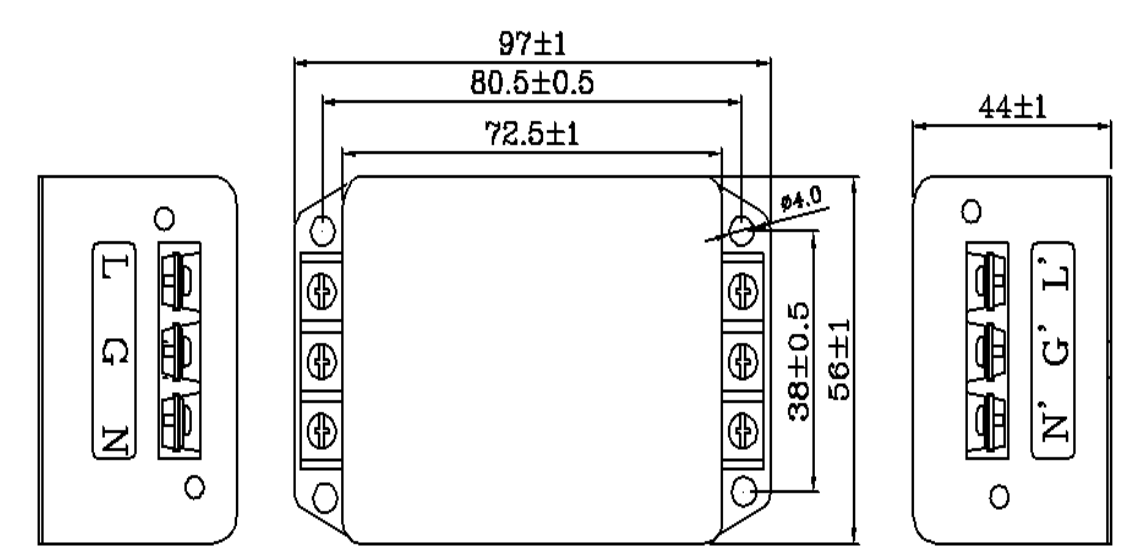

	CW4-10A-R	Terminal block single pole 220V	10A
	CW4-20A-R		20A

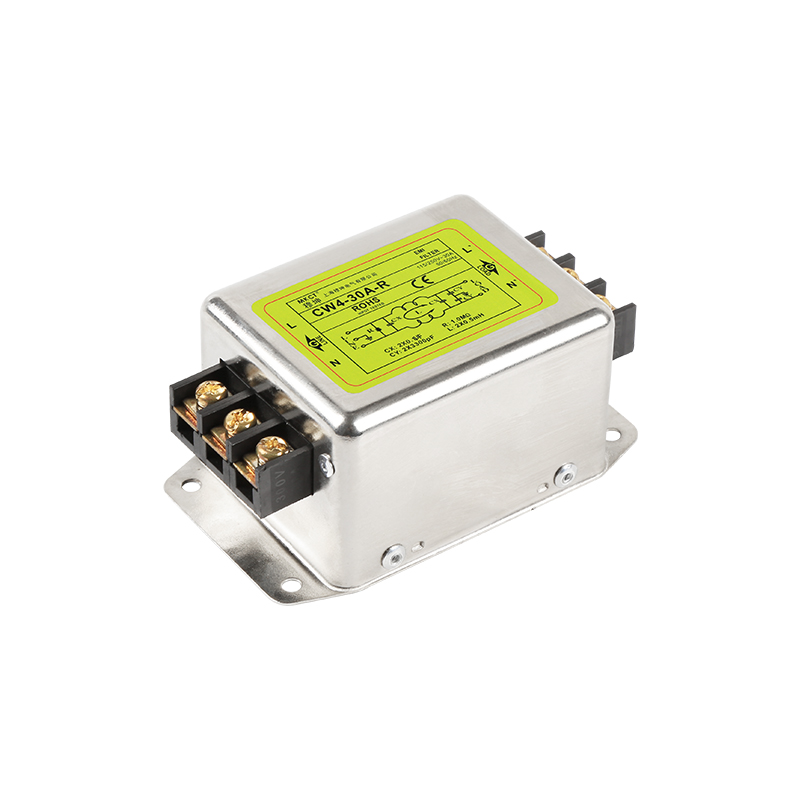

	CW4-30A-R		30A
	CW4L2-10A-R	Terminal block bipolar220V	10A
	CW4L2-20A-R		20A

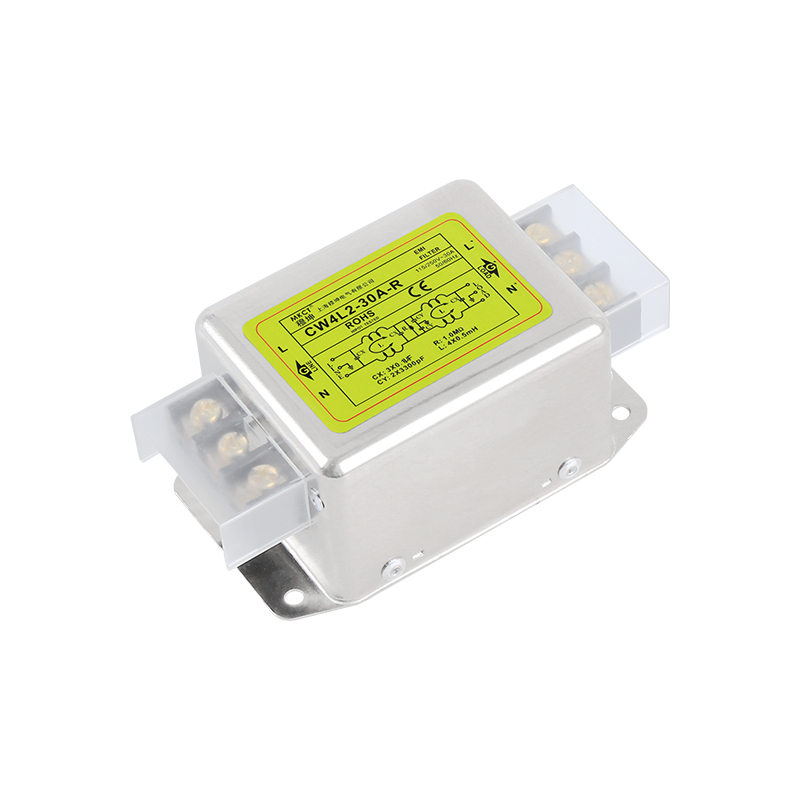

	CW4L2-30A-R		30A
	CW4-10A-RD	Terminal block with guide rail single pole 220V	10A
	CW4-20A-RD		20A
	CW4-30A-RD		30A

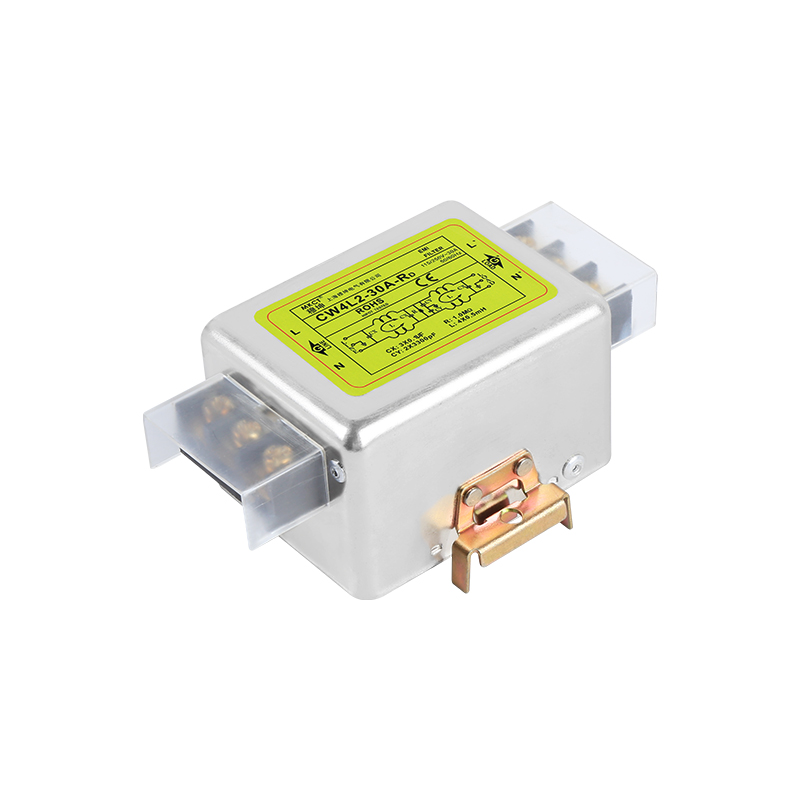

	CW4L2-10A-RD	Terminal block with guide rail bipolar220V	10A
	CW4L2-20A-RD		20A
	CW4L2-30A-RD		30A

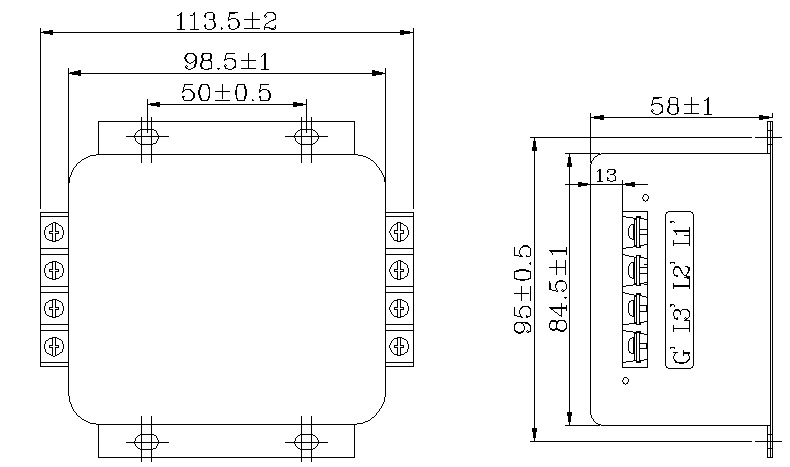

	CW12B-10A-R	Terminal block three-phase three-wire380V	10A
	CW12B-20A-R		20A
	CW12B-30A-R		30A

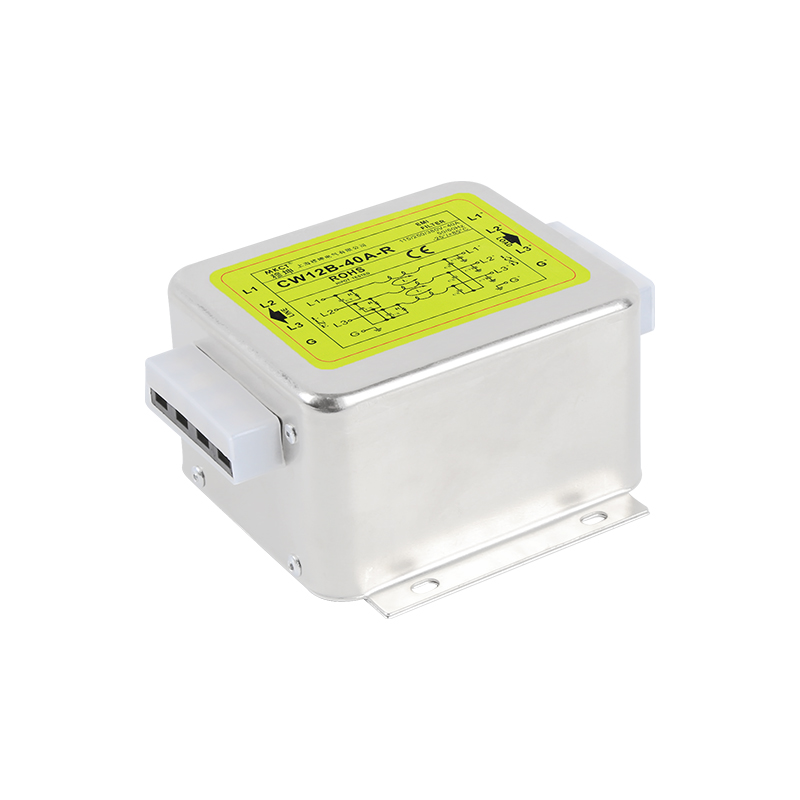

	CW12B-40A-R		40A

More details,please check the datasheets
