Performance loss in power electronics represents a severe, compounding business risk. It impacts battery life heavily. It reduces overall system reliability. It also increases thermal management complexities. Engineers often face a stark discrepancy between ideal datasheet efficiency and actual field deployment. Minor parasitic losses compound rapidly in compact designs. They also escalate in high-demand industrial setups. You might expect peak efficiency initially, but real-world variables quickly erode these margins. To fix this, you must move beyond basic product matching. We need to deeply evaluate component-level topologies. We must also scrutinize supplier testing methodologies closely. In this guide, you will learn the exact technical culprits causing efficiency drops in a dc dc converter. We will explore how thermal limits degrade system output. Finally, you will discover how to read datasheets properly and vet a reliable supplier.

Key Takeaways

• Performance degradation is primarily driven by conduction losses (source resistance), switching inefficiencies, and thermal throttling in compact designs.

• Light-load scenarios often expose the highest efficiency drops; continuous efficiency curves are more critical than peak efficiency claims.

• Application-specific matching (e.g., step-up applications like a 12v 19v dc dc converter boost) dictates the baseline performance limitations.

• Choosing the right DC DC converter supplier involves auditing their testing protocols, thermal management data, and component consistency, not just unit pricing.

The Core Technical Culprits Behind Efficiency Drops

You must understand the physical limitations governing power conversion. This knowledge helps you ask suppliers precise technical questions during procurement. Technical clarity prevents costly integration mistakes later.

Conduction Losses and Source Resistance

Parasitic impedances constantly turn electrical power into waste heat. Trace resistance on your printed circuit board restricts current flow naturally. Inductors possess direct current resistance (DCR). MOSFETs inherently have on-state resistance, known as RDS(on). When current flows, these elements consume power. We calculate this fundamental loss using the I⊃2;R formula. Higher currents multiply this loss exponentially. Source resistance represents a major efficiency killer. A poorly optimized power source drops voltage under heavy load. The DC DC converter then draws more current to maintain the required output power. This vicious cycle generates excessive heat. You must minimize trace lengths during board layout. Engineers should always select components featuring ultra-low DCR.

Switching Losses at High Frequencies

Engineers often increase switching frequencies to shrink passive components. Smaller inductors and capacitors save valuable board space. However, this design choice introduces severe trade-offs. Higher frequencies multiply gate charge losses. MOSFETs require energy to turn on and off. Faster switching cycles consume this energy more frequently. Transition overlaps also occur during each cycle. During these brief moments, voltage and current exist simultaneously across the switch. This overlap causes immense power dissipation. Hard switching topologies force transitions regardless of voltage levels. Conversely, soft switching topologies utilize resonance. They wait for zero voltage or zero current before switching. This intelligent method drastically reduces transition waste.

The Light-Load Inefficiency Trap

Many systems spend hours sitting in standby modes. Converters operating well below their rated load face harsh efficiency penalties. Switching losses remain relatively constant regardless of the actual output load. At light loads, these constant losses dominate the total power consumption. A converter boasting 95% peak efficiency might drop to 60% during standby. You cannot ignore this behavior for battery-powered devices. Pulse Frequency Modulation (PFM) solves this issue effectively. PFM reduces the switching frequency when demand drops. Eco-modes skip unnecessary pulses entirely. They keep the output capacitor charged while minimizing switching events. You should demand these advanced control modes for modern power systems.

How Thermal Constraints Degrade System Output

Overheating causes premature system failure. It forces you to implement expensive external cooling solutions. You must evaluate thermal management strategies upfront to ensure reliability.

The Vicious Cycle of Heat and Resistance

Temperature directly impacts electrical resistance. As a component heats up, its internal resistance increases. A MOSFET running at 100°C has a significantly higher RDS(on) than at 25°C. Higher resistance generates more heat under the exact same current load. This physical reality creates a dangerous feedback loop. Compact designs trap heat easily. They lack adequate airflow. They also lack sufficient thermal mass. Without proper heat sinks, this cycle triggers thermal runaway. Components eventually exceed their maximum junction temperatures. They fail catastrophically shortly after. You must design adequate thermal pathways to break this destructive cycle.

Thermal Derating in Real-World Applications

Datasheets often highlight performance at a 25°C ambient lab temperature. Real-world environments rarely maintain this ideal condition. Industrial enclosures easily exceed 70°C. You cannot rely on baseline laboratory data. Manufacturers implement thermal derating to protect their devices. They program the controller to intentionally drop output power as temperatures climb. This preventative action stops permanent silicon damage. A 100W converter might only deliver 60W in a hot environment. Some units feature hard thermal shutdowns. They turn off completely until the temperature normalizes. You must review derating curves closely. Ensure the device delivers necessary power at your maximum ambient temperature.

Decoding DC DC Converter Specifications to Expose Hidden Losses

Protect your project timeline and budget. Learn to critically analyze DC DC converter specifications. You must separate marketing claims from guaranteed operational baselines.

• Peak vs. Nominal Efficiency: Marketing materials always highlight peak efficiency. This number usually occurs around 50% to 70% of the maximum load. Your system rarely operates exactly at this sweet spot constantly. You must evaluate the full efficiency curve. Map this curve against your specific load range. Sustained nominal efficiency dictates actual thermal performance.

• Ripple and Noise Allowances: All switching converters generate some output ripple. High voltage ripple destabilizes sensitive downstream electronics. It introduces errors in analog-to-digital conversions. Evaluate the peak-to-peak noise specifications carefully. Ensure they align perfectly with your load requirements. Excessive ripple often forces you to add bulky external LC filters. These filters introduce additional DCR losses.

• Transient Response Times: Systems frequently experience sudden load changes. A processor waking from sleep draws massive current instantly. The converter must respond quickly. Slow transient responses cause severe voltage sags. These sags can trigger unexpected system resets. Review the load step data. Look for minimal voltage deviation during 25% to 75% load transitions.

Table 1: Specification Evaluation Matrix

Topology Alignment: Minimizing Loss in Specific Applications

Applying a generic converter to a specialized voltage requirement guarantees performance bottlenecks. Topology selection dictates your ultimate efficiency ceiling.

Matching Input/Output Ratios

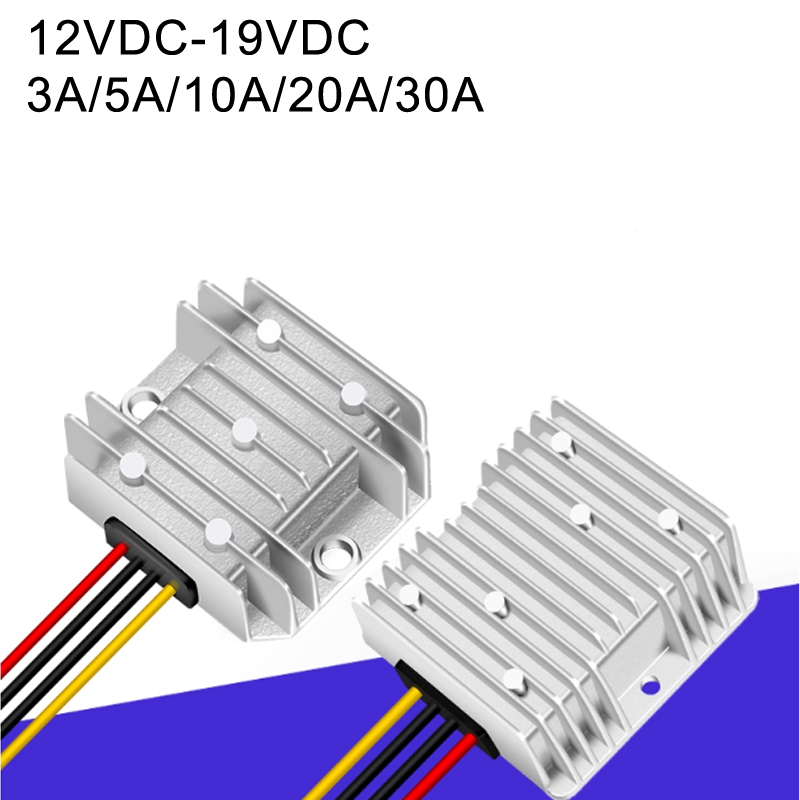

Extreme voltage differentials stress power components heavily. A large gap between input and output limits the operational duty cycle. Very narrow or very wide duty cycles reduce efficiency drastically. Consider deploying a 12v 19v dc dc converter boost for industrial IT or automotive applications. This specific ratio requires a well-optimized boost topology. The inductor must handle high peak currents efficiently. If the duty cycle hits extreme limits, switching losses dominate the circuit. Application-specific matching prevents these inherent bottlenecks completely.

Synchronous vs. Asynchronous Rectification

Traditional asynchronous converters use Schottky diodes for rectification. Diodes have a fixed forward voltage drop. At high currents or low output voltages, this drop wastes massive energy. Synchronous converters replace these diodes with actively controlled MOSFETs. MOSFETs offer ultra-low on-resistance. They eliminate the fixed diode penalty entirely. Synchronous designs cost slightly more to manufacture. However, they easily reclaim 2% to 5% efficiency at lower voltages. You should justify this cost for thermally constrained projects.

Isolation Requirements

Many industrial standards mandate strict galvanic isolation. Medical and heavy industrial systems require distinct safety barriers. Isolated converters use transformers instead of simple inductors. Transformers introduce a distinct performance tax. They suffer from core losses. They also suffer from leakage inductance. This inherent inefficiency drops overall performance compared to non-isolated designs. You must determine if isolation is legally or functionally required. If not, choose a non-isolated topology to maximize overall efficiency.

Chart 1: Topology Efficiency Comparison

Vetting a DC DC Converter Supplier for Long-Term Reliability

The best specification sheet is worthless if the manufacturing process lacks consistency. Vendor selection acts as a critical risk mitigation strategy.

Testing and Validation Transparency

A reliable DC DC converter supplier provides comprehensive test data openly. Do not accept basic room-temperature datasheets. Demand detailed load transient data. Request full EMI/EMC compliance reports. You should also ask for thermal imaging data taken at full load. This transparency proves their engineering rigor. It verifies the converter performs safely under stress. Poor documentation usually hides severe thermal or stability flaws.

Component Provenance

Supply chain shortages force many factories to swap sub-tier components. They might replace a high-quality capacitor with a cheaper alternative. These localized swaps degrade performance subtly. The overall unit might still function, but efficiency drops noticeably. You must audit your vendor's bill of materials (BOM) control procedures. Ensure they have strict change-notification policies in place. Consistent component provenance guarantees consistent field reliability.

Customization vs. COTS (Commercial Off-The-Shelf)

Engineers often force COTS modules into incompatible systems. This approach compromises thermal layouts and efficiency. Sometimes, a slightly modified standard product yields better results. Vendors can adjust output voltages or optimize control loops for your exact load. Evaluate if a custom tweak improves systemic efficiency. The initial engineering cost often pays for itself through reduced thermal management expenses later.

Conclusion

Performance loss rarely stems from a single point of failure. It usually results from a combination of mismatched topologies, overlooked thermal limits, and unverified datasheets. Addressing these factors ensures your final design operates flawlessly.

Take these actionable next steps before finalizing your component selection:

1. Map your exact load profiles carefully, including sleep modes and peak transients.

2. Define your maximum ambient thermal environment accurately.

3. Evaluate continuous efficiency curves instead of relying on peak marketing claims.

4. Audit vendor testing protocols and demand transparent thermal data.

Do not leave your system performance to chance. Contact an application engineer today. Request specific testing data and physical evaluation boards. You must validate these efficiency claims in your exact use case before moving to mass production.

FAQ

Q: Why is my DC DC converter efficiency lower than the datasheet claims?

A: Datasheets often highlight peak efficiency at an ideal load (typically 50-70%) under controlled lab temperatures. Real-world performance drops due to source resistance, higher ambient heat, or operating primarily in light-load conditions.

Q: How does switching frequency affect performance loss?

A: Higher switching frequencies allow for smaller inductors and capacitors (saving space) but proportionally increase switching losses in the MOSFETs, generating more heat and lowering overall efficiency.

Q: What should I look for in DC DC converter specifications to prevent overheating?

A: Look beyond maximum operating temperature. Focus on the thermal derating curve to see how much power the unit can actually deliver at your specific ambient temperature without active cooling.

Q: Can a 12v 19v dc dc converter boost operate efficiently at full load continuously?

A: Yes, provided it utilizes synchronous rectification and is housed in an enclosure with adequate thermal dissipation. However, continuous maximum load operation leaves no headroom for transients, potentially shortening the component's lifespan.
