Bolt Connection 250VAC Single-phase 50/60Hz 380VAC Three-phase EMI Anti-interference Filter

Features and benefits

-Compact size, fast and easy chassis mounting

-Various terminal connection styles

-Good conducted attenuation performance, surge pulse protection and radio frequency interference suppression is present

Schematic diagram	model	Specs	Current

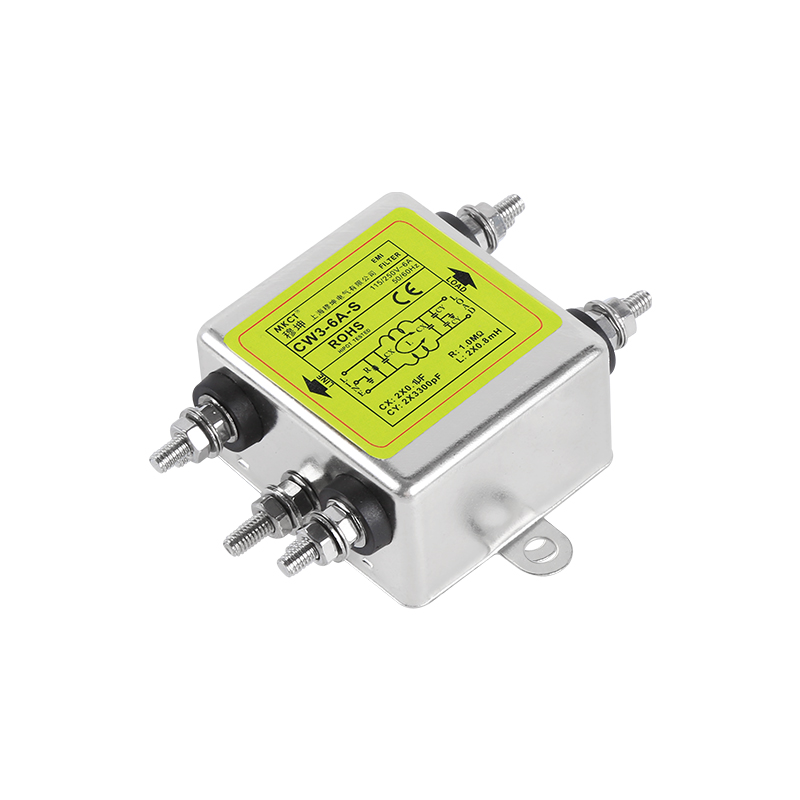

	CW3-3A-S	bolted single pole	3A
	CW3-6A-S		6A
	CW3-10A-S		10A
	CW3-20A-S		20A
	CW3L2-3A-S	bolted bipolar	3A
	CW3L2-6A-S		6A
	CW3L2-10A-S		10A
	CW3L2-20A-S		20A

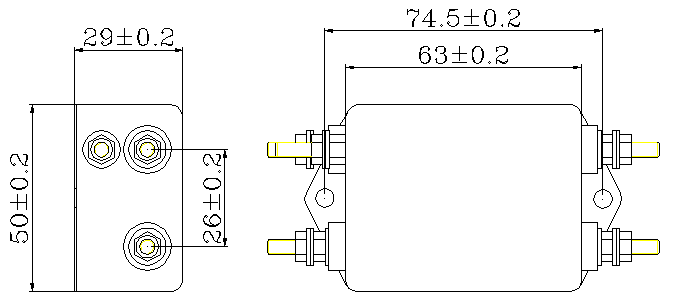

	CW4-3A-S	bolted single pole	3A
	CW4-6A-S		6A
	CW4-10A-S		10A
	CW4-20A-S		20A
	CW4-30A-S		30A
	CW4L2-3A-S	bolted bipolar	3A
	CW4L2-6A-S		6A
	CW4L2-10A-S		10A
	CW4L2-20A-S		20A
	CW4L2-30A-S		30A

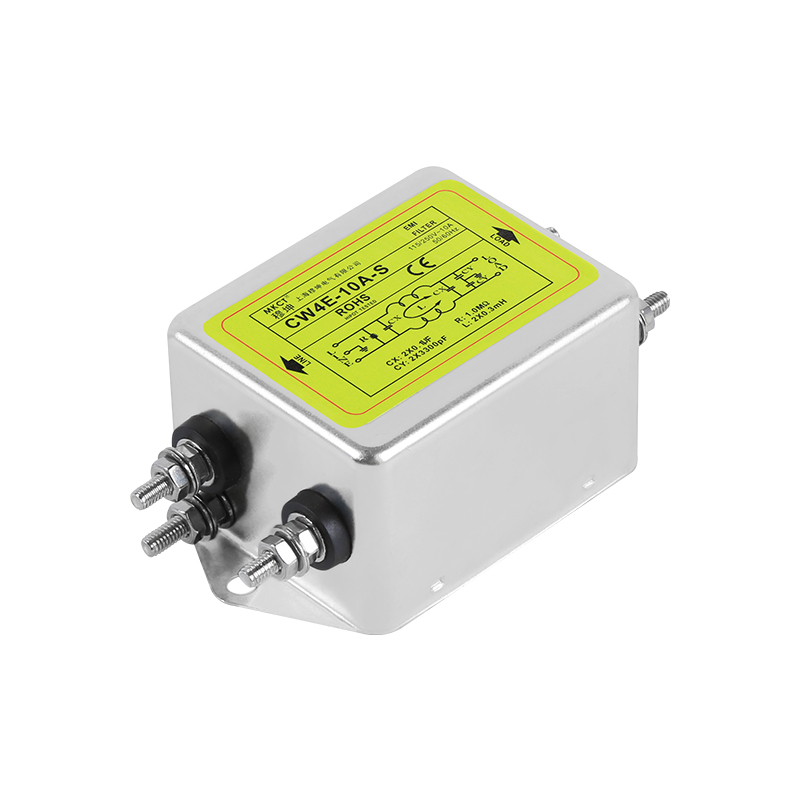

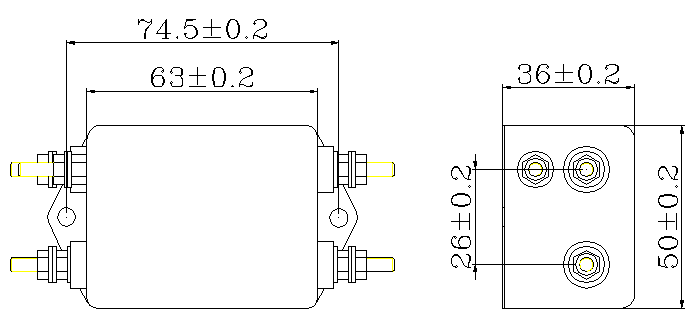

	CW4E-3A-S	bolted single pole	3A
	CW4E-6A-S		6A
	CW4E-10A-S		10A
	CW4E-20A-S		20A
	CW4E-30A-S		30A
	CW4E-40A-S		40A
	CW4EL2-3A-S	bolted bipolar	3A
	CW4EL2-6A-S		6A
	CW4EL2-10A-S		10A
	CW4EL2-20A-S		20A
	CW4EL2-30A-S		30A

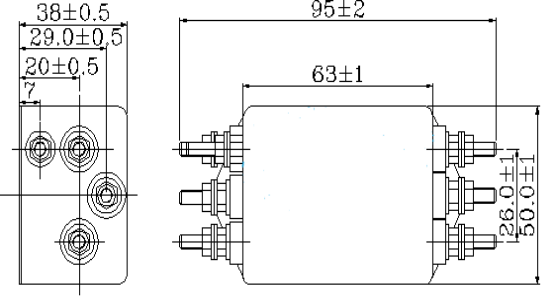

	CW4B-10A-S	Bolt type three-phase three-wire 380V	10A
	CW4B-20A-S		20A
	CW4B-30A-S		30A
	CW4B-40A-S		40A
	CW12B-10A-S	Bolt type three-phase three-wire380V	10A
	CW12B-20A-S		20A
	CW12B-30A-S		30A
	CW12B-40A-S		40A
	CW12B-50A-S		50A
	CW12B-60A-S		60A

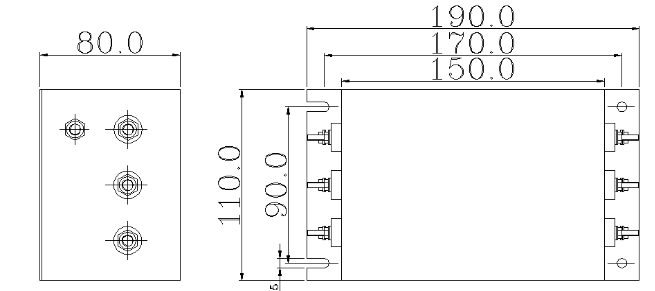

	CW6B-80A-S	Bolt type three-phase three-wire380V	80A
	CW6B-200A-S		200A

More details,please check the datasheets.
